05830-01Toggle clamps latch vertical with catch plate |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel.Version:Electro zinc-plated steel.
Bright stainless steel.
Plastic handle, oil-resistant.Note:Latch toggle clamps are especially suitable for quickly closing and locking covers and hatches.
The travel can be set by altering the hasp length.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

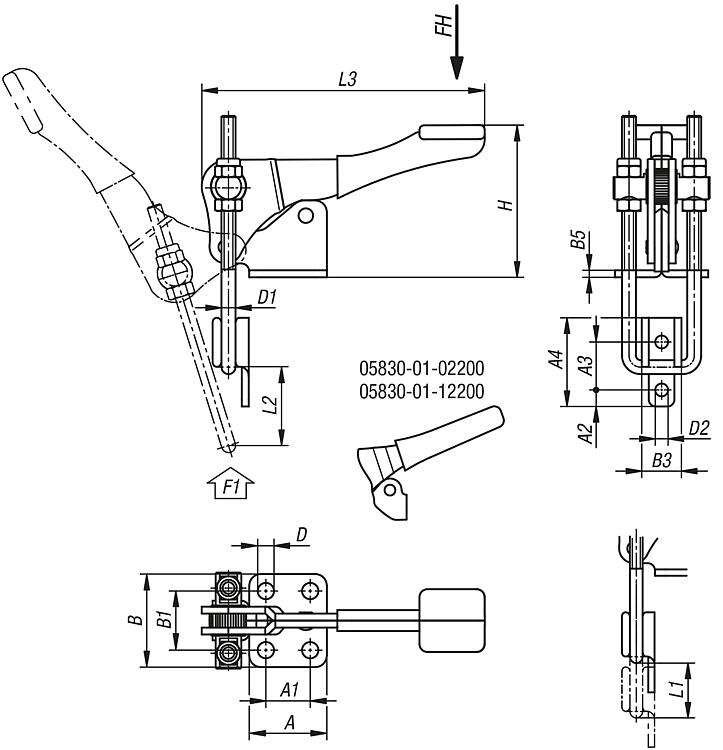

| Order No. | Main
material | Hand
force
FH N | Traction
force
F1 N | A
| A1 | A2 | A3 | A4 | B | B1 | B3 | B5 | D | D1 | D2 | H | L1 | Clamping
travel
L2 | L3 | CAD | Acc. | Price | Order |
|---|
| 05830-01-02200 | steel | 100 | 2200 | 26 | 13 | 4 | 14,3 | 25,4 | 35 | 22 | 13,5 | 2 | 5,3 | 4 | 4,4 | 55 | 12,2 | 38 | 81 |  | | 21.36 € | | | 05830-01-04500 | steel | 150 | 4500 | 33,3 | 19,1 | 7,1 | 20,6 | 38,1 | 40 | 25,4 | 17 | 3 | 7,1 | 6 | 5,6 | 65,4 | 20,3 | 50 | 121,5 | | | 27.91 € | | | 05830-01-07000 | steel | 200 | 9000 | 47,6 | 31,8 | 9,5 | 27 | 54 | 53 | 36,5 | 30 | 4 | 8,7 | 8 | 8,7 | 85,5 | 29,4 | 63 | 132,4 | | | 45.59 € | | | 05830-01-12200 | stainless steel | 100 | 2200 | 26 | 13 | 4 | 14,3 | 25,4 | 35 | 22 | 13,5 | 2 | 5,3 | 4 | 4,4 | 55 | 12,2 | 38 | 81 | | | 43.65 € | | | 05830-01-14500 | stainless steel | 150 | 4500 | 33,3 | 19,1 | 7,1 | 20,6 | 38,1 | 40 | 25,4 | 17 | 3 | 7,1 | 6 | 5,6 | 65,4 | 20,3 | 50 | 121,5 | | | 61.61 € | | | 05830-01-17000 | stainless steel | 200 | 9000 | 47,6 | 31,8 | 9,5 | 27 | 54 | 53 | 36,5 | 30 | 4 | 8,7 | 8 | 8,7 | 92 | 29,4 | 63 | 132,4 | | | 108.57 € | |
