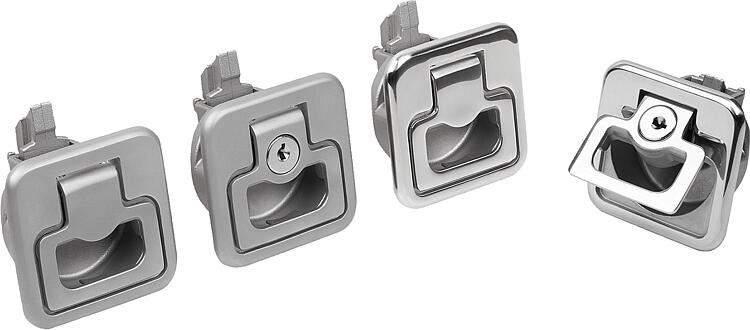

05596-05Snap locks stainless steel with grip, fold-down |
go back |
|
|
DescriptionMaterial:Stainless steel 1.4401. Version:Ground and polished or matt abrasive blasted.Note:With their countersunk grip, these snap locks are designed for flush installation in doors, hatches and covers.
Available in two different sizes for different door leaf thicknesses. Additional security with lockable variants. The locks have a single key system, all locks can be opened with the same key.
The pre-tensioned grip prevents rattling.
Max. torque to tighten the screws: 2.4 Nm.
Form A: lockable
Form B: not lockableType of operation:When the grip is pulled, the latch retracts and the door can be opened. The door latches automatically when pushed shut. The latch can also be actuated from the rear.Application:- Automotive industries
- Machine construction
- Boat and ship building
- Aviation and aerospace
- Motorhomes and caravans
- Medical technologyAssembly:1. Produce a mounting cutout as shown in the drawing.
2. Attach the catch plate.

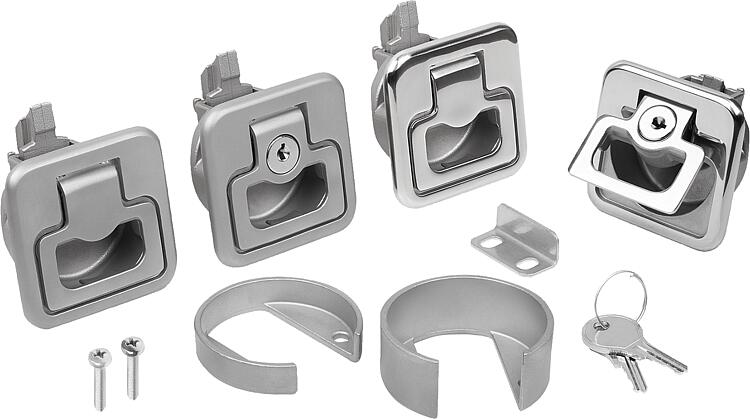

3. Secure from the rear using the mounting parts supplied.Supplied withMounting bracket with M4 screws and catch plate.
The lockable snap locks are each supplied with 2 keys.

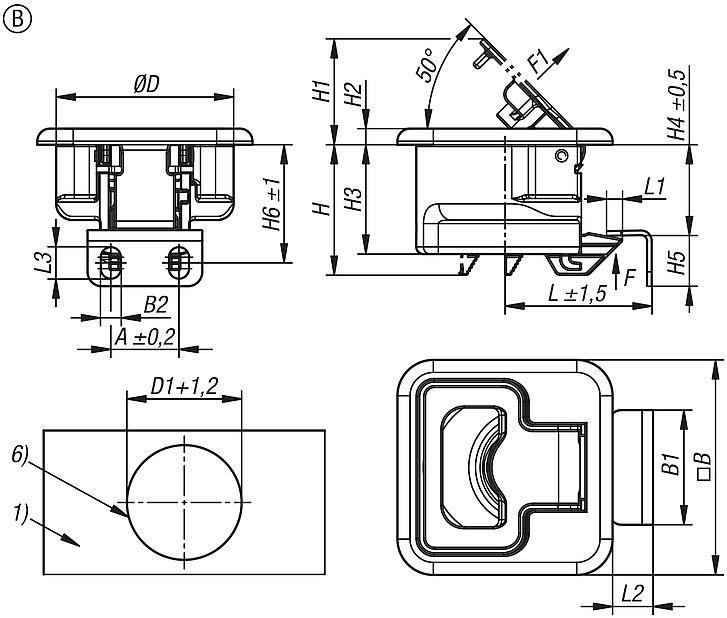

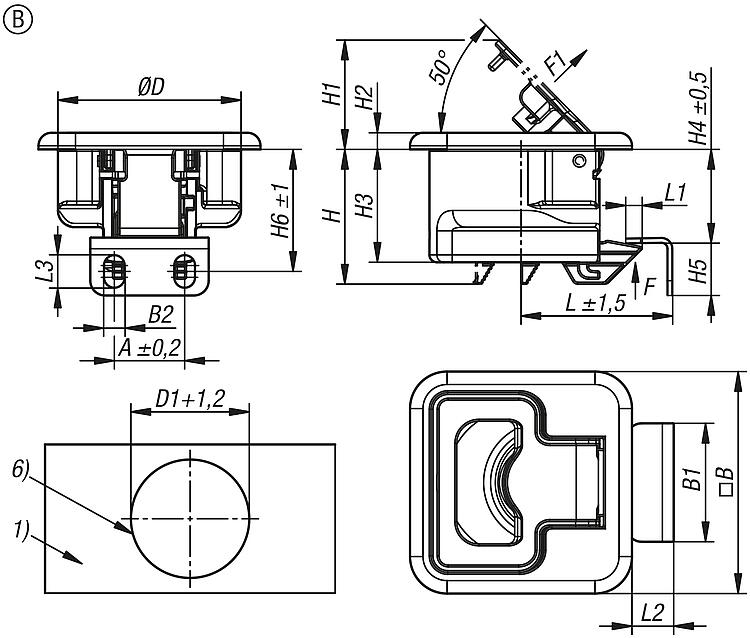

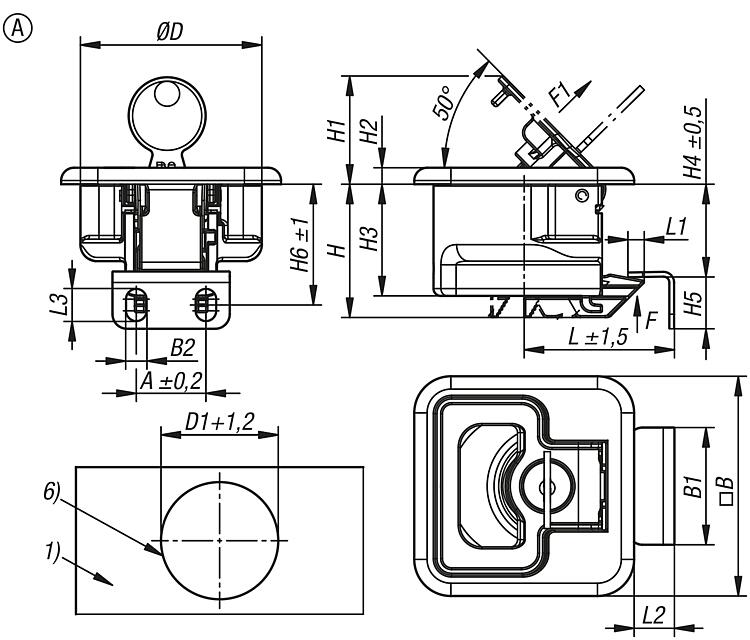

M5 screws for the catch plate are not supplied.Drawing reference:1) Door leaf
2) Frame
3) Grip
4) Catch plate
5) Mounting bracket thickness (see Table H7)
6) Mounting cutout DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

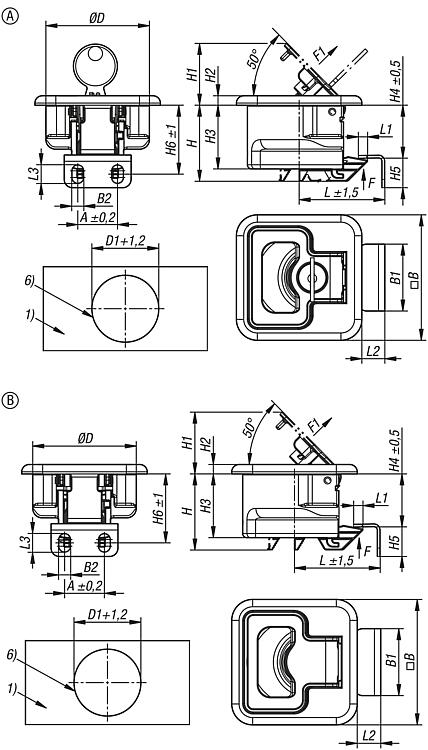

Drawings (total overview) |
| Order No. | Form | Form definition | Surface finish
body | A
| B | B1 | B2 | D | D1 | D2 | H | H1 | H2 | H3 | H4 | H5 | H6 | H7 | CAD | Acc. | Price | Order |
|---|
| 05596-05-1102356044 | A | lockable | polished | 19 | 60 | 32 | 5,4 | 49,5 | 50 | 4,5 | 35,9 | 31,1 | 4,5 | 30,5 | 25,5 | 14 | 33 | 23 |  | | 87.68 € | | | 05596-05-1112356044 | A | lockable | polished | 19 | 60 | 32 | 5,4 | 49,5 | 50 | 4,5 | 35,9 | 31,1 | 4,5 | 30,5 | 25,5 | 14 | 33 | 12,5 | | | 87.68 € | | | 05596-05-1102356055 | A | lockable | matt blasted | 19 | 60 | 32 | 5,4 | 49,5 | 50 | 4,5 | 35,9 | 31,1 | 4,5 | 30,5 | 25,5 | 14 | 33 | 23 | | | 87.68 € | | | 05596-05-1112356055 | A | lockable | matt blasted | 19 | 60 | 32 | 5,4 | 49,5 | 50 | 4,5 | 35,9 | 31,1 | 4,5 | 30,5 | 25,5 | 14 | 33 | 12,5 | | | 87.68 € | |
| Order No. | L
| L1 | L2 | L3 | F=retaining force (N) | Traction
force
F1 N | Temperature range
°C
| S = Door thickness
in mm | Screws | CAD | Acc. | Price | Order |
|---|
| 05596-05-1102356044 | 41 | 5,6 | 11 | 8,6 | 850 | 100 | -18 to 60 | 2-12 | M4x6 | | | 87.68 € | | | 05596-05-1112356044 | 41 | 5,6 | 11 | 8,6 | 850 | 100 | -18 to 60 | 12-22 | M4x20 | | | 87.68 € | | | 05596-05-1102356055 | 41 | 5,6 | 11 | 8,6 | 850 | 100 | -18 to 60 | 2-12 | M4x6 | | | 87.68 € | | | 05596-05-1112356055 | 41 | 5,6 | 11 | 8,6 | 850 | 100 | -18 to 60 | 12-22 | M4x20 | | | 87.68 € | |
|
| Order No. | Form | Form definition | Surface finish
body | A
| B | B1 | B2 | D | D1 | D2 | H | H1 | H2 | H3 | H4 | H5 | H6 | H7 | CAD | Acc. | Price | Order |
|---|
| 05596-05-1002356044 | B | not lockable | polished | 19 | 60 | 32 | 5,4 | 49,5 | 50 | 4,5 | 35,9 | 31,1 | 4,5 | 30,5 | 25,5 | 14 | 33 | 23 | | | 74.00 € | | | 05596-05-1012356044 | B | not lockable | polished | 19 | 60 | 32 | 5,4 | 49,5 | 50 | 4,5 | 35,9 | 31,1 | 4,5 | 30,5 | 25,5 | 14 | 33 | 12,5 | | | 74.00 € | | | 05596-05-1002356055 | B | not lockable | matt blasted | 19 | 60 | 32 | 5,4 | 49,5 | 50 | 4,5 | 35,9 | 31,1 | 4,5 | 30,5 | 25,5 | 14 | 33 | 23 | | | 74.00 € | | | 05596-05-1012356055 | B | not lockable | matt blasted | 19 | 60 | 32 | 5,4 | 49,5 | 50 | 4,5 | 35,9 | 31,1 | 4,5 | 30,5 | 25,5 | 14 | 33 | 12,5 | | | 74.00 € | |
| Order No. | L
| L1 | L2 | L3 | F=retaining force (N) | Traction
force
F1 N | Temperature range
°C
| S = Door thickness
in mm | Screws | CAD | Acc. | Price | Order |
|---|
| 05596-05-1002356044 | 41 | 5,6 | 11 | 8,6 | 850 | 100 | -18 to 60 | 2-12 | M4x6 | | | 74.00 € | | | 05596-05-1012356044 | 41 | 5,6 | 11 | 8,6 | 850 | 100 | -18 to 60 | 12-22 | M4x20 | | | 74.00 € | | | 05596-05-1002356055 | 41 | 5,6 | 11 | 8,6 | 850 | 100 | -18 to 60 | 2-12 | M4x6 | | | 74.00 € | | | 05596-05-1012356055 | 41 | 5,6 | 11 | 8,6 | 850 | 100 | -18 to 60 | 12-22 | M4x20 | | | 74.00 € | |
|
