DescriptionMaterial:Housing and fastening nut, stainless steel 1.4404.
Actuator 1.4401.
O-ring NBR.
Version:Bright.Note:The quarter turn lock can be installed pre-assembled.
For right or left use.
Water and dust protected acc. to IP65 to DIN EN 60529.
Please order required tongue version separately. Every tongue can be combined with every housing.
*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.Accessory:Key 05586.

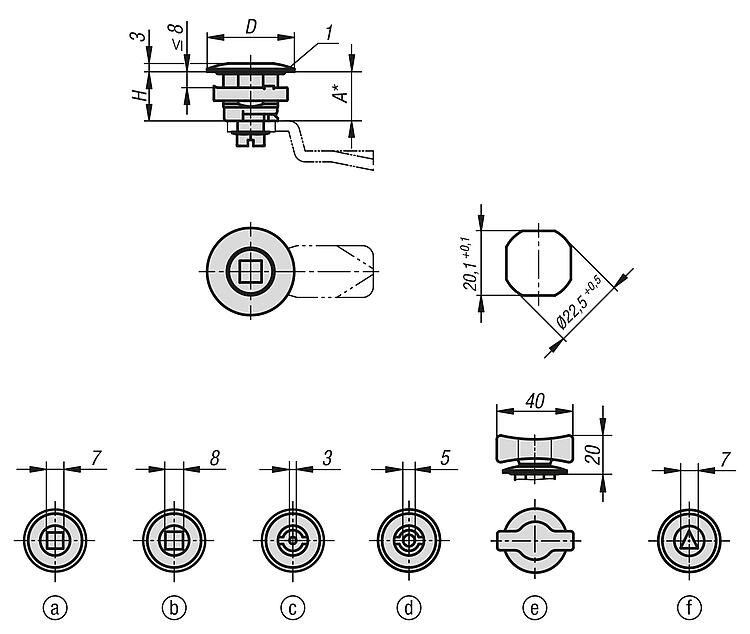

Tongue for stainless steel quarter-turn lock 05566-07.Drawing reference:Actuation:
a) square 7 mm
b) square 8 mm
c) double lug 3 mm
d) double lug 5 mm
e) T-grip
f) triangle 7 mm
1) O-ring
