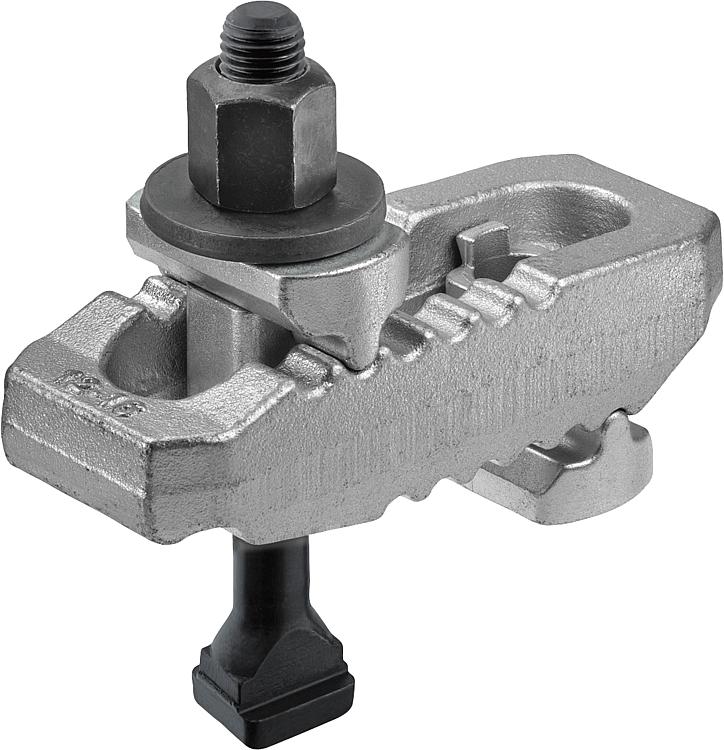

        Clamp straps, adjustable, Form B

Item description/product images

DescriptionMaterial:Steel.Version:Tempered and electro zinc-plated.
Complete with DIN 787 screw for T-slots, DIN 6340 washer and DIN 6330B nut.Note:These adjustable clamp straps can be quickly and infinitely adapted to the clamping situation. The clamp straps have different heel types both sides enabling the best end to be selected depending on the specific application. These extremely versatile clamp straps are suitable for use by metal cutting or non-cutting machining and also for press and injection-moulding applications.Accessory:04204 adjustable heel supportsSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04203_B Clamp straps, adjustable, Form B

260 kB

Drawings

Item selection/filter

Order No.	Form	Version 2	B	B1	D	E	H clamping range	H1	H2	H3	H4	L	L1	L2	Slot width	Fastening screw(s)	Clamping force kN	Price
04203-210115100	B	with T-slot nut	44	30	13	11	0-40	18	27	17	12	115	25	30	10	M10X100	25	83.48 €
04203-212115125	B	with T-slot nut	44	30	13	11	0-55	18	27	17	12	115	25	30	12	M12X125	30	84.94 €
04203-214115125	B	with T-slot nut	44	30	13	11	0-55	18	27	17	12	115	25	30	14	M12X125	30	86.40 €
04203-212150160	B	with T-slot nut	55	41	17	12	0-70	20	36	21	17	150	35	36	12	M12X160	35	99.58 €
04203-214150160	B	with T-slot nut	55	41	17	12	0-70	20	36	21	17	150	35	36	14	M12X160	35	102.51 €
04203-216150160	B	with T-slot nut	55	41	17	12	0-70	20	36	21	17	150	35	36	16	M16X160	40	105.46 €
04203-218150160	B	with T-slot nut	55	41	17	12	0-70	20	36	21	17	150	35	36	18	M16X160	40	105.46 €
04203-216187200	B	with T-slot nut	62	30	21	14	0-80	30	42	27	20	187	44	44	16	M16X200	55	143.50 €
04203-218187200	B	with T-slot nut	62	30	21	14	0-80	30	42	27	20	187	44	44	18	M16X200	55	144.98 €
04203-220187200	B	with T-slot nut	62	30	21	14	0-80	30	42	27	20	187	44	44	20	M20X200	60	150.83 €
04203-222187200	B	with T-slot nut	62	30	21	14	0-80	30	42	27	20	187	44	44	22	M20X200	60	156.71 €
04203-220235250	B	with T-slot nut	70	30	25	17	0-100	31	51	34	24	235	60	47	20	M20X250	70	193.32 €
04203-222235250	B	with T-slot nut	70	30	25	17	0-100	31	51	34	24	235	60	47	22	M20X250	70	207.95 €
04203-224235250	B	with T-slot nut	70	30	25	17	0-100	31	51	34	24	235	60	47	24	M24X250	75	216.73 €
04203-228235250	B	with T-slot nut	70	30	25	17	0-100	31	51	34	24	235	60	47	28	M24X250	75	226.99 €
