        Adapter plates for draw-down clamping systems

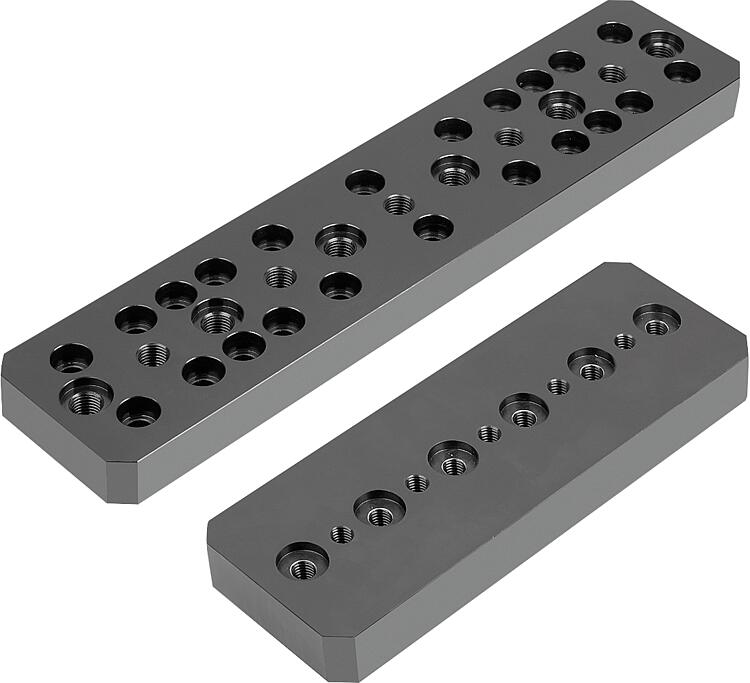

Item description/product images

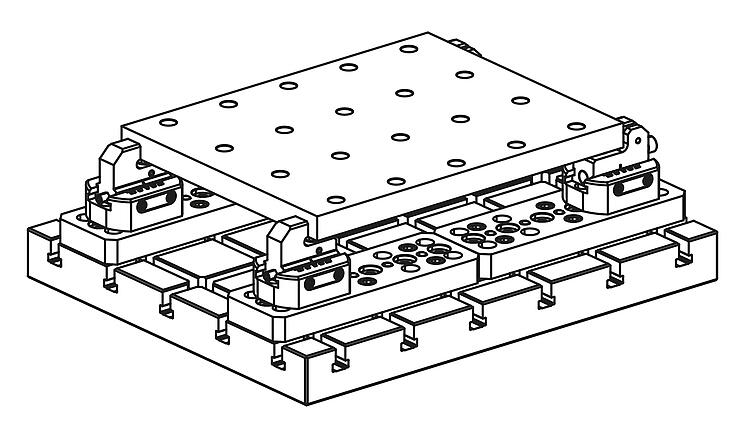

DescriptionProduct description:Adapter plate for flexible use of clamping elements and fixed stops in T-slots.Material:Steel.Version:Black oxidised.Note:The adapter plates can be fastened using various interfaces.

Users can customise the versions that have not been drilled to suit their applications.Advantages:- Fine adjustment in T-slots.
- Sturdy version.Drawing reference:

Form A: not drilled
Form B: drilled

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

04486-04_Datasheet_32809_Adapter_plates_for_draw-down_clamping_systems--en

438 kB

Drawings (total overview)

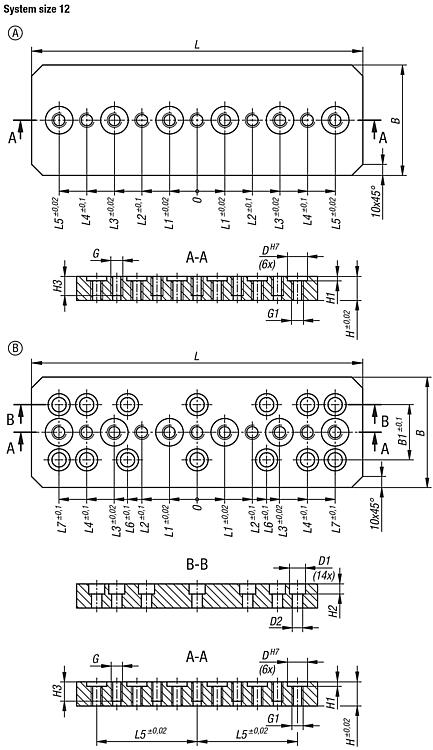

Adapter plates for draw-down clamping systems, System size 12

More information

Drawings

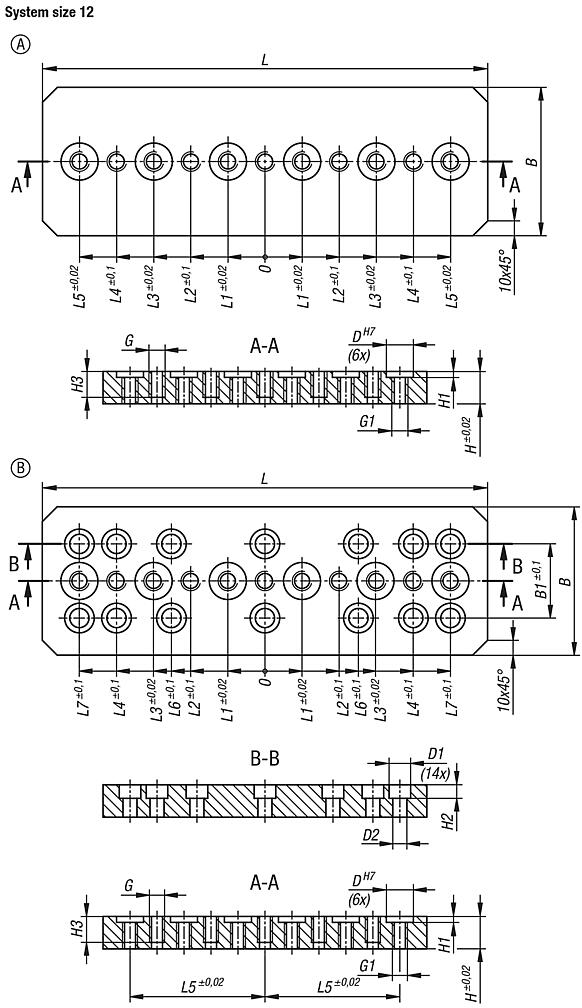

Adapter plates for draw-down clamping systems, System size 12

Item selection/filter

Order No.	Size	Form	B	B1	D	D1	D2	G	G1	H	H1	H2	H3	L	L1	L2	L3	L4	L5	L6	L7	CAD	Acc.	Price	Order
04486-04-123001000	Systemgröße 12	A	100	-	25	-	-	M12	M12	30	5,5	-	24	300	25	50	75	100	125	-	-			355.35 €
04486-04-123001001	Systemgröße 12	B	100	50	25	20	13	M12	M12	30	5,5	12,6	24	300	25	50	75	100	125	63	125			450.80 €

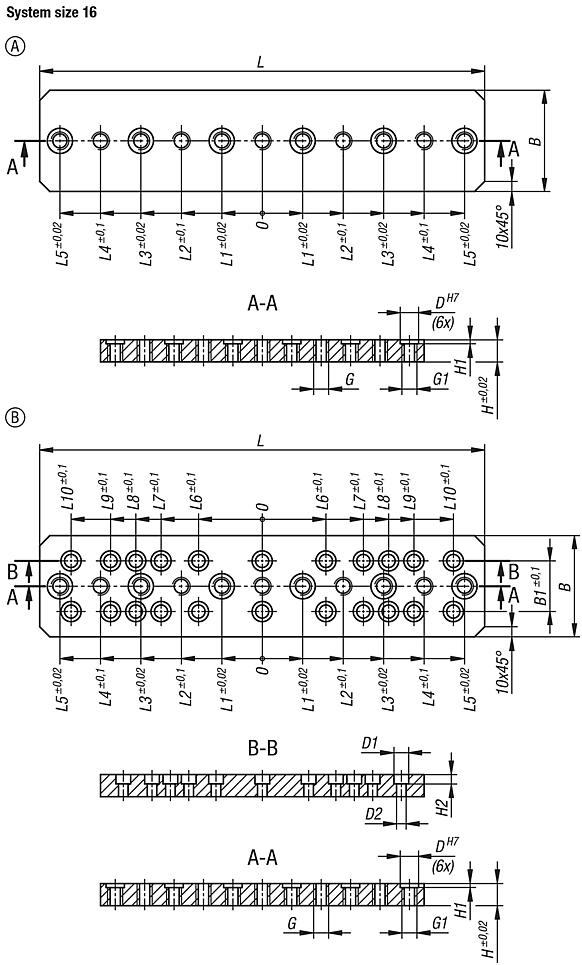

Adapter plates for draw-down clamping systems, System size 16

More information

Drawings

Adapter plates for draw-down clamping systems, System size 16

Item selection/filter

Order No.	Size	Form	B	B1	D	D1	D2	G	G1	H	H1	H2	L	L1	L2	L3	L4	L5	L6	L7	L8	L9	L10	CAD	Acc.	Price	Order
04486-04-164401000	Systemgröße 16	A	100	-	25	-	-	M16	M16	30	5,5	-	440	40	80	120	160	200	-	-	-	-	-			425.50 €
04486-04-164401001	Systemgröße 16	B	100	50	25	20	13	M16	M16	30	5,5	12,6	440	40	80	120	160	200	63	100	125	150	189			539.35 €
