Cam levers, steel with internal thread, plastic thrust washer
04232-16_IG

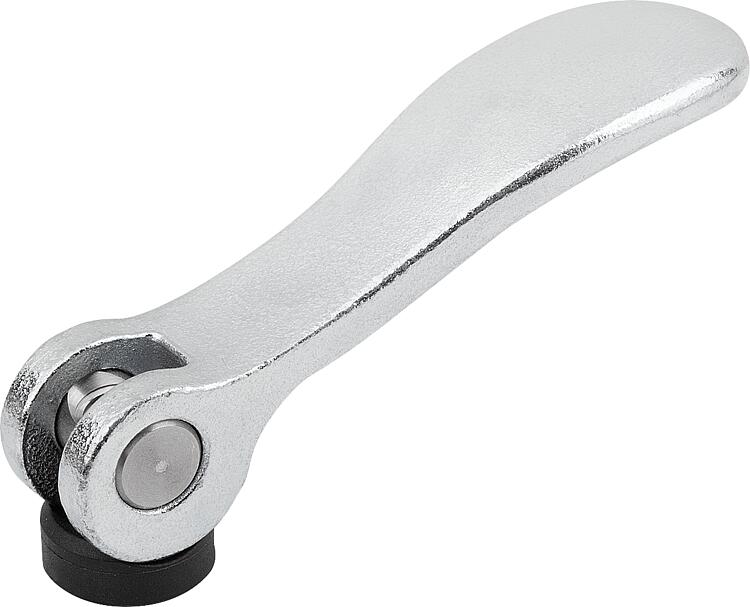

Cam levers, steel with internal thread, plastic thrust washer

go back

Item description/product images

DescriptionProduct description:These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance.
Material:

Handle steel 1.0401.
Thrust washer high performance plastic, carbon-fibre reinforced thermoplastic.
Hinge pin stainless steel 1.4305.

Version:Handle blue passivated.
Thrust washer, black.
Hinge pin bright.
Note:Plastics are subject to creeping under load (retardation).Accessory:For slightly curved contact faces, a stainless steel washer 04234 can also be ordered.
This washer can be mounted between the thrust washer and the contact face.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 04232-16_IG_Datasheet_32214_Cam_levers_steel_with_internal_thread_plastic_thrust_washer--en 184 kB

Drawings

Cam levers, steel with internal thread, plastic thrust washer

Item selection/filter

Order No.norelem old article numberDD1D2BB1HH1AA1Travel
S
Clamping
force
F (kN)
Hand
force
FH N
CADAcc.PriceOrder
04232-16-150220504232-1502205M516921,51514,722,270,479,21,24120 9.07 €
04232-16-150220604232-1502206M616921,51514,722,270,479,21,24120 9.07 €
04232-16-250220804232-2502208M8251133,32418,328,8961081,58350 15.95 €
