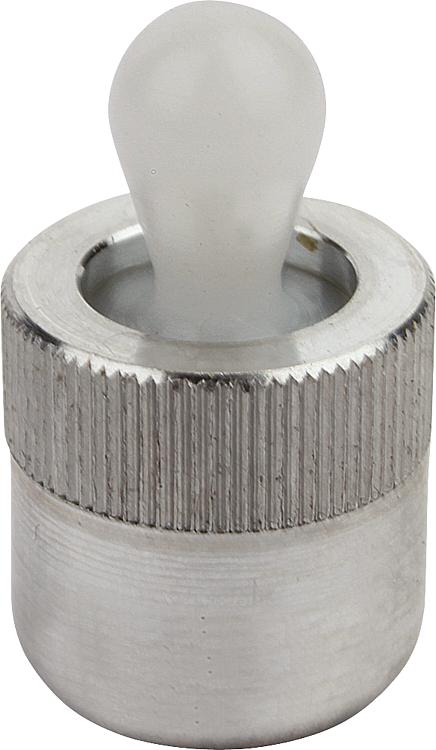

03330_OAPLateral spring plungers without seal, thrust pin POM, spring... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve in aluminium; spring in steel; pressure pin in plasticVersion:Sleeve blue electro zinc-plated.Note:Lateral spring plungers are for positioning, clamping, holding and fastening of workpieces during engraving, labelling, drilling, reaming, tapping, honing, grinding, welding, soldering, tooling, assembling, etc.
Eccentric adjustment bushes are also avaialable.
Dimensions W and Z are customer specific.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1
| X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| 03330-71034 | 6 | 3 | 7 | 4 | 6 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | 03330-03 |  |  | 4.06 € | | | 03330-71054 | 10 | 5 | 11 | 6,7 | 10 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 03330-05 | | | 4.42 € | | | 03330-71064 | 10 | 6 | 11 | 10,7 | 10 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | 03330-05 | | | 4.76 € | | | 03330-71084 | 12 | 8 | 13 | 13,9 | 12 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | 03330-08 | | | 5.20 € | | | 03330-71104 | 16 | 10 | 17 | 16,7 | 16 | 1,6 | 100 | - | - | - | - | - | 3,1 | 03330-10 | | | 5.70 € | |
