Positioning feet

go back

Products
- Product overview
  - Flexible standard component system
    - Self-aligning pads Fixture feet Clamp rests Support elements
      - Rest pads and positioning feet
        Positioning feet

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction.Drawing reference:

Form A: External thread and flat face
Form B: External thread and convex face
Form C: External thread and serrated face
Form K: External thread and carbide serrated face
Form L: External thread and POM insert
Form D: External thread and flat face
Form E: External thread and convex face
Form F: External thread and serrated face

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02040 Positioning feet

239 kB

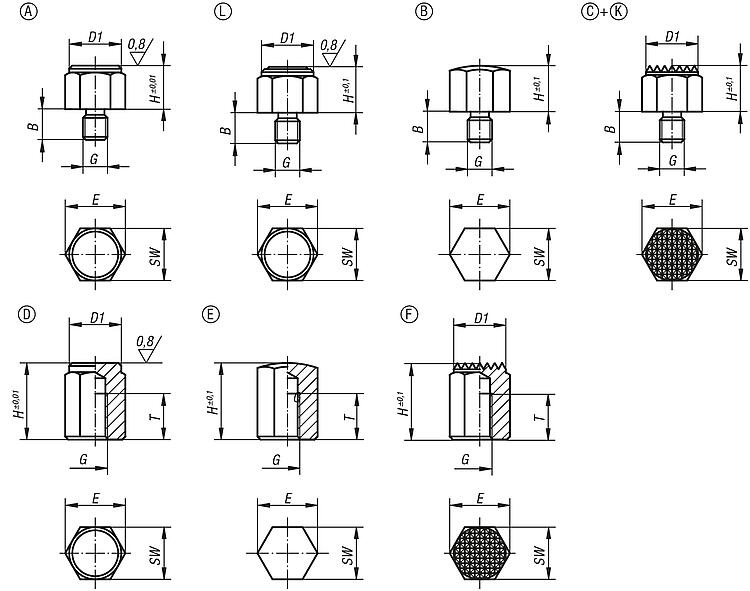

Drawings (total overview)

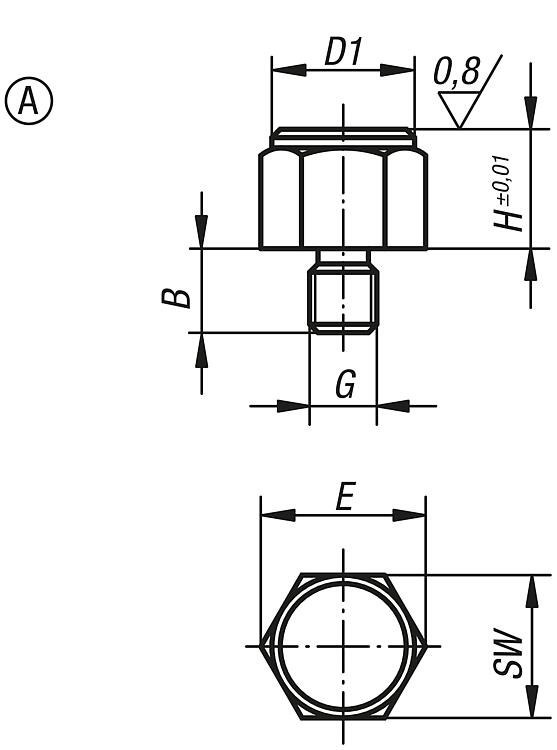

Positioning feet with external thread and flat face, Form A

More information

Drawings

Positioning feet with external thread and flat face, Form A

Item selection/filter

Order No.	Form	B	D1	G	H	E	SW	Tightening torque max. Nm	Price
02040-108	A	8	13	M6	8	14,4	13	8,5	12.27 €
02040-1104	A	10	13	M6	10	14,4	13	8,5	12.97 €
02040-1081	A	10	17	M8	8	19,4	17	18	13.70 €
02040-1101	A	10	17	M8	10	19,4	17	18	14.80 €
02040-1103	A	12	19	M10	10	21,9	19	32	15.30 €
02040-1152	A	12	19	M10	15	21,9	19	32	15.30 €
02040-110	A	14	22	M12	10	25,2	22	60	16.56 €
02040-115	A	14	22	M12	15	25,2	22	60	16.56 €
02040-1151	A	19	30	M16	15	33	30	140	38.73 €
02040-1201	A	19	30	M16	20	33	30	140	39.61 €

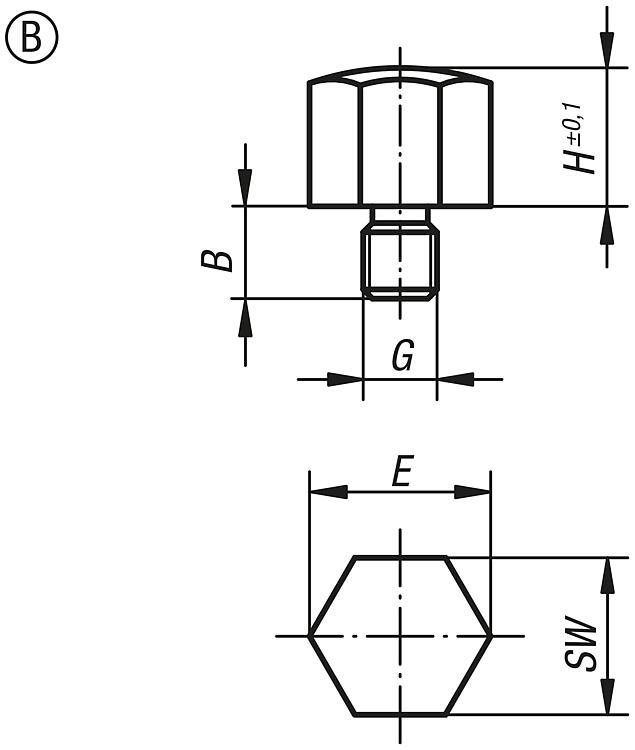

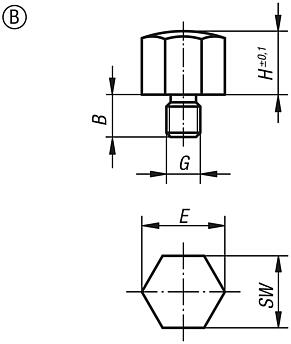

Positioning feet with external thread and convex face, Form B

More information

Drawings

Positioning feet with external thread and convex face, Form B

Item selection/filter

Order No.	Form	B	G	H	E	SW	Tightening torque max. Nm	Price
02040-208	B	8	M6	8	14,4	13	8,5	10.21 €
02040-2104	B	10	M6	10	14,4	13	8,5	10.83 €
02040-2081	B	10	M8	8	19,4	17	18	11.44 €
02040-2101	B	10	M8	10	19,4	17	18	12.36 €
02040-2103	B	12	M10	10	21,9	19	32	13.19 €
02040-2152	B	12	M10	15	21,9	19	32	13.19 €
02040-210	B	14	M12	10	25,2	22	60	14.24 €
02040-215	B	14	M12	15	25,2	22	60	14.46 €
02040-2151	B	19	M16	15	33	30	140	28.76 €
02040-2201	B	19	M16	20	33	30	140	29.68 €

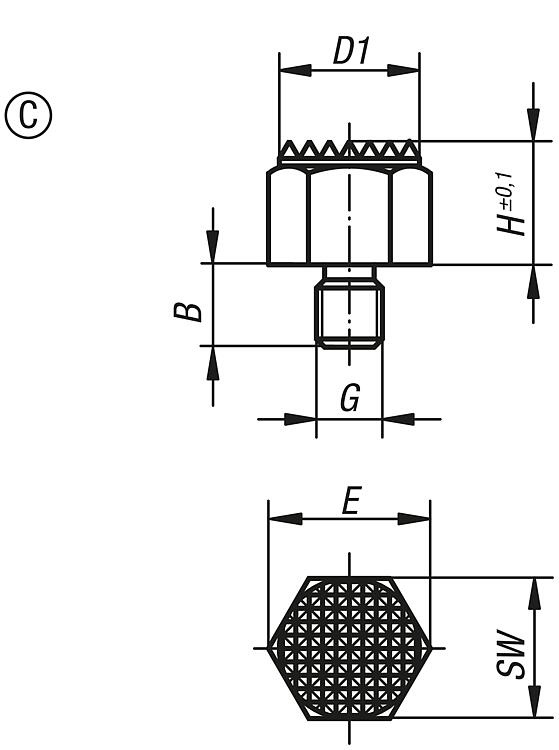

Positioning feet with external thread and serrated face, Form C

More information

Drawings

Positioning feet with external thread and serrated face, Form C

Item selection/filter

Order No.	Form	B	D1	G	H	E	SW	Tightening torque max. Nm	Price
02040-308	C	8	13	M6	8	14,4	13	8,5	11.68 €
02040-3102	C	10	13	M6	10	14,4	13	8,5	12.41 €
02040-3081	C	10	17	M8	8	19,4	17	18	13.09 €
02040-3101	C	10	17	M8	10	19,4	17	18	14.19 €
02040-3103	C	12	19	M10	10	21,9	19	32	14.84 €
02040-3152	C	12	19	M10	15	21,9	19	32	14.84 €
02040-310	C	14	22	M12	10	25,2	22	60	15.05 €
02040-315	C	14	22	M12	15	25,2	22	60	15.05 €
02040-3151	C	19	30	M16	15	33	30	140	35.94 €
02040-3201	C	19	30	M16	20	33	30	140	36.97 €

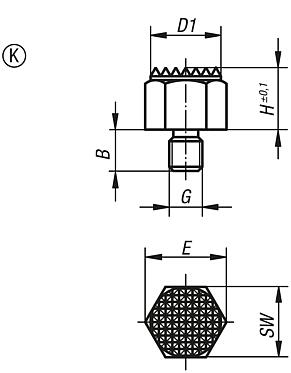

Positioning feet with external thread and carbide diamond grip, Form K

More information

Drawings

Positioning feet with external thread and carbide diamond grip, Form K

Item selection/filter

Order No.	Form	B	D1	G	H	E	SW	Tightening torque max. Nm	Price
02040-7101	K	10	17	M8	10	19,4	17	18	34.29 €
02040-710	K	14	22	M12	10	25,2	22	60	41.93 €
02040-715	K	14	22	M12	15	25,2	22	60	42.19 €
02040-7151	K	19	30	M16	15	33	30	140	68.75 €
02040-7201	K	19	30	M16	20	33	30	140	69.24 €

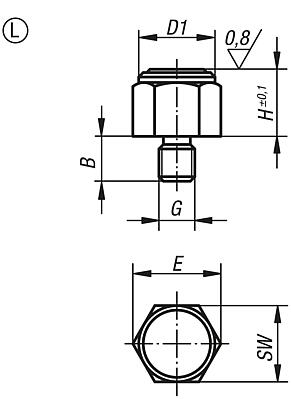

Positioning feet with external thread and POM insert, Form L

More information

Drawings

Positioning feet with external thread and POM insert, Form L

Item selection/filter

Order No.	Form	B	D1	G	H	E	SW	Tightening torque max. Nm	Price
02040-8101	L	10	17	M8	10	19,4	17	18	21.26 €
02040-810	L	14	22	M12	10	25,2	22	60	24.21 €
02040-815	L	14	22	M12	15	25,2	22	60	24.50 €
02040-8151	L	19	30	M16	15	33	30	140	42.69 €
02040-8201	L	19	30	M16	20	33	30	140	43.09 €

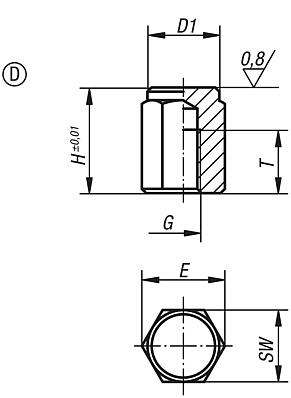

Positioning feet with internal thread and flat face, From D

More information

Drawings

Positioning feet with internal thread and flat face, From D

Item selection/filter

Order No.	Form	D1	G	H	T	E	SW	Price
02040-410	D	13	M6	10	6	14,4	13	10.42 €
02040-4151	D	13	M6	15	10	14,4	13	11.01 €
02040-4101	D	17	M8	10	6	19,4	17	11.63 €
02040-415	D	17	M8	15	6	19,4	17	12.55 €
02040-4251	D	17	M8	25	16	19,4	17	14.04 €
02040-4201	D	19	M10	20	10	21,9	19	13.19 €
02040-4302	D	19	M10	30	15	21,9	19	13.64 €
02040-4401	D	19	M10	40	15	21,9	19	14.67 €
02040-420	D	22	M12	20	10	25,2	22	13.36 €
02040-425	D	22	M12	25	15	25,2	22	13.74 €
02040-430	D	22	M12	30	20	25,2	22	14.04 €
02040-440	D	22	M12	40	25	25,2	22	14.77 €
02040-450	D	22	M12	50	25	25,2	22	15.38 €
02040-4301	D	30	M16	30	20	33	30	35.05 €
02040-4501	D	30	M16	50	25	33	30	38.73 €

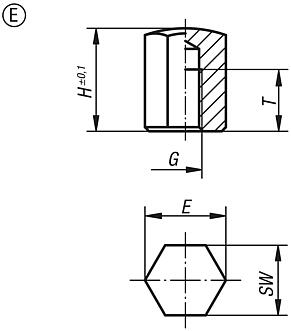

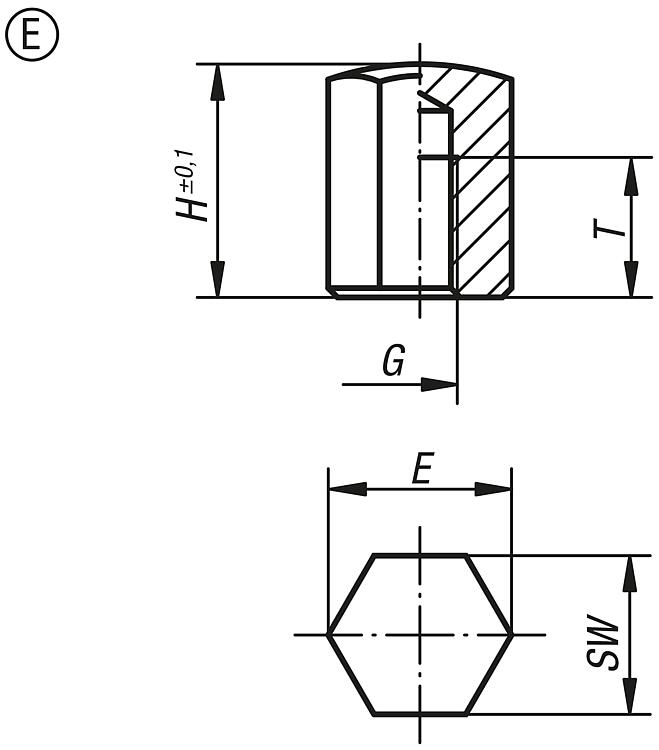

Positioning feet with internal thread and spherical face, Form E

More information

Drawings

Positioning feet with internal thread and spherical face, Form E

Item selection/filter

Order No.	Form	G	H	T	E	SW	Price
02040-510	E	M6	10	6	14,4	13	8.56 €
02040-5151	E	M6	15	10	14,4	13	9.07 €
02040-5101	E	M8	10	6	19,4	17	9.57 €
02040-515	E	M8	15	6	19,4	17	10.41 €
02040-5251	E	M8	25	16	19,4	17	10.74 €
02040-5201	E	M10	20	10	21,9	19	11.41 €
02040-5302	E	M10	30	15	21,9	19	11.86 €
02040-5401	E	M10	40	15	21,9	19	12.59 €
02040-520	E	M12	20	10	25,2	22	11.42 €
02040-525	E	M12	25	15	25,2	22	11.52 €
02040-530	E	M12	30	20	25,2	22	11.96 €
02040-540	E	M12	40	25	25,2	22	12.71 €
02040-550	E	M12	50	25	25,2	22	13.33 €
02040-5301	E	M16	30	20	33	30	25.63 €
02040-5501	E	M16	50	25	33	30	26.52 €

Positioning feet with internal thread and serrated face, Form F

More information

Drawings

Positioning feet with internal thread and serrated face, Form F

Item selection/filter

Order No.	Form	D1	G	H	T	E	SW	Price
02040-610	F	13	M6	10	6	14,4	13	9.72 €
02040-6151	F	13	M6	15	10	14,4	13	10.55 €
02040-6101	F	17	M8	10	6	19,4	17	11.14 €
02040-615	F	17	M8	15	6	19,4	17	12.04 €
02040-6251	F	17	M8	25	16	19,4	17	12.33 €
02040-6201	F	19	M10	20	10	21,9	19	12.29 €
02040-6302	F	19	M10	30	15	21,9	19	12.74 €
02040-6401	F	19	M10	40	15	21,9	19	13.64 €
02040-620	F	22	M12	20	10	25,2	22	12.36 €
02040-625	F	22	M12	25	15	25,2	22	12.71 €
02040-630	F	22	M12	30	20	25,2	22	12.89 €
02040-640	F	22	M12	40	25	25,2	22	13.74 €
02040-650	F	22	M12	50	25	25,2	22	14.46 €
02040-6301	F	30	M16	30	20	33	30	32.49 €
02040-6501	F	30	M16	50	25	33	30	33.86 €
