        Switched-mode power supplies for top-hat rail mounting

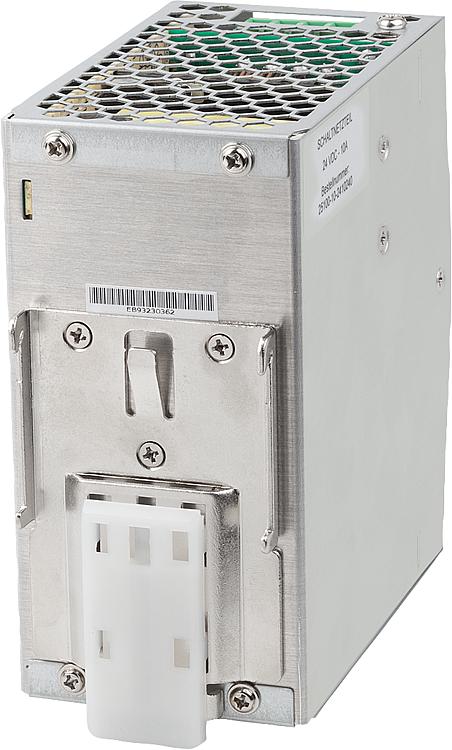

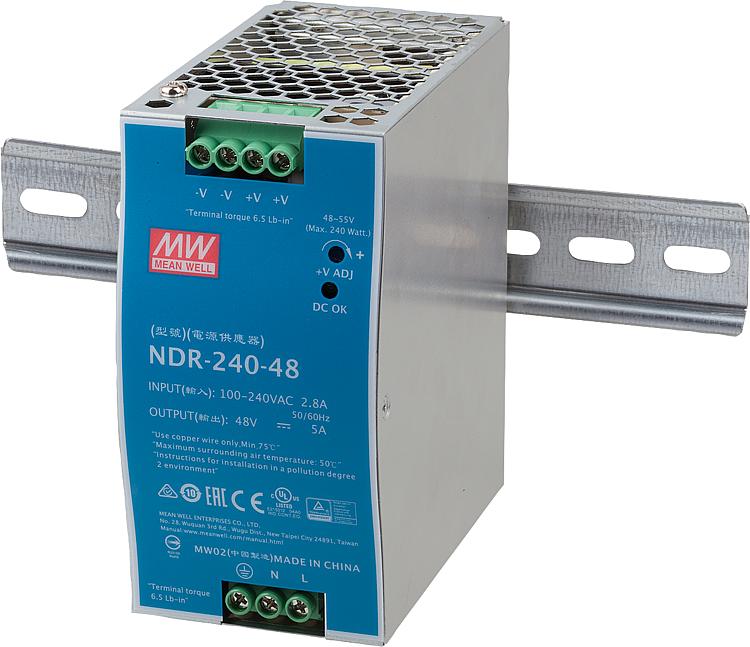

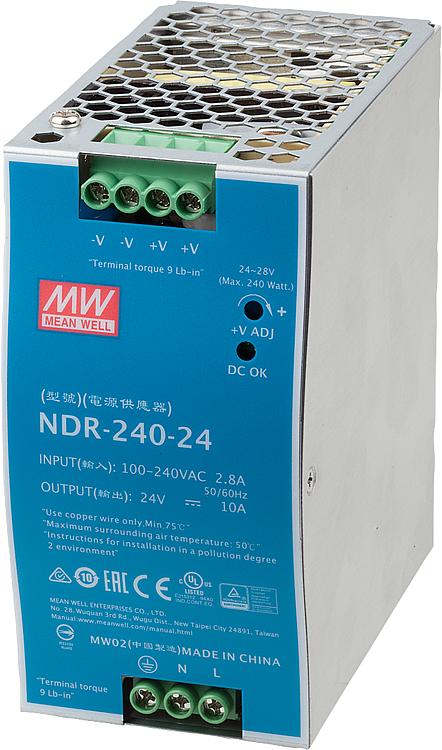

Item description/product images

DescriptionVersion:Single-phase primary switched-mode power supply in metal housing.Note:Closed version with screw fittings with contact protection. Overload protection due to current limit, auto recovery. Protected against short-circuit, overload and surges. Power on LED indicator. For DIN top hat rail mounting.Technical data:Rating: IP00
Protection class: I
Standard: UL508, TUV EN60950-1, CE
Connection: screw terminals with contact protection
Fastening: installation on DIN rail TS-35/7.5 or 15Temperature range:-10°C to +70°C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 82100-10 Switched-mode power supplies for top-hat rail mounting

517 kB

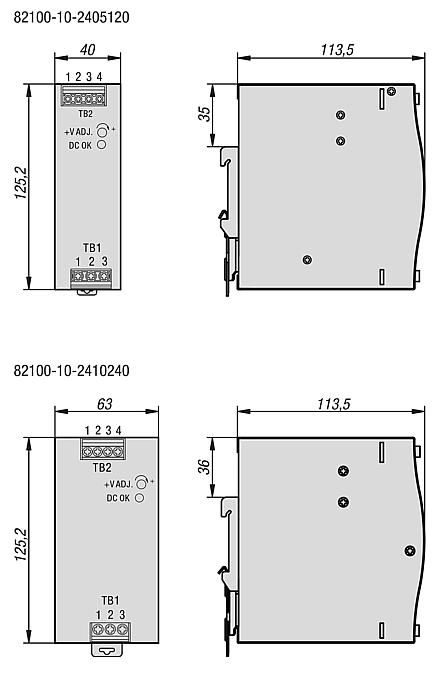

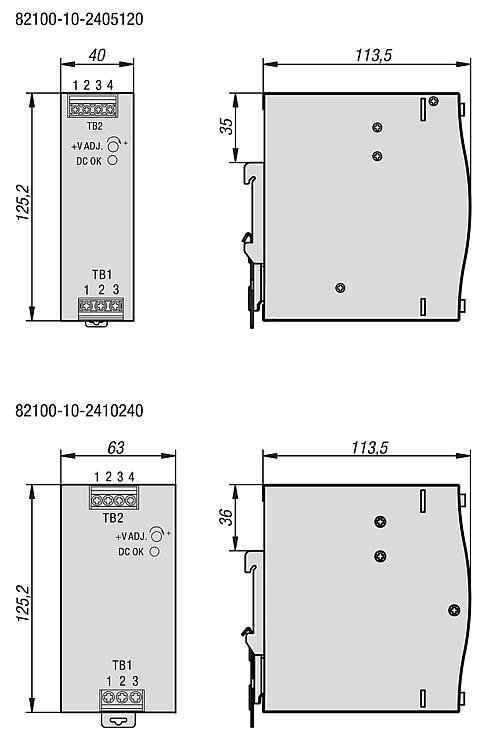

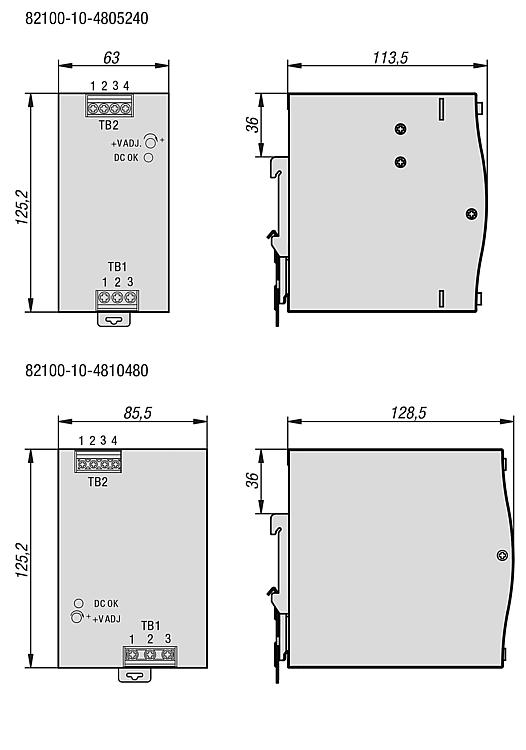

Drawings

Item selection/filter

Order No.	Version 1	Input voltage VAC	Frequency Hz	Output voltage V	Output nom. current A	Output performance W	Price
82100-10-2405120	24 V DC	90 - 264	47 - 63	24	5	120	88.72 €
82100-10-2410240	24 V DC	90 - 264	47 - 63	24	10	240	144.16 €
82100-10-4805240	48 V DC	90 - 264	47 - 63	48	5	240	144.16 €
82100-10-4810480	48 V DC	90 - 264	47 - 63	48	10	480	256.92 €
