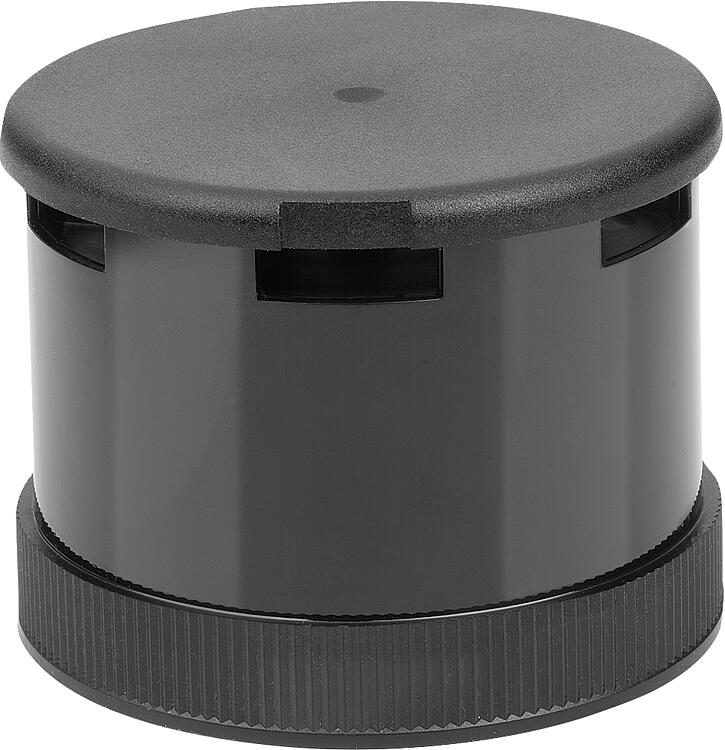

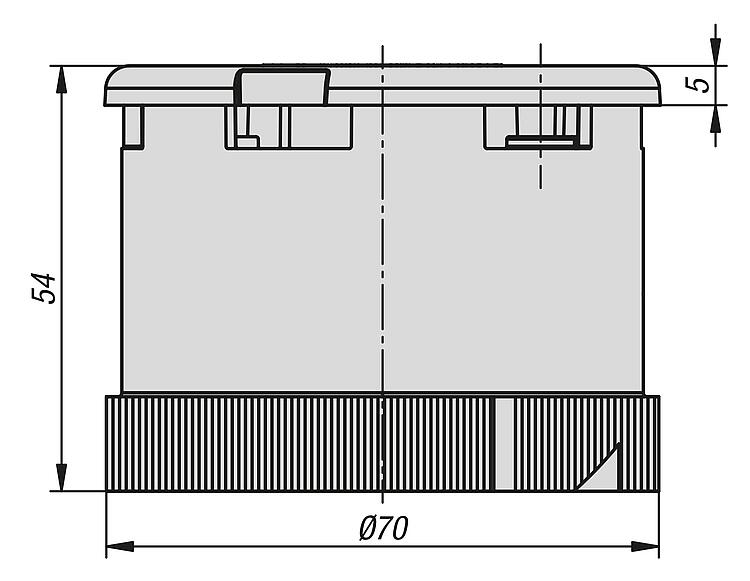

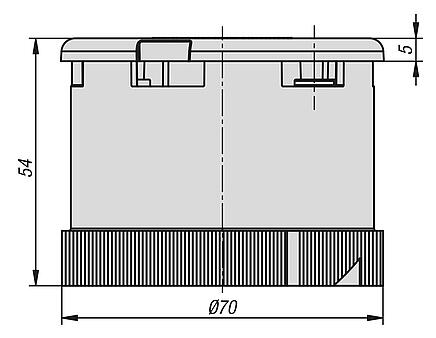

        Siren element, continuous/alternating tone, Ø70 mm 24 V AC/DC

Item description/product images

DescriptionMaterial:Polycarbonate.Version:black.Note:Siren element for acoustic signaling of status and faults in machines and equipment. With 2 tones to choose from. Continuous or alternating tone (adjustable via slide switch in siren element). The volume can be adjusted via a switch.

The siren can be used alone with a connection element as a purely acoustic warning signal, or it can be combined with other light or acoustic elements to form a signal tower (max. 5 elements). The siren element is mounted and dismantled via a twist lock.

A connection element is required for commissioning. Order this separately.

Certificates / Standards met:
CE, EAC, WEEE, cULus, UKCA, UL (Type 12).Technical data:Mounting position: arbitrary.
Volume at 1 metre: max. 105 dB (A)
Selectable tones: 2
Acoustic signal pattern: continuous tone, alternating tone
Volume adjustable: via switch
Volume range: ca. 95 to 105 dB (A)
Audio frequency: 3,000 Hz
Acoustic lifespan: min. 5,000 h.Temperature range:-20 °C to +50 °C.Accessory:Connecting element 81400-30.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
