Baseplate for centric vice

41104

Baseplate for centric vice

Products
- Product overview
  - Clamping technology
    - Vice Clamping Technology
      - Centric vices
        Baseplate for centric vice

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Hardened and ground.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 41104 Baseplate for centric vice

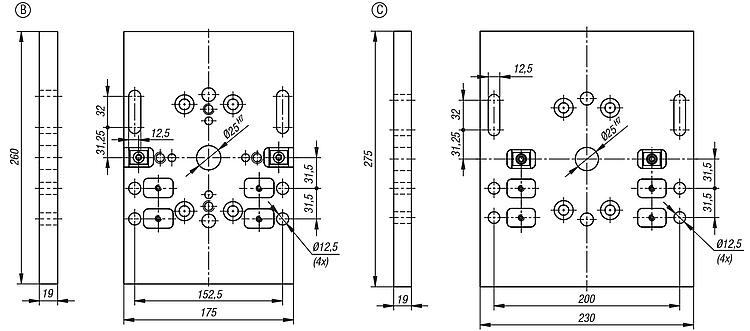

Drawings (total overview)

Baseplate for centric vice

Baseplate for centric vice

Baseplate for centric vice, Form A

More information

Drawings

Baseplate for centric vice, Form A

Item selection/filter

Order No.	Form	Suitable for	weight kg	CAD	Acc.	Price	Order
41104-12175200	A	centric vice 65, 80, 125	4,03			376.05 €

Baseplate for centric vice, Form B

More information

Drawings

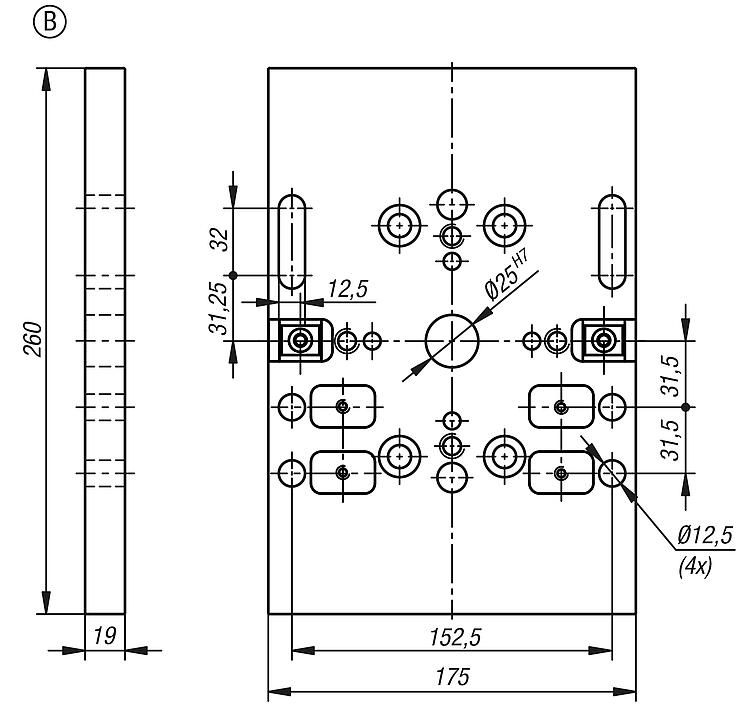

Baseplate for centric vice, Form B

Item selection/filter

Order No.	Form	Suitable for	weight kg	CAD	Acc.	Price	Order

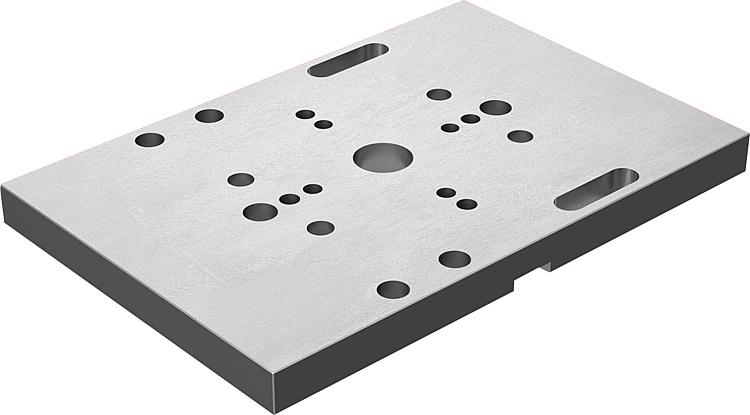

41104-00175260	B	centric vice 65, 80	6,3			665.85 €

Baseplate for centric vice, Form C

More information

Drawings

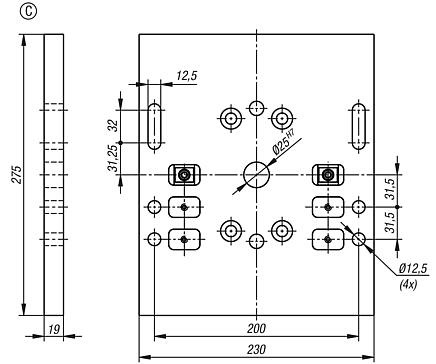

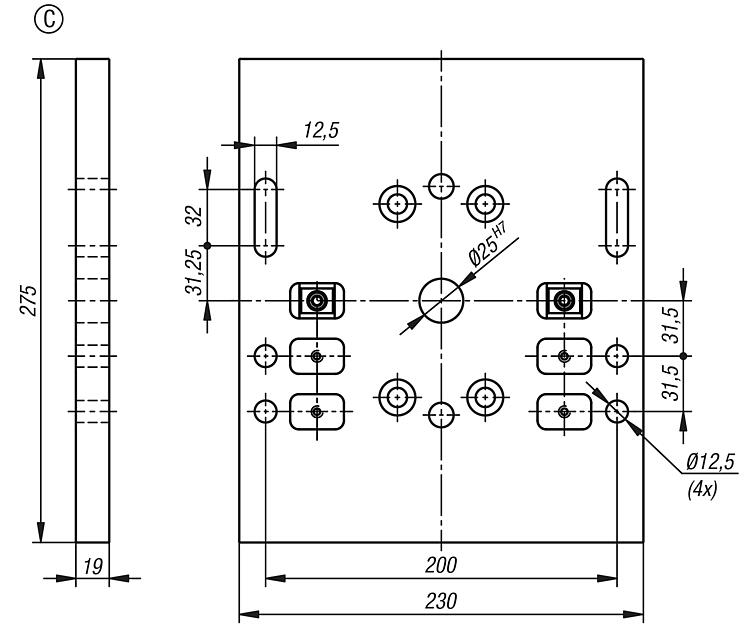

Baseplate for centric vice, Form C

Item selection/filter

Order No.	Form	Suitable for	weight kg	CAD	Acc.	Price	Order
41104-00230275	C	centric vice 125	7,5			685.40 €
