        Seating ledges

Item description/product images

DescriptionMaterial:Steel.Version:Hardened and bright.Note:If the riser plates 41020 are used to raise the height, the seating ledges must be changed to suit.

*Including 12 jaw pins 41060-05600.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 41030 Seating ledges

144 kB

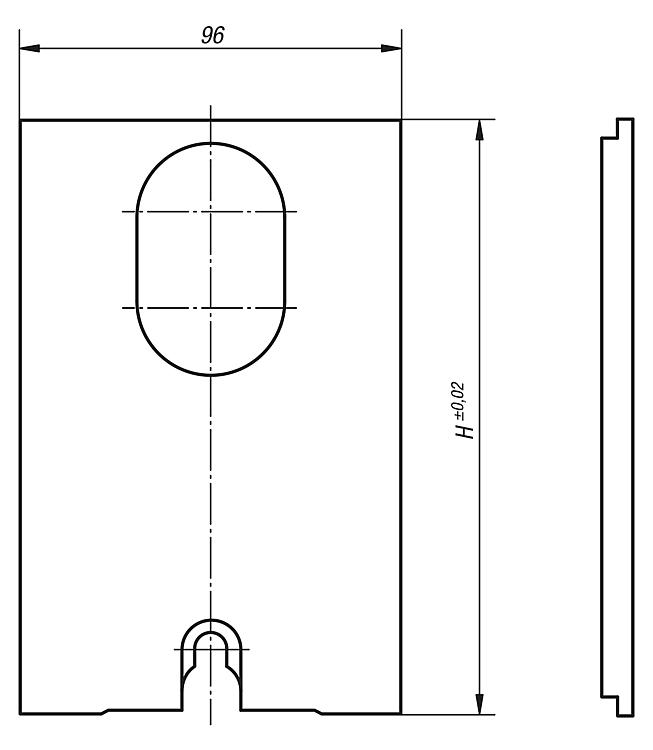

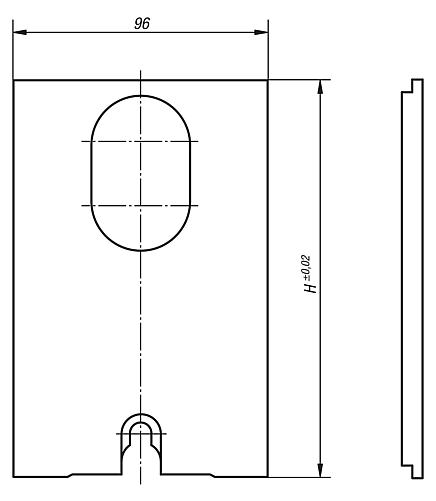

Drawings

Item selection/filter

Order No.	H	Suitable for	Price
41030-100	100	3-axis vice basic set	279.44 €
41030-105*	105	3-axis vice basic set	403.65 €
41030-125	125	3-axis vice with 25 mm riser plate	322.24 €
41030-150	150	3-axis vice with 50 mm riser plate	322.24 €
41030-175	175	5-axis vice basic set	279.44 €
41030-180*	180	5-axis vice basic set	403.65 €
41030-200	200	5-axis vice with 25 mm riser plate	322.24 €
41030-225	225	5-axis vice with 50 mm riser plate	343.65 €
41030-250	250	5-axis vice with 75 mm riser plate (25 + 50)	422.05 €
