Grease nipples flush type DIN 3405 to press in, Form B

go back

Products
- Product overview
  - norelem technoshop
    - Lubricants Adhesives Grease nipples
      - Grease nipples
        Grease nipples flush type DIN 3405 to press in
        Grease nipples flush type DIN 3405 to press in, Form B

Item description/product images

DescriptionMaterial:

Steel or stainless steel 1.4305.

Version:Steel electro zinc-plated.
Stainless steel bright.Note:Funnel-type grease nipples are particularly suitable for flush or recessed installation.
The funnel shape ensures that the lubrication can also be applied in hard-to-reach places.

These funnel-type grease nipples have a smooth pin for pressing in. Press-in grease nipples are only suitable for low pressures.Assembly:The exact size of the receiving hole depends on the material used and must be determined by the user through tests. The reference dimension for the receiving hole corresponds to the pin-Ø specified by us.Drawing reference:

Form A: straight

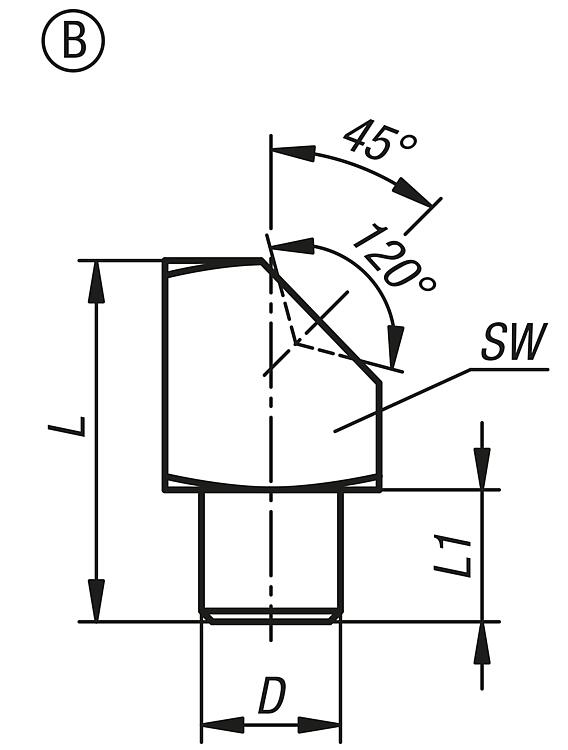

Form B: 45°
Form C: 90°

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
