        Spring hinges steel or stainless steel, 240 mm

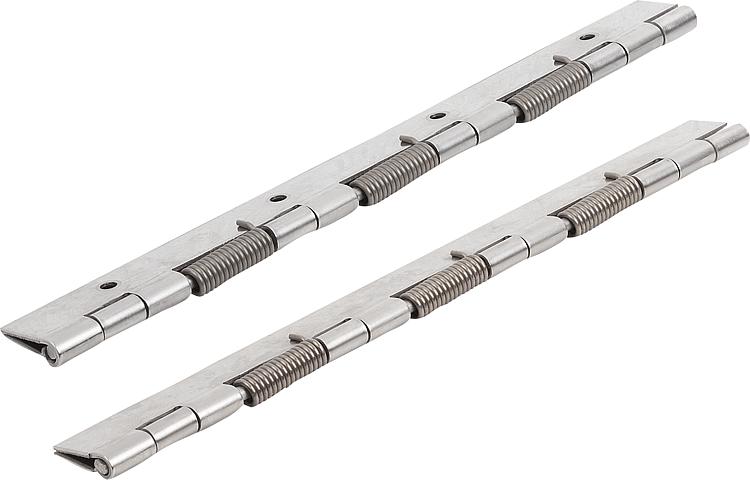

        Spring hinges steel or stainless steel, 240 mm, spring closed

Item description/product images

DescriptionMaterial:

Steel or 1.4301 stainless steel.
Tension spring stainless steel.

Version:Steel bright or electro zinc-plated.
Stainless steel bright.Note:Butt type hinges.
Opening angle 270°.

Spring torque:
M(0°): 0.84 Nm / M(90°): 1.68 Nm / M(180°): 2.55 Nm

Form A: without holes
Form B: with holes

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27904_B Spring hinges steel or stainless steel, 240 mm, spring closed

138 kB

Drawings

Item selection/filter

Order No.	Form	Version 1	Main material	Main colour	A	A1	B	B1	D	D1	S
27904-4024010	A	spring closed	steel	-	40	-	240	-	-	4	1,5
27904-4024011	B	spring closed	steel	-	40	22,7	240	60	4	4	1,5
27904-14024010	A	spring closed	stainless steel A2	-	40	-	240	-	-	4	1,5
27904-14024011	B	spring closed	stainless steel A2	-	40	22,7	240	60	4	4	1,5
