Item description/product images

DescriptionMaterial:Guide bushes low carbon steel 1.7139.Version:case-hardened.Note:The steel guide bushes with centring collar are components that can be used in tool and die making. They are used to ensure precise guidance, alignment and positioning of tools, dies or other moving parts.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 23678-10 Guide bushes steel with centring collar 351 kB

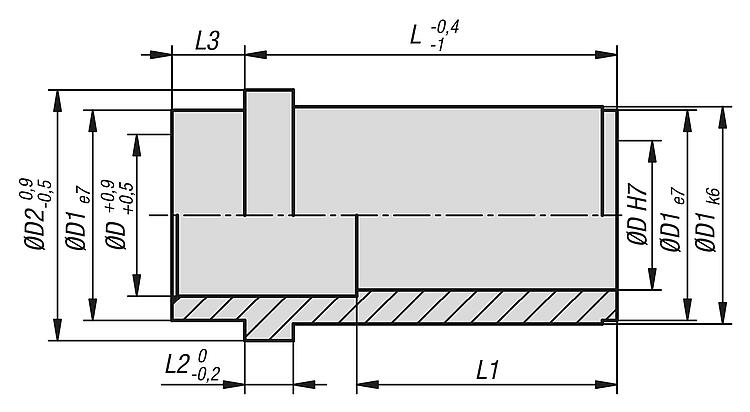

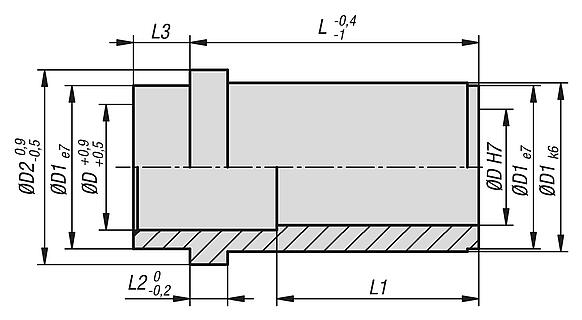

Drawings

Guide bushes steel with centring collar

Item selection/filter

Order No.D

D1D2LL1L2L3Filter
23678-10-0901291416121233
23678-10-0901791416171733
23678-10-0902291416222233
23678-10-0902791416272733
23678-10-090369141636/46/56/663633
23678-10-10012101416121233
23678-10-10017101416171733
23678-10-10022101416222233
23678-10-10027101416272733
23678-10-1003610141636/46/56/663633
23678-10-14017142025171769
23678-10-14022142025222269
23678-10-14027142025272769
23678-10-14036142025363669
23678-10-1404614202546/56/66/76/86/96/1164669
23678-10-15017152025171769
23678-10-15022152025222269
23678-10-15027152025272769
23678-10-15036152025363669
23678-10-1504615202546/56/66/76/86/96/1164669
23678-10-18017182631171769
23678-10-18022182631222269
23678-10-18027182631272769
23678-10-18036182631363669
23678-10-18046182631464669
23678-10-1805618263156/66/76/86/96/116/1365669
23678-10-20017202631171769
23678-10-20022202631222269
23678-10-20027202631272769
23678-10-20036202631363669
23678-10-20046202631464669
23678-10-2005620263156/66/76/86/96/116/1365669
23678-10-22017223035171769
23678-10-22022223035222269
23678-10-22027223035272769
23678-10-22036223035363669
23678-10-22046223035464669
23678-10-22056223035565669
23678-10-22066223035666669
23678-10-2207622303576/86/96/116/136/1567669
23678-10-24017243035171769
23678-10-24022243035222269
23678-10-24027243035272769
23678-10-24036243035363669
23678-10-24046243035464669
23678-10-24056243035565669
23678-10-24066243035666669
23678-10-2407624303576/86/96/116/136/1567669
23678-10-30022304247222269
23678-10-30027304247272769
23678-10-30036304247363669
23678-10-30046304247464669
23678-10-30056304247565669
23678-10-30066304247666669
23678-10-30076304247767669
23678-10-30086304247868669
23678-10-3009630424796/116/136/156/176/1969669
23678-10-32022324247222269
23678-10-32027324247272769
23678-10-32036324247363669
23678-10-32046324247464669
23678-10-32056324247565669
23678-10-32066324247666669
23678-10-32076324247767669
23678-10-32086324247868669
23678-10-3209632424796/116/136/156/176/1969669
23678-10-4003640546036361012
23678-10-4004640546046461012
23678-10-4005640546056561012
23678-10-4006640546066661012
23678-10-4007640546076761012
23678-10-4008640546086861012
23678-10-4009640546096961012
23678-10-40116405460116/136/156/176/196/216/2461161012
23678-10-4203642546036361012
23678-10-4204642546046461012
23678-10-4205642546056561012
23678-10-4206642546066661012
23678-10-4207642546076761012
23678-10-4208642546086861012
23678-10-4209642546096961012
23678-10-42116425460116/136/156/176/196/216/2461161012
