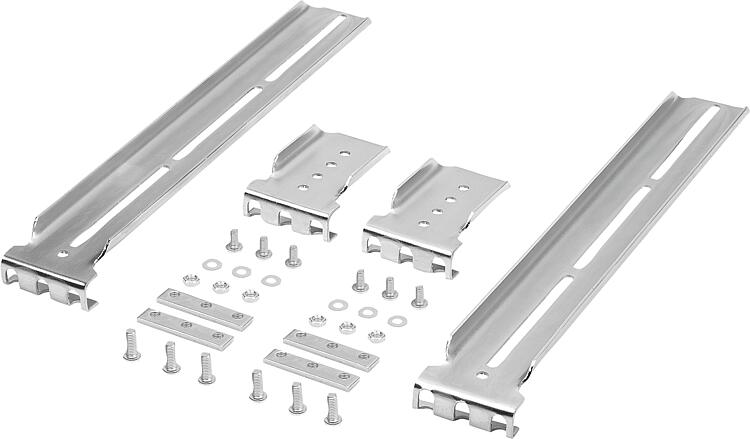

21335-83_AMounting bracket, steel, for telescopic slides, Form A |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Mounting bracket steel.Version:Mounting bracket electro zinc-plated.Note for ordering:Sold in pairs.
Note:As an option for floor or side mounting.Accessory:21334-20 Steel telescopic slides for side mounting, partial extension, load capacity up to 50 kg.
21334-45 Steel telescopic slides for side mounting, partial extension, load capacity up to 65 kg.
21334-70 Steel telescopic slides for side mounting, over extension, load capacity up to 70 kg.
21334-75 Steel telescopic slides for side mounting, over extension, load capacity up to 70 kg.
21334-65 Steel telescopic slides for side mounting, over extension, load capacity up to 68 kg.
21334-55 Steel telescopic slides for side mounting, over extension, load capacity up to 68 kg.
21334-60 Steel telescopic slides for side mounting, over extension, load capacity up to 68 kg.
21335-10 Steel telescopic slides for side mounting, full extension, load capacity up to 124 kg.
21335-20 Steel telescopic slides for side mounting, over extension, load capacity up to 160 kg.
21334-90 Steel telescopic slides for side mounting, over extension, load capacity up to 82 kg.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

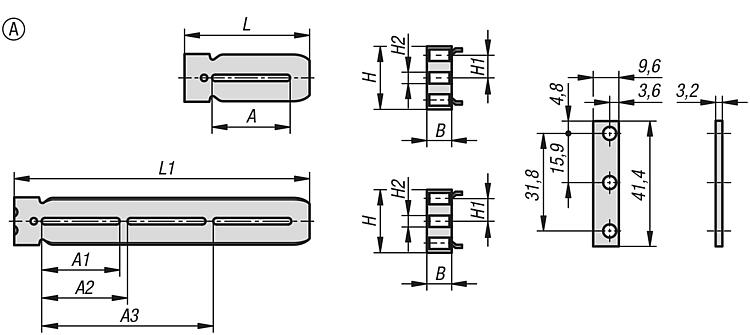

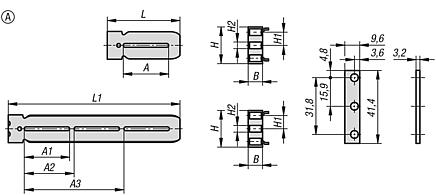

| Order No. | Form | Form definition | A
| A1 | A2 | A3 | B | H | H1 | H2 | L | L1 | CAD | Acc. | Price | Order |
|---|
| 21335-83-069043 | A | - | - | 76,2 | 82,6 | 165,1 | 15 | 43,7 | 15,9 | 6,5 | 69,9 | 266,7 |  | | 0.00 € | | | 21335-83-114044 | A | - | 66 | - | - | - | 18,3 | 44,5 | 15,2 | 7,4 | 114,6 | 114,6 | | | 0.00 € | |
