        Rotary positioning stages for high loading with coaxial electric drive

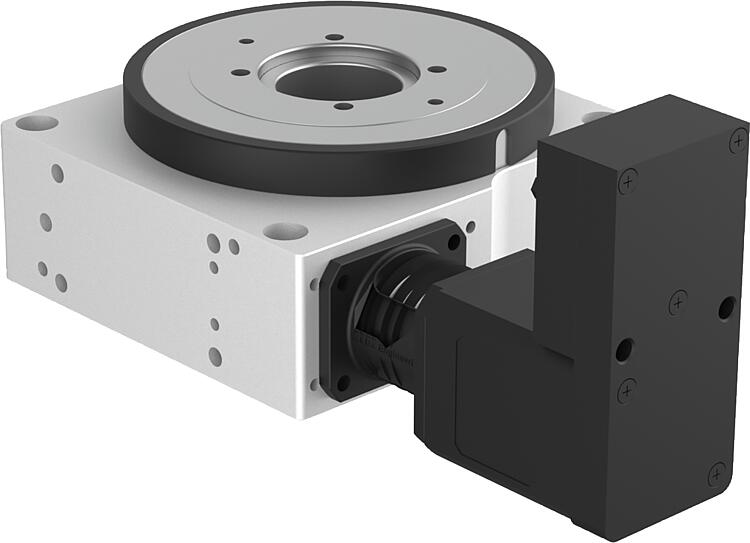

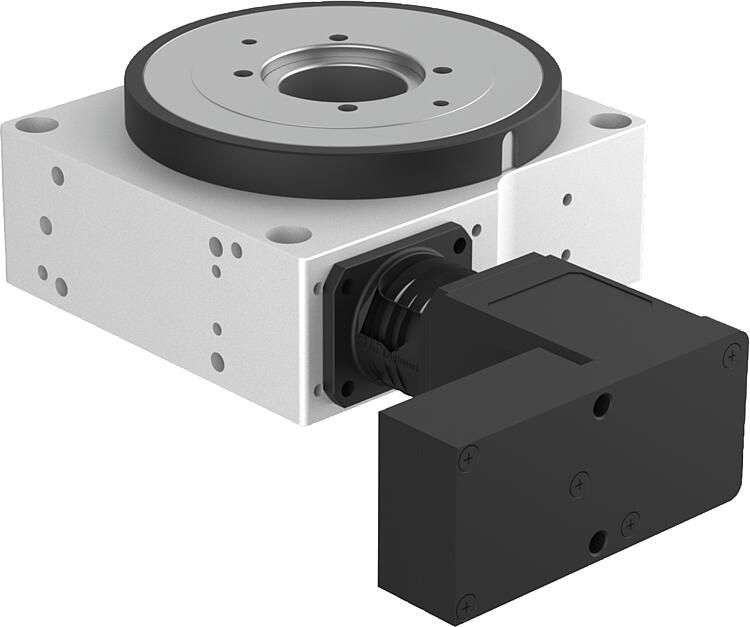

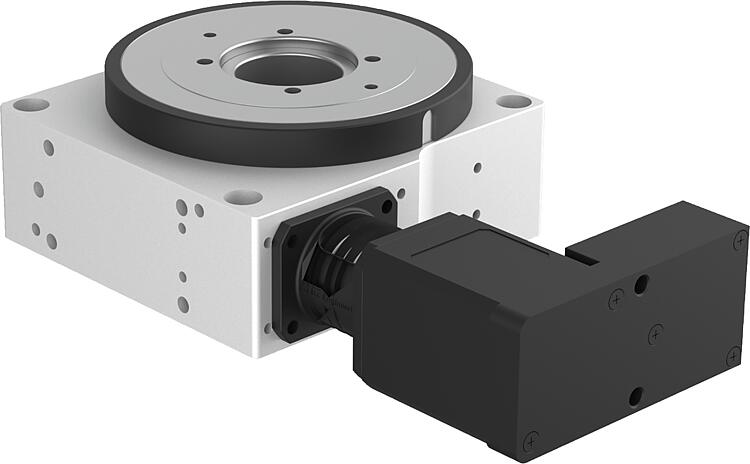

        Rotary positioning stages for high loading with coaxial electric drive, Form C

Item description/product images

DescriptionMaterial:Body and rotary stage made of aluminium alloy.
Hollow shaft made of stainless steel.
Pre-loaded worm gear made of steel.
Dog coupling made of aluminium with polyurethane coupling spider.
Sensor holder made of aluminium.Version:Aluminium alloy anodised.Note:Rotary positioning stages for motorised adjustment and positioning tasks. The pre-loaded worm gear runs virtually play-free. The fixed bearing in the motorised rotary stages is designed as a cross roller bearing. This bearing can withstand extremely high tilting moments and lateral forces. Cables can be routed through the large hole in the hollow shaft. With the adjustable positioning ring the rotational reference point can be set, in relation to the position of the assembled part, as desired. Proximity switches can be mounted with the optionally available sensor holder (21085-02-901). Programming software for stepper motor with positioning control available as download.

The stepper motor with its resolution of 200 increments per revolution allows for a calculated positioning accuracy of 0.005 mm when coming from one direction. The absolute positioning accuracy when coming from one direction is 0.01 mm. The system can be operated with a duty cycle of 100 %.

Can be combined with all other parts of the same size.

Sensor holder: incl. 2 mounting screws DIN 7991 M4x20 VATechnical data:21085-02-110xxx:

Gear ratio: 20:1 / 40:1
backlash: < 0.02° (20:1) / < 0.10° (40:1)
radial play: <0.02 mm
max. input speed: 600 rpm
max. duty cycle: 100%
required input torque: 0.13 Nm
stiffness: see diagram
rotation: 360°, infinite
operating temperature: +10 °C to +60 °C
efficiency η: 0.33

21085-02-150xxx:

Gear ratio: 48:1
reverse play: < 0.10°
radial play: <0.02 mm
max. input speed: 600 rpm
max. duty cycle: 100%
required input torque: 0.13 Nm
rigidity: see diagram
rotation: 360°, infinite
operating temperature: +10 °C to +60 °C
efficiency η: 0.37

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

21085-02_C_Datasheet_33975_Rotary_positioning_stages_for_high_loading_with_coaxial_electric_drive--en

232 kB

Motorised positioning systems

1,1 MB

Step motor: software and handbook

5,2 MB

Drawings

Item selection/filter

Order No.	Item	Transmission ratio	Form	Form definition	Control alignment	L	B	H	D	Surface finish body
21085-02-1102021	Rotary Positioning Table	20:1	C	stepper motor with control	right	209	123	55	32	anodised
21085-02-1102022	Rotary Positioning Table	20:1	C	stepper motor with control	beneath	209	123	55	32	anodised
21085-02-1102023	Rotary Positioning Table	20:1	C	stepper motor with control	left	209	123	55	32	anodised
21085-02-1102024	Rotary Positioning Table	20:1	C	stepper motor with control	above	209	123	55	32	anodised
21085-02-1104021	Rotary Positioning Table	40:1	C	stepper motor with control	right	209	123	55	32	anodised
21085-02-1104022	Rotary Positioning Table	40:1	C	stepper motor with control	beneath	209	123	55	32	anodised
21085-02-1104023	Rotary Positioning Table	40:1	C	stepper motor with control	left	209	123	55	32	anodised
21085-02-1104024	Rotary Positioning Table	40:1	C	stepper motor with control	above	209	123	55	32	anodised
