Bullseye levels in frame to screw on, Form B with flange

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Slides Guide rails Positioning stages Linear guide systems Position indicators
      - Level vials
        Bullseye levels in frame, to screw on
        Bullseye levels in frame to screw on, Form B with flange

Item description/product images

DescriptionMaterial:Frame brass.
Bullseye level body polyamide.Version:Nickel-plated and high-gloss polished.Note:Bubble levels are used as a type of zero indicator instrument for checking horizontal inclination in e.g. spirit levels, inclinometers, metrology instruments and machine constructions.
These bulleye levels can be recessed and fastened using the three holes.
- Calibrated to the underside of the flange
- Sensitivity in angular minutes for 2 mm bubble travel
- Clear filling
- Black contrast ring
- White level baseTemperature range:-35 °C up to +55 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21800_B Bullseye levels in frame to screw on, Form B with flange

188 kB

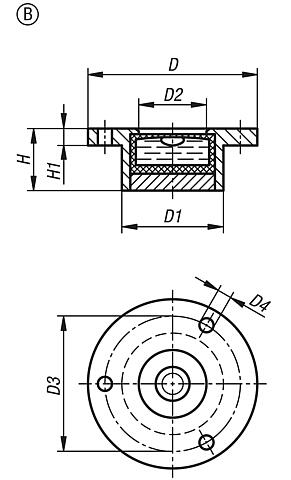

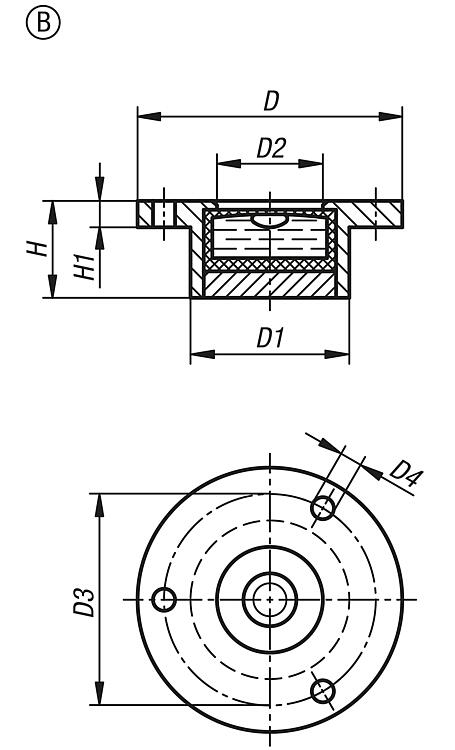

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	D3	D4	H	H1	Sensitivity
21800-2141030	B	20	14	10	17	1,6	10	1,8	30'
21800-2171030	B	25	17	12	21	2	10	2	30'
21800-2181130	B	30	18	12	24	2,5	11	3	30'
21800-2281430	B	40	28	20	34,5	2,5	14	4	30'
21800-2341530	B	50	34	25	43	3	15	5	30'
