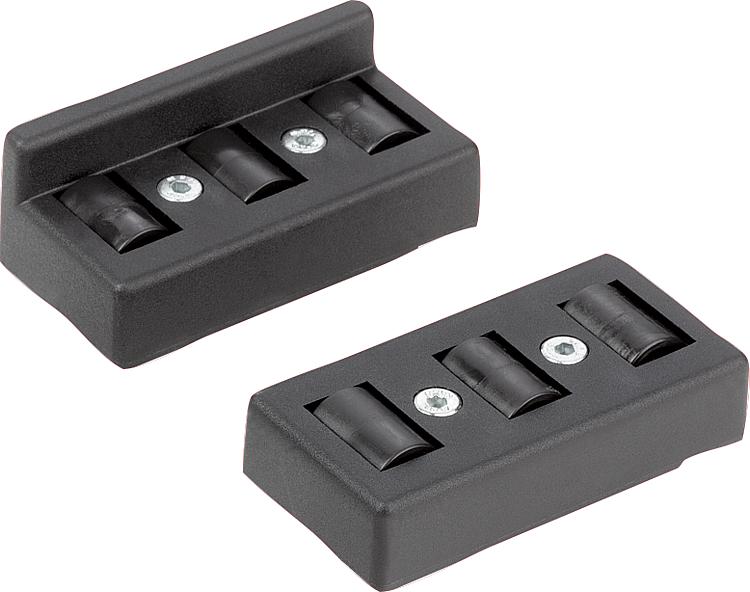

10450_BRoller elements, Form B |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing glass-bead reinforced polyamide.
Rollers POM.
Screws steel.Version:Housing and rollers black.
Screws electro zinc-plated.Note:The roller elements are suitable for the manufacture of roller conveyors in any length and width. Suitable for type B and I aluminium profiles. Due to the sprung guide tabs on the bottom, the elements will fit any 8 and 10 slots.
Attachment Form B
Insert the bottom of the housing and rollers into the slot on the aluminium profile. Bring the top of the housing into position and press down. Knocking in or screwing in the screws fastens and secures the roller element in the slot.
Alternatively, the clamps can be removed from the bottom of the housing and the roller element permanently screwed to the aluminium profile using screws and slot keys.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form
| Version 1 | Slot
width | Load
capacity
N | CAD | Acc. | Price | Order |
|---|
| 10450-2000 | B | without lateral guide | 8/10 | 100 |  | | 0.00 € | | | 10450-2100 | B | with lateral guide | 8/10 | 100 | | | 0.00 € | |
