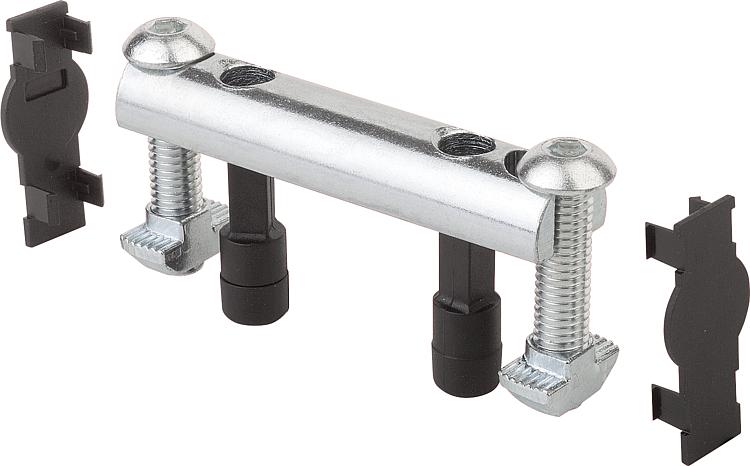

        Pin connector sets Type B

Item description/product images

DescriptionMaterial:Pins, screws and T-nuts steel.
Locating pin und end caps polyamide, fibreglass reinforced.
Version:Pins, screws and T-nuts electro zinc-plated.

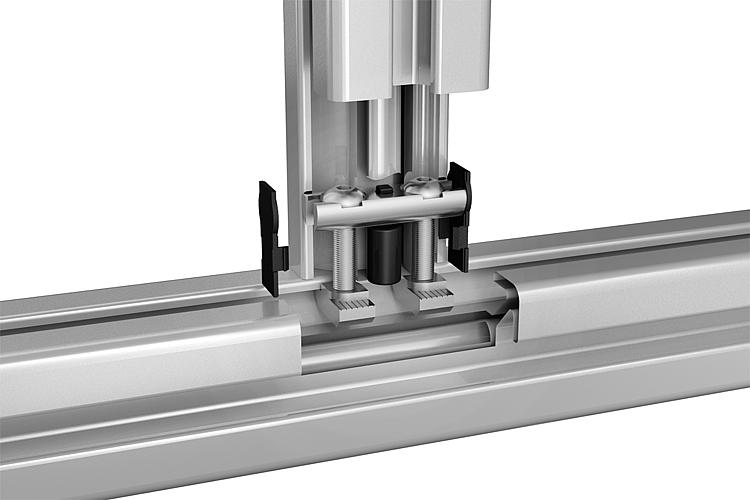

Locating pin and end caps black.Note:The connecting sets are used to connect two aluminium profiles at right angles. They allow free position of the profiles. Suitable for high loads and torsional forces.

Low processing workload. The connecting set requires only one Ø17 mm hole drilled in one end for installation.

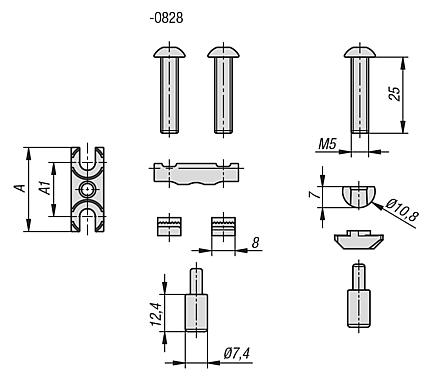

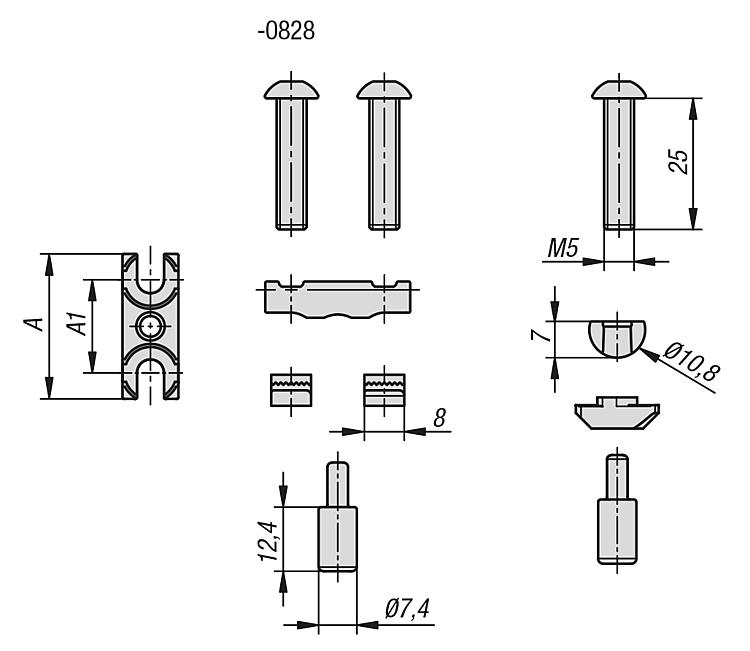

The connecting set 10215-0828 requires only one Ø11 mm hole drilled in one end for installation.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 10215 Pin connector sets Type B

282 kB

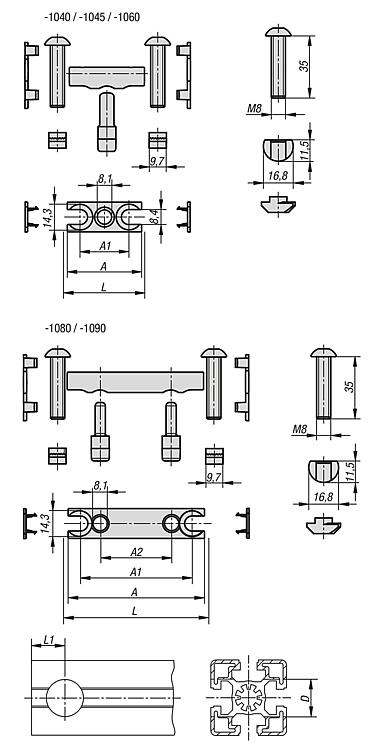

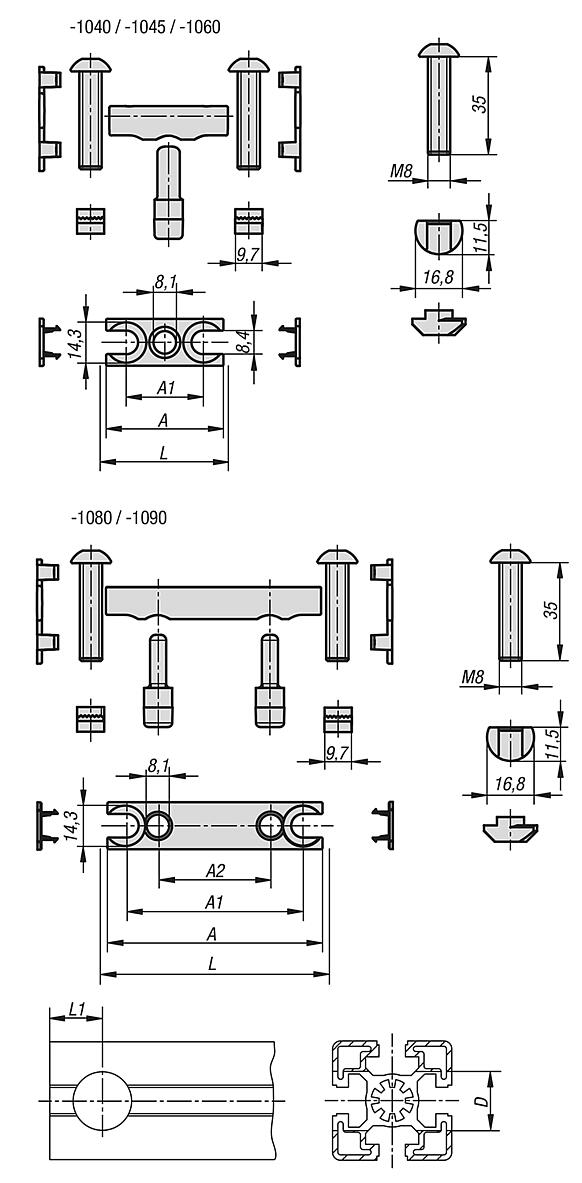

Drawings

Item selection/filter

Order No.	Type	Slot width	A	A1	A2	D	L	L1
10215-0828	B	8	28	18	-	11	-	18
10215-1040	B	10	37	23	-	17	40	22,5
10215-1045	B	10	42	28	-	17	45	22,5
10215-1060	B	10	57	43	-	17	60	22,5
10215-1080	B	10	77	63	40	17	80	22,5
10215-1090	B	10	87	73	45	17	90	22,5
