        Swivel castors compact version
        Swivel castors compact version, Form B

Item description/product images

DescriptionMaterial:Housing steel plate, trivalent blue passivated.
Roller light brown polyurethane, Shore 92 A
or white polyamide, Shore 80 D.Version:Housing press formed.
Swivel castor housing with 2x ball bearing in the swivel head and ball shield.
Roller with two pressed-in ball bearings.Note:Wheel axle bolted.

Polyurethane roller: low-noise, low rolling resistance, elastic, floor-protecting, very wear resistant , non-staining.

Polyamide roller: very low roll and pivot resistance, smooth running on smooth floors, very wear resistant.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95045_B Swivel castors compact version, Form B

483 kB

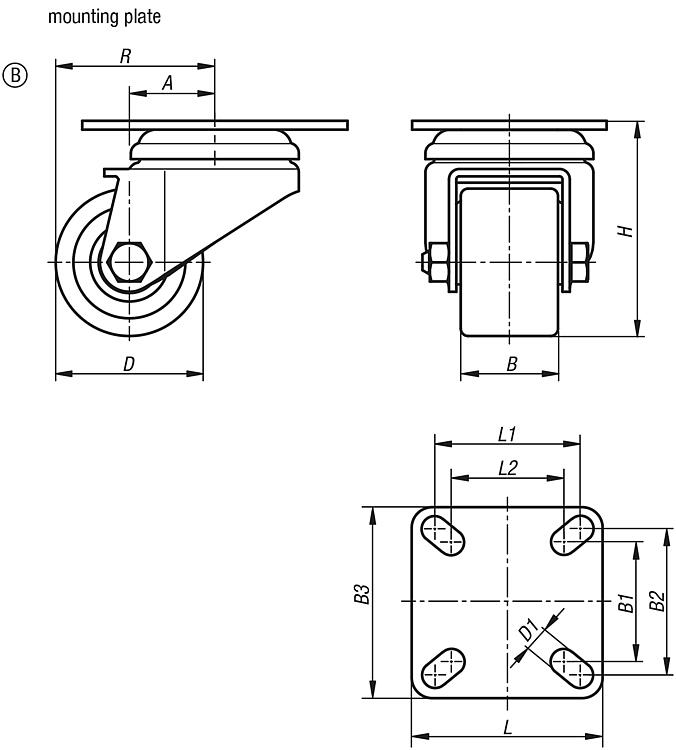

Drawings

Item selection/filter

Order No.	Form	Item	Version 1	Kind of fastening	Wheel bearing	Material roller	A	B	B1	B2	B3	D	D1	H	L	L1	L2	R	Permissible load kg	CAD	Acc.	Price	Order
95045-0352711	B	Swivel castor	without locking system	mounting plate	ball bearing	polyurethane	15	27	38	48	60	35	6,2	52	60	48	38	32,5	100			0.00 €
95045-0352812	B	Swivel castor	without locking system	mounting plate	ball bearing	polyamide	15	28	38	48	60	35	6,2	52	60	48	38	32,5	100			0.00 €
