        Swivel castors compact version, Form A

Item description/product images

DescriptionMaterial:Housing steel plate, trivalent blue passivated.
Roller light brown polyurethane, Shore 92 A
or white polyamide, Shore 80 D.Version:Housing press formed.
Swivel castor housing with 2x ball bearing in the swivel head and ball shield.
Roller with two pressed-in ball bearings.Note:Wheel axle bolted.

Polyurethane roller: low-noise, low rolling resistance, elastic, floor-protecting, very wear resistant , non-staining.

Polyamide roller: very low roll and pivot resistance, smooth running on smooth floors, very wear resistant.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95045_A Swivel castors compact version, Form A

537 kB

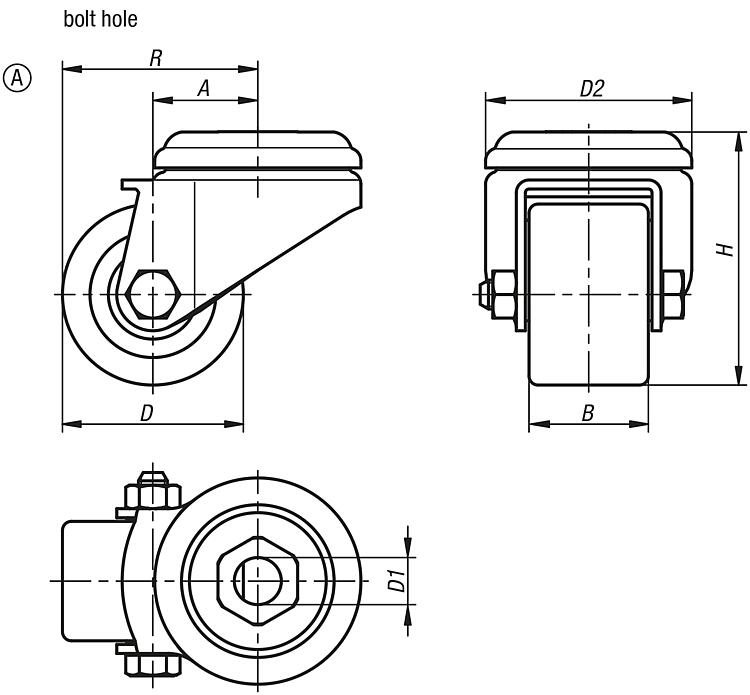

Drawings

Item selection/filter

Order No.	Form	Item	Version 1	Kind of fastening	Wheel bearing	Material roller	A	B	D	D1	D2	H	R	Permissible load kg
95045-0352701	A	Swivel castor	without locking system	bolt hole	ball bearing	polyurethane	15	27	35	11	43	50	32,5	100
95045-0352802	A	Swivel castor	without locking system	bolt hole	ball bearing	polyamide	15	28	35	11	43	50	32,5	100
95045-0503301	A	Swivel castor	without locking system	bolt hole	ball bearing	polyurethane	29	33	50	13	57	70	54	150
95045-0503202	A	Swivel castor	without locking system	bolt hole	ball bearing	polyamide	29	32	50	13	57	70	54	150
