        Workholding cubes, grey cast iron with T-slots

Item description/product images

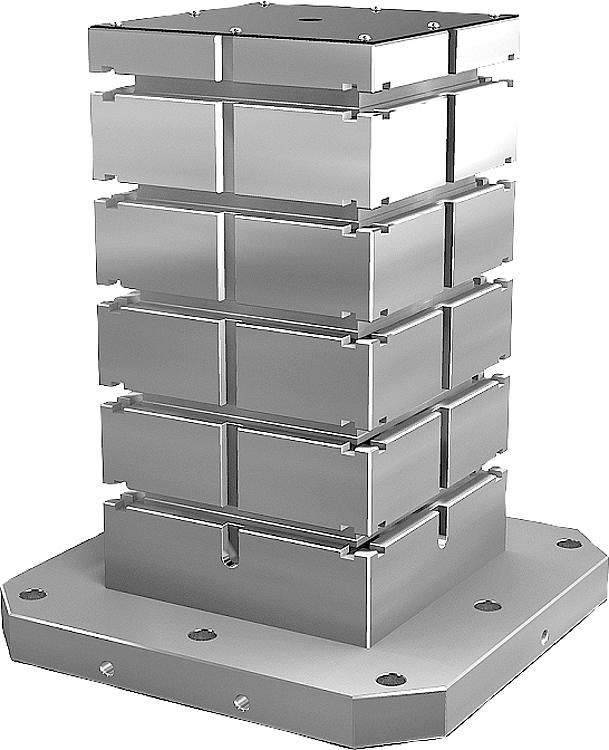

DescriptionMaterial:GJL 300.Version:Support and mounting surfaces precision machinedNote:Workholding cubes with T-slots are used for constructing modular fixtures on horizontal machines.
The precise longitudinal and transverse slot spacing ensures very high repeat clamping accuracy.
The workholding cubes conform to machine tables for machine tools acc. to DIN 55201 and JIS 6337-1980.
Please order locating pins for positioning subplates on machine tables acc. to DIN 55201 separately.
Ring bolts for hoisting are supplied.
Other dimensions available on request.Drawing reference:

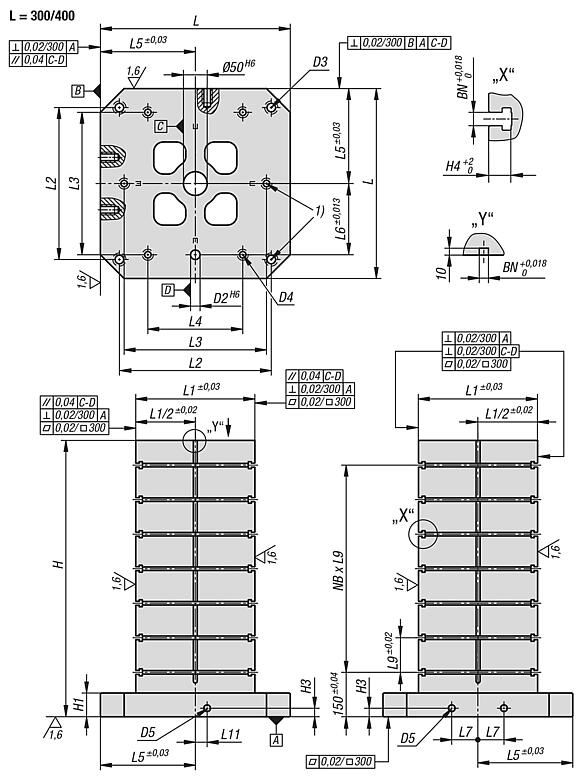

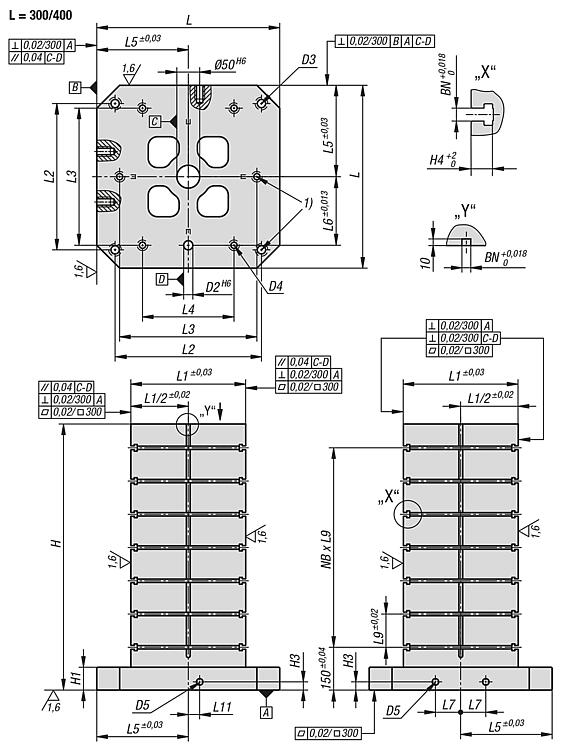

1) hole for DIN 912 cap screw (D3/D4)

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 01850 Workholding cubes, grey cast iron with T-slots

388 kB

Technical information for positioning basic elements on machine tables

1,5 MB

Drawings

Item selection/filter

Order No.	L	H	H4	H1	D2	D3	D4	D5	H3	L1	L2	L3	L4	L5	L6	L7	L9	L11	BN=Slot width	NB= No. across
