Item description/product images

DescriptionMaterial:Steel.Version:Grade 10.
Plastic-coated, red.

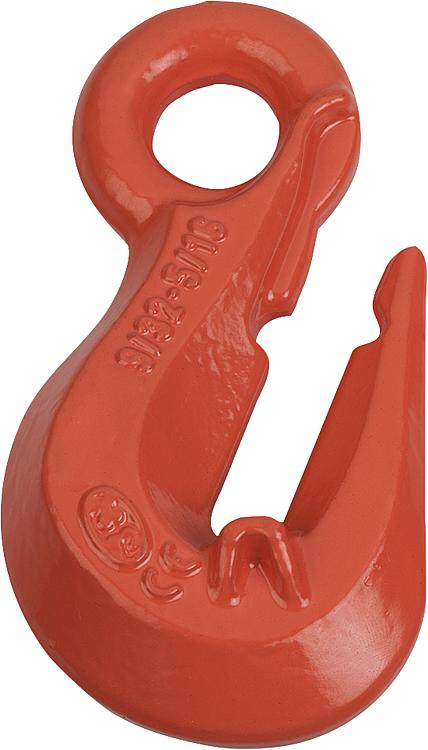

Note:The shortening hook is for incorporating into single or multiple strand chains and is used to shorten the chain.

Shortening hooks are permissible for lifting, but not for lashing since they do not have a latch to prevent unintentional unhooking.

The shortening hooks correspond to the Machinery Directive and are BG certified (H stamp).
Temperature range:From -40°C to 200°C = 100% permissible load
Up to 300°C = 90% permissible load
Up to 400°C = 75% permissible load
Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 07793_A Eye shortening hooks, Form A, grade 10 177 kB


Eye shortening hooks, Form A, grade 10

Item selection/filter

Order No.Formfor chain

07793-11001400A688,51251,5222235,51400 8.26 €
07793-11002500A7-8101117693028472500 9.86 €
07793-11004000A1013152286,54434554000 15.96 €
07793-11006700A13171826110,55347816700 33.26 €
07793-11010000A1619213212964609210000 54.00 €
