        Hexagon nuts with polyamide thread lock, thin type DIN 985 enhanced

Item description/product images

DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel electro zinc-plated.
Stainless steel A2, bright.
Stainless steel A4, bright.Note:When the nut is screwed onto the thread, the plastic ring is plastically and elastically deformed. The elastic part causes a radially acting, frictional lock that prevents the nut loosening.

The plastic thread lock is only effective when the hex nut is completely on the screw. The length of the screw should be selected so that at least two threads protrude from the nut.

Due to the plastic deformation of the thread lock, this hex nut may only be used once.

The maximum nut height H max. is shown in the table.
Temperature range:-50°C to +120°C.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07214 Hexagon nuts with polyamide thread lock, thin type DIN 985 enhanced

174 kB

Grades

124 kB

Overview of standards for fasteners

687 kB

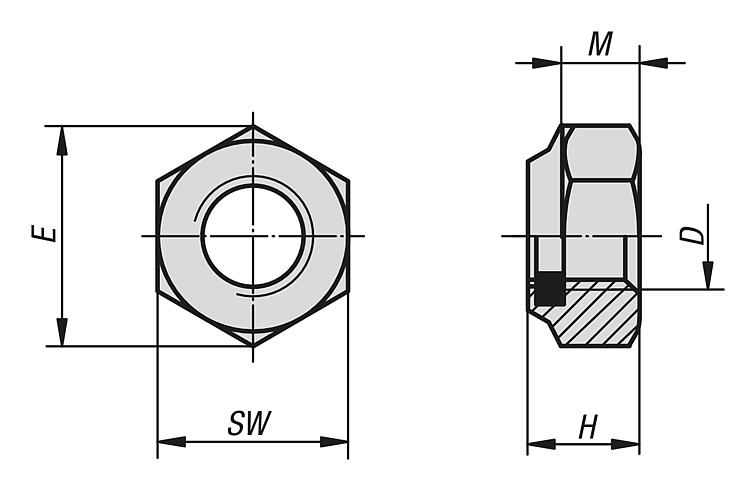

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Main material	Grade	D	E	H	M	SW	DIN
07214-203	steel	6-8	M3	6,08	4	2,4	5,5	DIN 985
07214-204	steel	6-8	M4	7,66	5	2,9	7	DIN 985
07214-205	steel	6-8	M5	8,79	5	3,2	8	DIN 985
07214-206	steel	8	M6	11,05	6	4	10	DIN 985
07214-208	steel	8	M8	14,38	8	5,5	13	DIN 985
07214-210	steel	8	M10	18,9	10	6,5	17	DIN 985
07214-212	steel	8	M12	21,1	12	8	19	DIN 985
07214-214	steel	8	M14	23,9	14	9,5	22	DIN 985
07214-216	steel	8	M16	26,76	16	10,5	24	DIN 985
07214-220	steel	8	M20	32,95	20	14	30	DIN 985
07214-224	steel	8	M24	39,55	24	15	36	DIN 985
07214-227	steel	8	M27	45,2	27	17	41	DIN 985
07214-230	steel	8	M30	50,85	30	19	46	DIN 985
07214-306	steel	10	M6	11,05	6	4	10	DIN 985
07214-308	steel	10	M8	14,38	8	5,5	13	DIN 985
07214-310	steel	10	M10	18,9	10	6,5	17	DIN 985
07214-312	steel	10	M12	21,1	12	8	19	DIN 985
07214-314	steel	10	M14	23,9	14	9,5	22	DIN 985
07214-316	steel	10	M16	26,76	16	10,5	24	DIN 985
07214-320	steel	10	M20	32,95	20	14	30	DIN 985
07214-324	steel	10	M24	35	24	15	36	DIN 985
07214-327	steel	10	M27	45,2	27	17	41	DIN 985
07214-330	steel	10	M30	50,85	30	19	46	DIN 985
07214-103	stainless steel A2	70	M3	6,08	4	2,4	5,5	similar to DIN 985
07214-104	stainless steel A2	70	M4	7,66	5	2,9	7	similar to DIN 985
07214-105	stainless steel A2	70	M5	8,79	5	3,2	8	similar to DIN 985
07214-106	stainless steel A2	70	M6	11,05	6	4	10	similar to DIN 985
07214-108	stainless steel A2	70	M8	14,38	8	5,5	13	similar to DIN 985
07214-110	stainless steel A2	70	M10	18,9	10	6,5	17	similar to DIN 985
07214-112	stainless steel A2	70	M12	21,1	12	8	19	similar to DIN 985
07214-114	stainless steel A2	70	M14	23,9	14	9,5	22	similar to DIN 985
07214-116	stainless steel A2	70	M16	26,76	16	10,5	24	similar to DIN 985
07214-120	stainless steel A2	70	M20	32,95	20	14	30	similar to DIN 985
07214-124	stainless steel A2	70	M24	39,55	24	15	36	similar to DIN 985
07214-127	stainless steel A2	70	M27	45,2	27	17	41	similar to DIN 985
07214-130	stainless steel A2	70	M30	50,85	30	19	46	similar to DIN 985
07214-603	stainless steel A4	-	M3	6,08	4	2,4	5,5	similar to DIN 985
07214-604	stainless steel A4	-	M4	7,66	5	2,9	7	similar to DIN 985
07214-605	stainless steel A4	-	M5	8,79	5	3,2	8	similar to DIN 985
07214-606	stainless steel A4	-	M6	11,05	6	4	10	similar to DIN 985
07214-608	stainless steel A4	-	M8	14,38	8	5,5	13	similar to DIN 985
07214-610	stainless steel A4	-	M10	18,9	10	6,5	17	similar to DIN 985
07214-612	stainless steel A4	-	M12	21,1	12	8	19	similar to DIN 985
07214-614	stainless steel A4	-	M14	23,9	14	9,5	22	similar to DIN 985
07214-616	stainless steel A4	-	M16	26,76	16	10,5	24	similar to DIN 985
07214-620	stainless steel A4	-	M20	32,95	20	14	30	similar to DIN 985
07214-624	stainless steel A4	-	M24	39,55	24	15	36	similar to DIN 985
07214-627	stainless steel A4	-	M27	45,2	27	17	41	similar to DIN 985
07214-630	stainless steel A4	-	M30	50,85	30	19	46	similar to DIN 985
