Threaded hooks type 11E and type 4E, steel

go back

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Connecting elements
        Threaded hooks type 11E and type 4E, steel

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:Steel threaded hooks types 11E and 4E have been specially designed for machine construction and offer reliable solutions for a multitude of fastening applications. They are made from high quality steel and guarantee a robust construction with high permissible loads. The precisely machined threads enable easy installation and offer secure fastening. Their versatility makes them ideal for securing machine components, tools and other equipment. Our threaded hooks offer durability and are a reliable choice for demanding uses in machine construction.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

07182-05_Datasheet_32779_Threaded_hooks_type_11E_and_type_4E_steel--en

143 kB

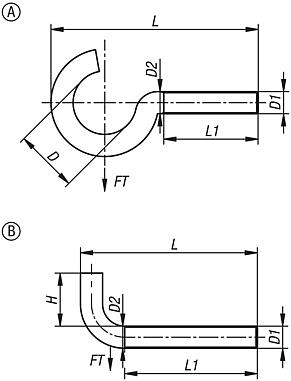

Drawings (total overview)

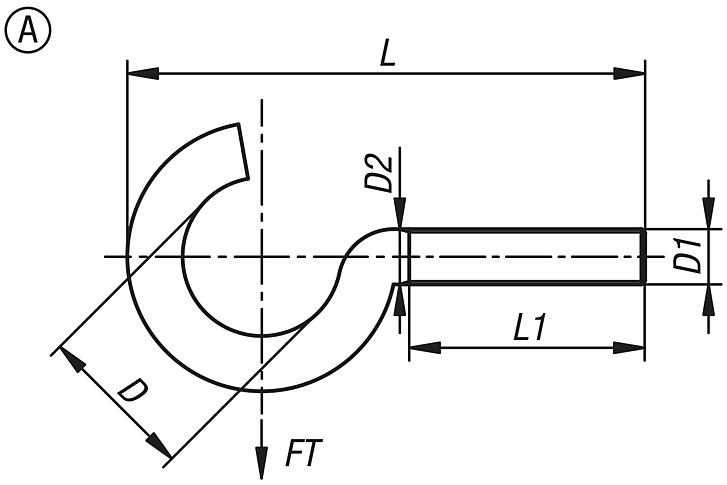

Threaded hooks type 11E and type 4E, steel, Form A

More information

Drawings

Threaded hooks type 11E and type 4E, steel, Form A

Item selection/filter

Order No.	Form	Form definition	Version 1	D	D1	D2	H	L	L1	max. permissible load kg
07182-05-00440	A	cranked	Type 11E	12	M4	3,5	-	40	20	9
07182-05-00450	A	cranked	Type 11E	16	M4	3,5	-	50	25	9
07182-05-00550	A	cranked	Type 11E	16	M5	4,4	-	50	23	12,5
07182-05-00560	A	cranked	Type 11E	16	M5	4,4	-	60	30	12,5
07182-05-00650	A	cranked	Type 11E	18	M6	5,2	-	50	20	25
07182-05-00660	A	cranked	Type 11E	18	M6	5,2	-	60	30	25
07182-05-00870	A	cranked	Type 11E	22	M8	7	-	70	32	40
07182-05-00880	A	cranked	Type 11E	22	M8	7	-	80	42	40

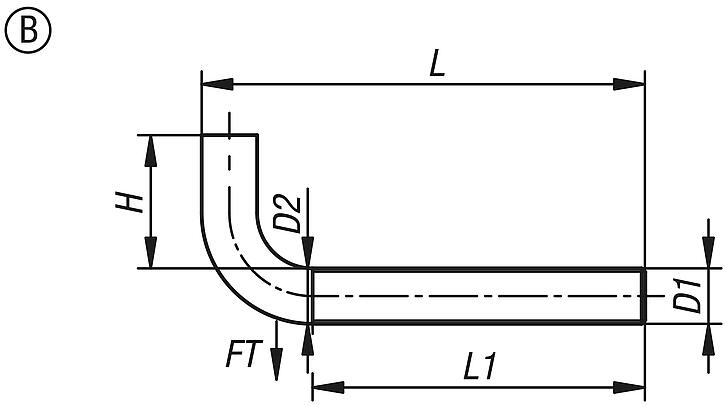

Threaded hooks type 11E and type 4E, steel, Form B

More information

Drawings

Threaded hooks type 11E and type 4E, steel, Form B

Item selection/filter

Order No.	Form	Form definition	Version 1	D1	D2	H	L	L1	max. permissible load kg
07182-05-10440	B	straight	Type 4E	M4	3,5	10	40	25	12,5
07182-05-10550	B	straight	Type 4E	M5	4,4	12	50	35	20
07182-05-10660	B	straight	Type 4E	M6	5,2	14	60	45	35
07182-05-10860	B	straight	Type 4E	M8	7	18	60	45	50
