        Ledge handles, aluminium, mounted from the front or rear

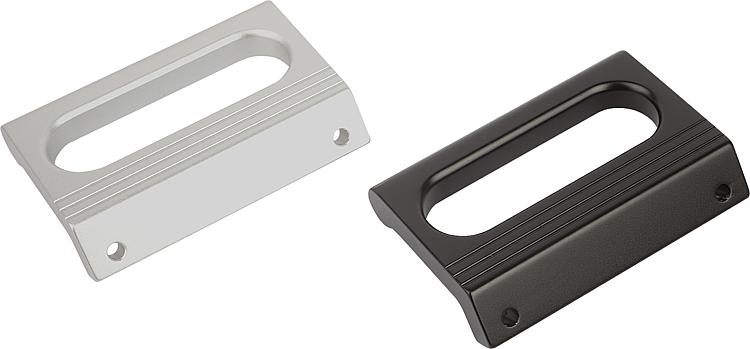

Item description/product images

DescriptionMaterial:Profile aluminium EN AW-6060Version:Matt-gloss anodised.Note:These ledge handles are available with M6 internal thread or with through hole for M5 countersunk screws for front mounting.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06952_B Ledge handles, aluminium, mounted from the front or rear

112 kB

Drawings

Item selection/filter

Order No.	Form	Main colour	A	D	H	L	T	Load capacity N
06952-086051	B	black anodised	86	5,5	59	106	50	500
06952-100051	B	black anodised	100	5,5	59	120	50	500
06952-120051	B	black anodised	120	5,5	59	140	50	500
06952-086053	B	natural anodised	86	5,5	59	106	50	500
06952-100053	B	natural anodised	100	5,5	59	120	50	500
06952-120053	B	natural anodised	120	5,5	59	140	50	500
