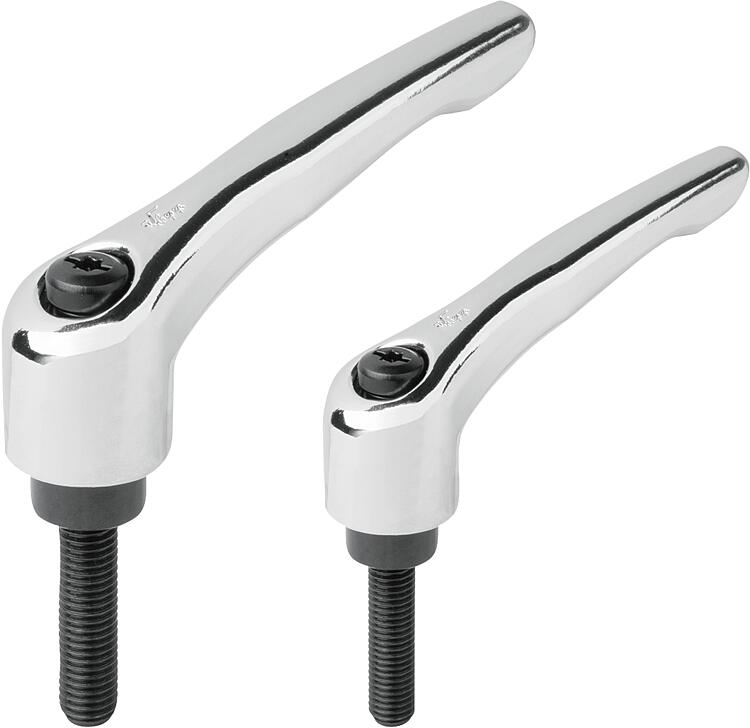

        Clamping levers external thread, high-gloss chromed

Item description/product images

DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle high-gloss chromed.
Steel parts black oxidised.On request:Other threads, screw lengths, colours and special versions.
Dimension “H1” available in other lengths at extra charge.Drawing reference:

1) flat point DIN EN ISO 4753

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06460_HV Clamping levers external thread, high-gloss chromed

224 kB

Drawings

Item selection/filter

Order No.	Main colour	Surface finish body	Size	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	L
06460-9036X6	silver	high-gloss chromed	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6
06460-9036X10	silver	high-gloss chromed	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10
06460-9036X15	silver	high-gloss chromed	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15
06460-9036X20	silver	high-gloss chromed	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20
06460-9046X10	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10
06460-9046X15	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15
06460-9046X20	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20
06460-9046X25	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25
06460-9046X30	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30
06460-9046X35	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35
06460-9056X10	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10
06460-9056X15	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15
06460-9056X20	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20
06460-9056X25	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25
06460-9056X30	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30
06460-9056X35	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35
06460-0036X6	silver	high-gloss chromed	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6
06460-0036X10	silver	high-gloss chromed	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10
06460-0036X15	silver	high-gloss chromed	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15
06460-0036X20	silver	high-gloss chromed	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20
06460-0046X10	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10
06460-0046X15	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15
06460-0046X20	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20
06460-0046X25	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25
06460-0046X30	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30
06460-0046X35	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35
06460-0046X40	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40
06460-0046X45	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45
06460-0046X50	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50
06460-0056X10	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10
06460-0056X15	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15
06460-0056X20	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20
06460-0056X25	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25
06460-0056X30	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30
06460-0056X35	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35
06460-0056X40	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40
06460-0056X45	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45
06460-0056X50	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50
06460-1056X10	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10
06460-1056X15	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15
06460-1056X20	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20
06460-1056X25	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25
06460-1056X30	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30
06460-1056X35	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35
06460-1056X40	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40
06460-1056X45	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45
06460-1056X50	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50
06460-1066X10	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10
06460-1066X15	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15
06460-1066X20	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20
06460-1066X25	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25
06460-1066X30	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30
06460-1066X35	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35
06460-1066X40	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40
06460-1066X45	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45
06460-1066X50	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50
06460-2066X15	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15
06460-2066X20	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20
06460-2066X25	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25
06460-2066X30	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30
06460-2066X35	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35
06460-2066X40	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40
06460-2066X45	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45
06460-2066X50	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50
06460-2066X55	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55
06460-2066X60	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60
06460-2086X15	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15
06460-2086X20	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20
06460-2086X25	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25
06460-2086X30	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30
06460-2086X35	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35
06460-2086X40	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40
06460-2086X45	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45
06460-2086X50	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50
06460-2086X55	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55
06460-2086X60	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60
06460-2106X15	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15
06460-2106X20	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20
06460-2106X25	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25
06460-2106X30	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30
06460-2106X35	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35
06460-2106X40	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40
06460-2106X45	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45
06460-2106X50	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50
06460-2106X55	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55
06460-2106X60	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60
06460-3086X15	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15
06460-3086X20	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20
06460-3086X25	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25
06460-3086X30	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30
06460-3086X35	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35
06460-3086X40	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40
06460-3086X45	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45
06460-3086X50	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50
06460-3086X55	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55
06460-3086X60	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60
06460-3106X15	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15
06460-3106X20	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20
06460-3106X25	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25
06460-3106X30	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30
06460-3106X35	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35
06460-3106X40	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40
06460-3106X45	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45
06460-3106X50	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50
06460-3106X55	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55
06460-3106X60	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60
06460-4106X20	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20
06460-4106X25	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25
06460-4106X30	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30
06460-4106X35	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35
06460-4106X40	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40
06460-4106X45	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45
06460-4106X50	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50
06460-4106X55	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55
06460-4106X60	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60
06460-4106X70	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70
06460-4106X80	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80
06460-4106X90	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90
06460-4126X20	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20
06460-4126X25	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25
06460-4126X30	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30
06460-4126X35	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35
06460-4126X40	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40
06460-4126X45	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45
06460-4126X50	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50
06460-4126X55	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55
06460-4126X60	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60
06460-4126X70	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70
06460-4126X80	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80
06460-4126X90	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90
06460-5126X25	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25
06460-5126X30	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30
06460-5126X35	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35
06460-5126X40	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40
06460-5126X45	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45
06460-5126X50	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50
06460-5126X55	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55
06460-5126X60	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60
06460-5126X70	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70
06460-5126X80	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80
06460-5126X90	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90
06460-5166X25	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25
06460-5166X30	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30
06460-5166X35	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35
06460-5166X40	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40
06460-5166X45	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45
06460-5166X50	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50
06460-5166X55	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55
06460-5166X60	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60
06460-5166X70	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70
06460-5166X80	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80
06460-5166X90	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90
