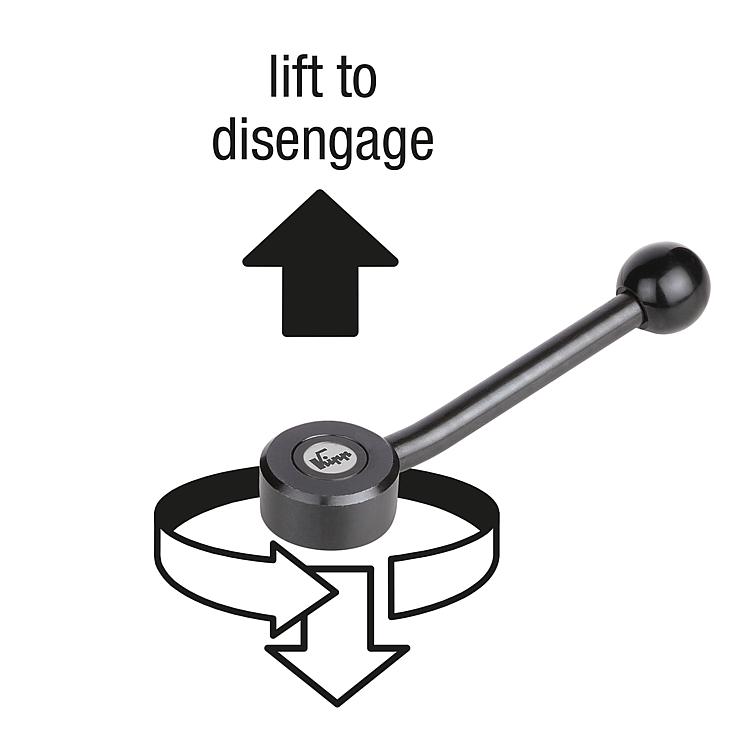

        Tension levers, flat, internal thread

Item description/product images

Show/filter all items

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.Version:Black oxidised.On request:Other threads and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06390 Tension levers flat internal thread

206 kB

Drawings (total overview)

Tension levers, flat, internal thread, 0°

More information

Drawings

Tension levers, flat, internal thread, 0°

Item selection/filter

Order No.	Form	X	T	A=Handle length	D	D1	D2	D3	H	H1	H2	H3	No. of teeth
06390-1061	0°	M6	18	102	13,5	33	25	10	19	2	12	23	26
06390-1081	0°	M8	18	102	13,5	33	25	10	19	2	12	23	26
06390-2101	0°	M10	21	131	19	41	30	12	22	2	13,5	26	30
06390-2121	0°	M12	21	131	19	41	30	12	22	2	13,5	26	30
06390-3121	0°	M12	27	148	23	45	37	14	28	2	17	33	36
06390-3161	0°	M16	27	148	23	45	37	14	28	2	17	33	36

Tension levers, flat, internal thread, 15°

More information

Drawings

Tension levers, flat, internal thread, 15°

Item selection/filter

Order No.	Form	X	T	A=Handle length	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth
06390-1062	15°	M6	18	100	15	13,5	33	25	10	19	2	12	23	29	26
06390-1082	15°	M8	18	100	15	13,5	33	25	10	19	2	12	23	29	26
06390-2102	15°	M10	21	127	15	19	41	30	12	22	2	13,5	26	38	30
06390-2122	15°	M12	21	127	15	19	41	30	12	22	2	13,5	26	38	30
06390-3122	15°	M12	27	145	15	23	45	37	14	28	2	17	33	48	36
06390-3162	15°	M16	27	145	15	23	45	37	14	28	2	17	33	48	36
