05837-26_BPush-pull toggle clamps, steel, retaining force up to 3575 N,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Electro zinc-plated steel.
Plastic handle, oil-resistant.Note:Form A: The clamps lock in the closed grip position.
They can thus only be used for thrust clamping.
Form B and C: The clamps lock in the open and closed grip positions.
They can be used for thrust or tractive clamping.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

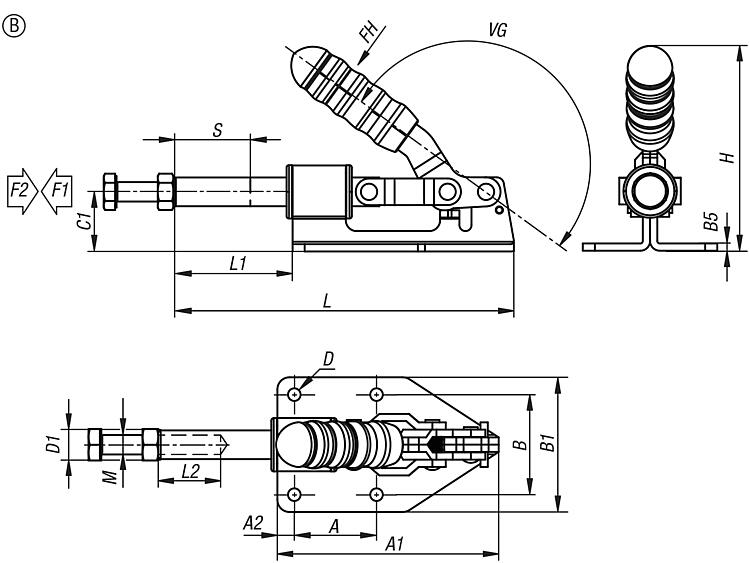

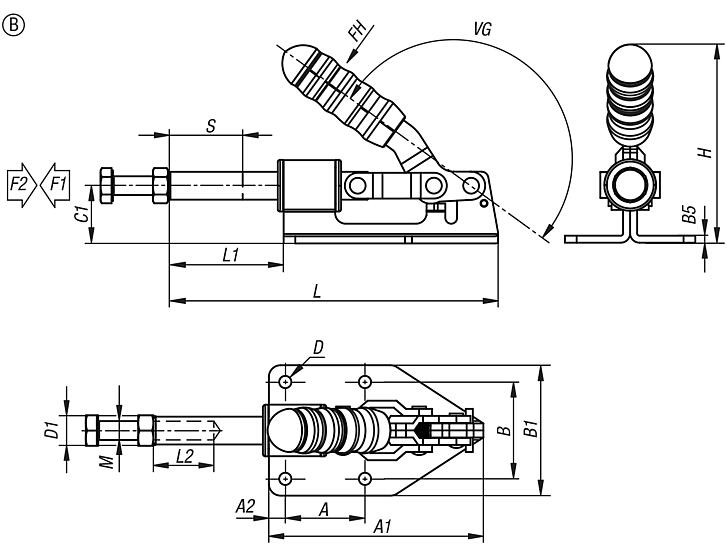

| Order No. | Form | A | A1 | A2 | B
| B1 | B5 | C1 | D | D1 | H | Travel
S | L | L1 | L2 | M | Opening
angle of
handle | Hand
force
FH N | Clamping
force
F1 N | Retaining
force
F2 N | CAD | Acc. | Price | Order |
|---|
| 05837-26-018002 | B | 34 | 91,5 | 7 | 41,3 | 55,6 | 3 | 24,6 | 5,2 | 11,9 | 84,5 | 31,8 | 140,8 | 49,3 | 25,4 | M8x50 | 180° | 50 | 1200 | 1800 |  | | 0.00 € | |
