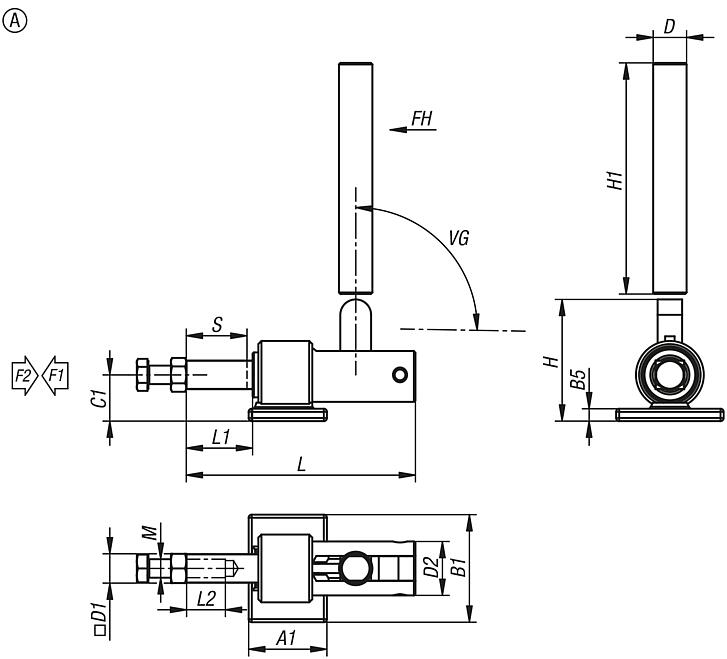

DescriptionMaterial:Steel.Version:Steel electro zinc-plated.Note:Form A: The clamps lock in the closed grip position.
They can thus only be used for thrust clamping.
The clamps lock in the open and closed grip positions.
They can be used for thrust or tractive clamping.Assembly:By welding or through holes drilled by the user.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | A1 | B1 | B5 | C1 | D
| D1 | D2 | H | H1 | Travel
S | L | L1 | L2 | M | Opening
angle of
handle | Hand
force
FH N | Clamping
force
F1 N | Retaining
force
F2 N | CAD | Acc. | Price | Order |
|---|
| 05837-22-0111501 | A | 50,8 | 69,8 | 8 | 30 | 21,7 | 18,6 | 35 | 79 | 150 | 43,8 | 148,8 | 46,8 | 25,4 | M12x50 | 91° | 120 | 3800 | 11150 |  | | 0.00 € | | | 05837-22-0222501 | A | 70 | 90 | 11,1 | 40 | 27,2 | 25 | 45 | 87 | 150 | 55 | 198 | 65 | 38,1 | M16X50 | 88° | 140 | 4500 | 22250 | | | 0.00 € | |
