05837-20_APush-pull toggle clamps, steel, horizontal, retaining force up... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Electro zinc-plated steel.
Plastic handle, oil-resistant.Note:The clamps lock in the closed grip position.
They can thus only be used for thrust clamping.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

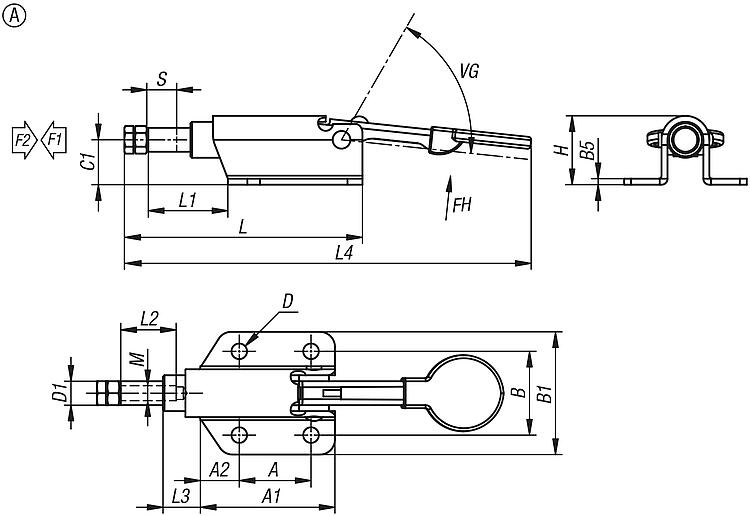

| Order No. | Form | A
| A1 | A2 | B | B1 | B5 | C1 | D | D1 | H | Travel
S | L | L1 | L2 | L3 | L4 | M | Opening
angle of
handle | Hand
force
FH N | Clamping
force
F1 N | Retaining
force
F2 N | CAD | Acc. | Price | Order |
|---|
| 05837-20-00500 | A | 24 | 45 | 13 | 28 | 41 | 2 | 15 | 5,2 | 8 | 23 | 10 | 72,1 | 27,1 | 19 | 12,5 | 128,5 | M5x15 | 66° | 40 | 400 | 500 |  | | 0.00 € | |
