        Push-pull toggle clamps, steel or stainless steel retaining force up to 3150 N
        Push-pull toggle clamps, steel or stainless steel, retaining force up to 3150 N, Form A

Item description/product images

DescriptionMaterial:Steel or stainless steel A2.Version:Electro zinc-plated steel.
Bright stainless steel.
Plastic handle, oil-resistant.Note:The clamps lock in the open and closed grip positions.
They can be used for thrust or tractive clamping.

Form C with square push rod for high torsional forces.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05837-10_A Push-pull toggle clamps, steel or stainless steel, retaining force up to 3150 N, Form A

179 kB

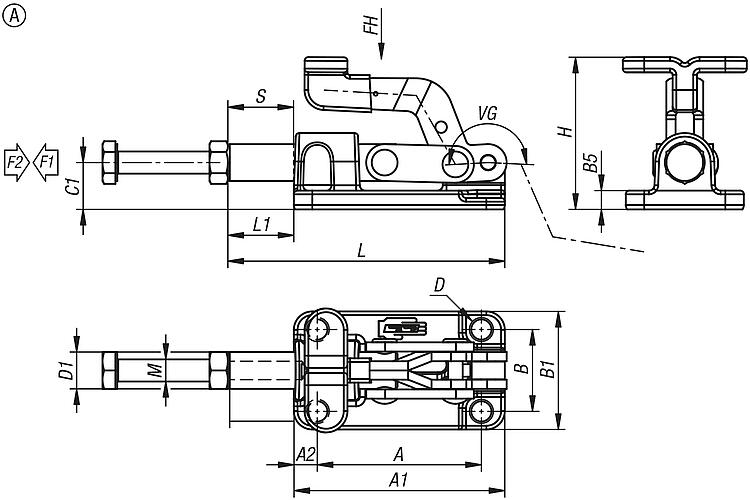

Drawings

Item selection/filter

Order No.	Form	Main material	A	A1	A2	B	B1	B5	C1	D	D1	H	Travel S	L	L1	M	Opening angle of handle	Hand force FH N	Clamping force F1 N	Retaining force F2 N	CAD	Acc.	Price	Order
05837-10-024501	A	steel	44,5	57,2	6,4	22,2	32	5,1	12,7	5,5	10	41,3	17,8	75,1	17,9	M6x50	186°	60	1500	2450			0.00 €
05837-10-124501	A	stainless steel A2	44,5	57,2	6,4	22,2	32	5,1	12,7	5,5	10	41,3	17,8	75,6	17,9	M6x50	186°	60	1500	2450			0.00 €
