Mini push-pull toggle clamps, steel or stainless steel with mounting bracket, Form B

05835-01_B

Mini push-pull toggle clamps, steel or stainless steel with...

Products
- Product overview
  - Flexible standard component system
    - Toggle clamps Pneumatic clamps Accessories for clamps Latches Quarter-turn locks
      - Toggle clamps
        Mini push-pull toggle clamps, steel or stainless steel with mounting bracket
        Mini push-pull toggle clamps, steel or stainless steel with mounting bracket, Form B

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Electro zinc-plated steel.
Bright stainless steel.
Plastic handle, oil-resistant.Note:The clamps lock in the open and closed handle positions.
They can be used for thrust or tractive clamping.

Version K1545.00500 has a nylon thrust spindle.
Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05835-01_B Mini push-pull toggle clamps, steel or stainless steel with mounting bracket, Form B

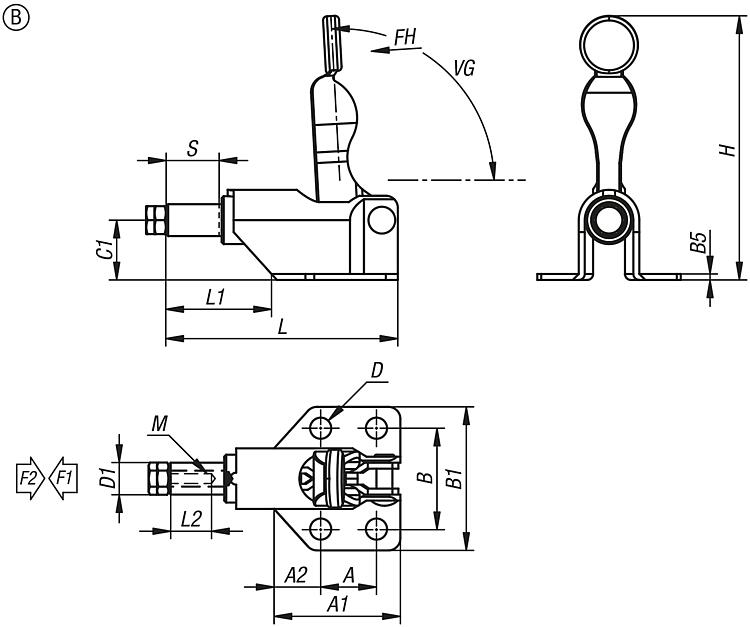

Drawings

Mini push-pull toggle clamps, steel or stainless steel with mounting bracket, Form B

Item selection/filter

Order No.	Form	Main material	A	A1	A2	B	B1	B5	C1	D	D1	H	Travel S	L	L1	L2	M	Opening angle of handle	Retaining force F2 N	Hand force FH N	Clamping force F1 N	CAD	Acc.	Price	Order
05835-01-005001	B	steel	14	31,7	11,7	25,3	36	1,5	15	5,3	8	66	13,3	58,1	26,4	15	M4x15	93°	500	40	400			0.00 €
