Horizontal latch clamps, steel or stainless steel, heavy-duty version with catch plate and red plastic grip
05827-01

Horizontal latch clamps, steel or stainless steel, heavy-duty...

go back

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Electro zinc-plated steel.
Bright stainless steel.
Plastic handle, oil-resistant.
Note:Latch toggle clamps are especially suitable for quickly closing and locking covers and hatches.
The travel can be set by altering the hasp length.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 05827-01 Toggle clamps latch horizontal heavy-duty with catch plate 286 kB

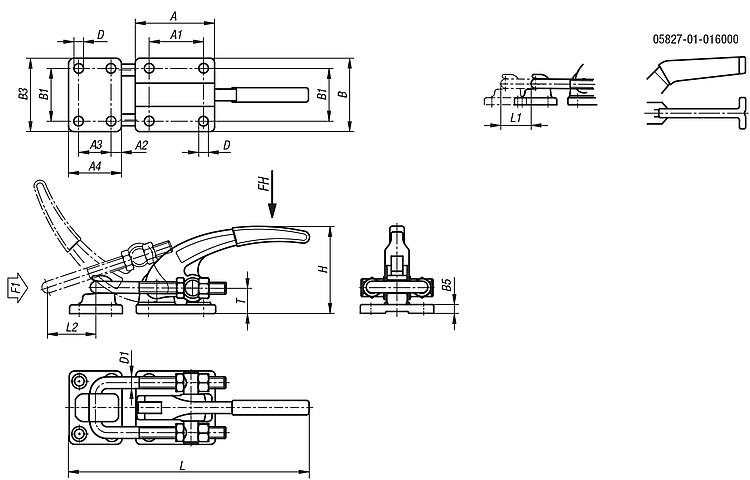

Drawings

Horizontal latch clamps, steel or stainless steel, heavy-duty version with catch plate and red plastic grip

Item selection/filter

Order No.Main
material
Hand
force
FH N
Traction
force
F1 N
A

A1A2A3A4BB1B3B5DD1HTravel
path
L min.
Travel
path
L max.
L1Clamping
travel
L2
TCADAcc.PriceOrder
05827-01-016000steel3001600085,857,2-34,957,279,457,280,59,610,39,695,5274,5297,322,88728,6 0.00 €
05827-01-030000steel5003000085,857,211,234,957,279,457,280,59,610,312,793,8249,627828,45028,6 0.00 €
05827-01-130000stainless steel5003000085,857,211,234,957,279,457,280,59,610,312,793,8249,627828,45028,6 0.00 €
