        Horizontal latch clamps, steel or stainless steel, with catch plate and red plastic grip

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Electro zinc-plated steel.
Bright stainless steel.
Plastic handle, oil-resistant.Note:Latch toggle clamps are especially suitable for quickly closing and locking covers and hatches.
The travel can be set by altering the hasp length.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05825-10 Toggle clamps latch horizontal with catch plate

351 kB

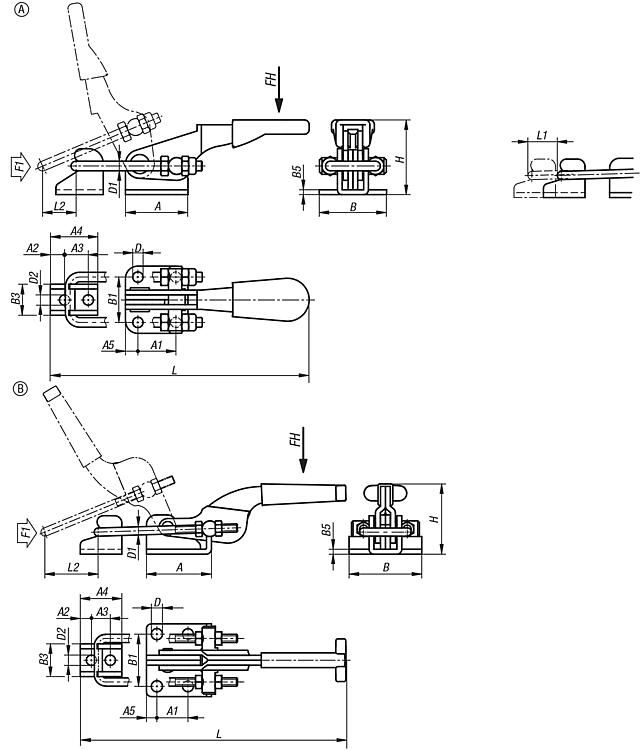

Drawings (total overview)

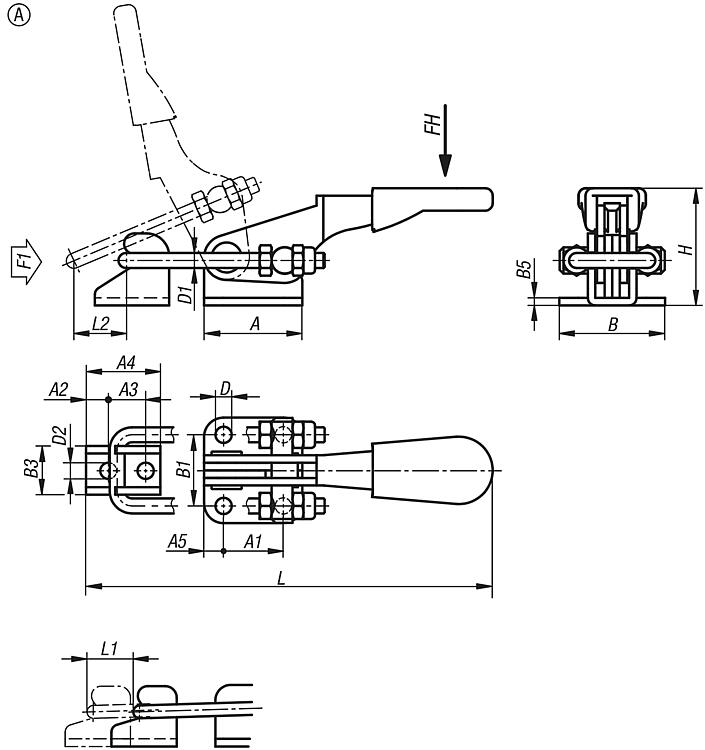

Toggle clamps latch horizontal with catch plate, Form A

More information

Drawings

Toggle clamps latch horizontal with catch plate, Form A

Item selection/filter

Order No.	Form	Main material	Hand force FH N	Traction force F1 N	A	A1	A2	A3	A4	A5	B	B1	B3	B5	D	D1	D2	H	Travel path L min.	Travel path L max.	L1	Clamping travel L2	CAD	Acc.	Price	Order
05825-10-01600	A	steel	100	1600	26,2	15,9	6	9,9	19,8	5,2	28,2	19	13	2	4,4	4	4,4	31,3	82,5	112,5	10,4	30			0.00 €
05825-10-11600	A	stainless steel	100	1600	26,2	15,9	6	9,9	19,8	5,2	28,2	19	13	2	4,4	4	4,4	31,3	82,5	112,5	10,4	30			0.00 €

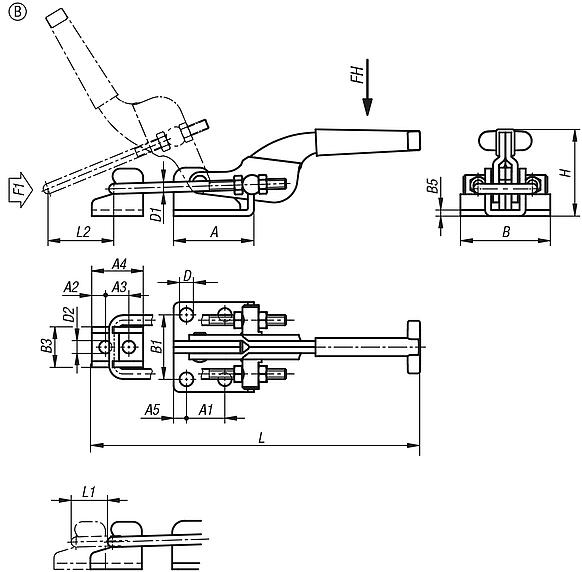

Toggle clamps latch horizontal with catch plate, Form B

More information

Drawings

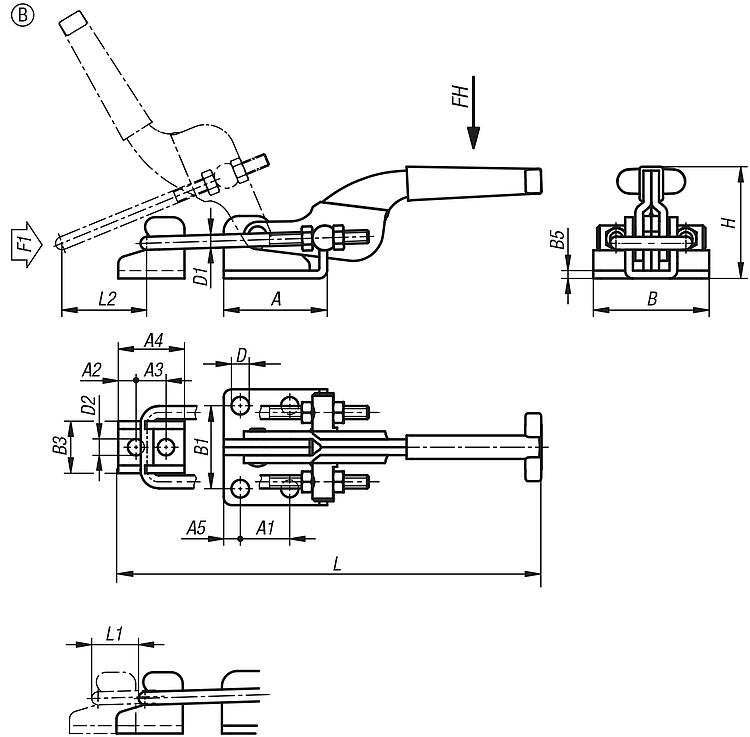

Toggle clamps latch horizontal with catch plate, Form B

Item selection/filter

Order No.	Form	Main material	Hand force FH N	Traction force F1 N	A	A1	A2	A3	A4	A5	B	B1	B3	B5	D	D1	D2	Travel path L min.	Travel path L max.	H	L1	Clamping travel L2
05825-10-03000	B	steel	150	3000	39,7	19	6,8	11,5	25,4	6,4	44,4	31,8	20	3	6,7	5	6,3	148,7	170,3	42	21,6	45
05825-10-07000	B	steel	200	7000	60,3	41,3	9,5	19,1	38,1	9,5	54	38,1	30,2	4	8,6	8	8,5	209,1	232,8	76,1	23,7	75
05825-10-13000	B	stainless steel	150	3000	39,7	19	6,8	11,5	25,4	6,4	44,4	31,8	20	3	6,7	5	6,3	148,7	170,3	42	21,6	45
05825-10-17000	B	stainless steel	200	7000	60,3	41,3	9,5	19,1	38,1	9,5	54	38,1	30,2	4	8,6	8	8,5	209,1	232,8	76,1	23,7	75
