Catch plate for adjustable latch, heavy-duty version
 05560

Catch plate for adjustable latch, heavy-duty version

 go back

Item description/product images
DescriptionMaterial:Steel.Version:Trivalent blue passivated.
Catch plate Form B (weldable), bright.Accessory:Latch 05560.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 05560 Catch plate for adjustable latch, heavy-duty version 154 kB

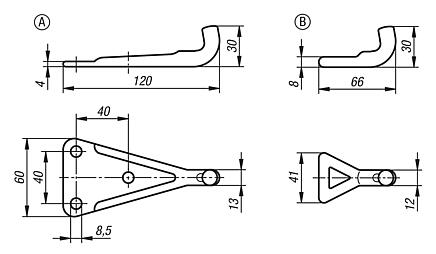

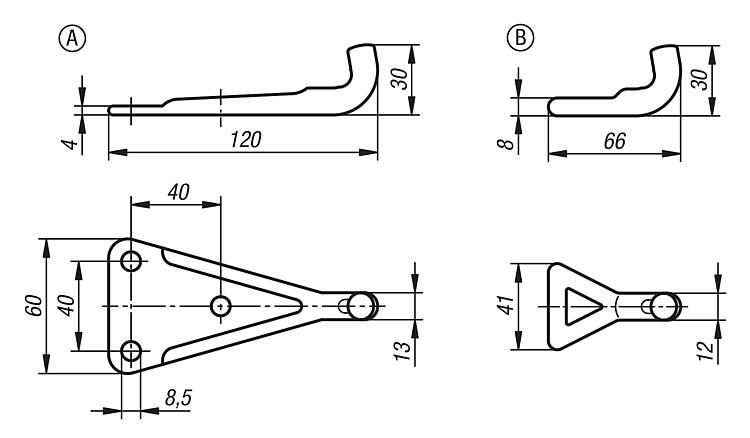

Drawings (total overview)

Catch plate for adjustable latch, heavy-duty version

Catch plate Form A, for adjustable latch, heavy-duty version

 More information

Drawings
Catch plate Form A, for adjustable latch, heavy-duty version

Item selection/filter
Order No.

FormSurface finish
body		CADAcc.PriceOrder
05560-91851201Agalvanised and passivated 0.00 €

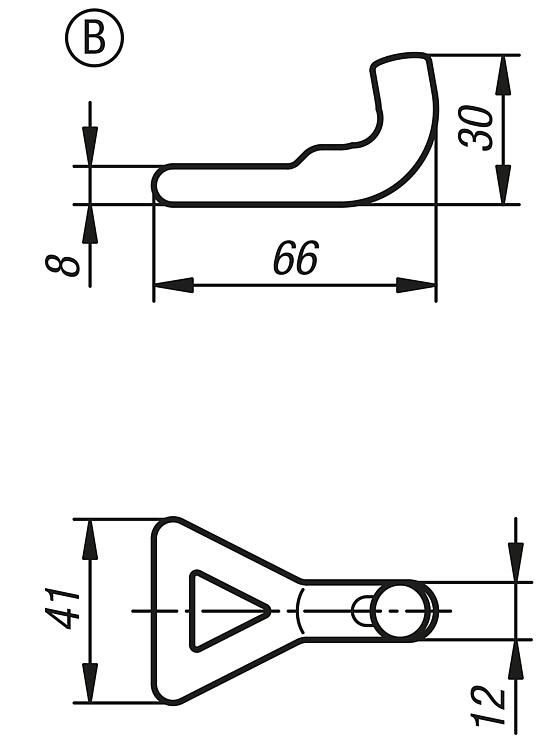

Catch plate Form B, for adjustable latch, heavy-duty version

 More information

Drawings
Catch plate Form B, for adjustable latch, heavy-duty version

Item selection/filter
Order No.

FormSurface finish
body		CADAcc.PriceOrder
05560-92000601Bbright 0.00 €
