05540Latches, steel or stainless steel, with adjustable metal plate... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel 1.4301. Version:Steel trivalent blue passivated.
Stainless steel bright.Note:Adjustable latches are secure locking systems for industrial applications. By exceeding the dead centre they resist vibration.
After the hook is engaged with the catch plate, the parts to be locked can be drawn together by up to 5 mm by pushing the lever down.
To compensate for tolerances or to create enough tension, the hook length can be adjusted using the M5 threaded spindle.
The latches can be screwed down or riveted.
Any catch plate can be combined with any latch.
Order required catch plate version separately.

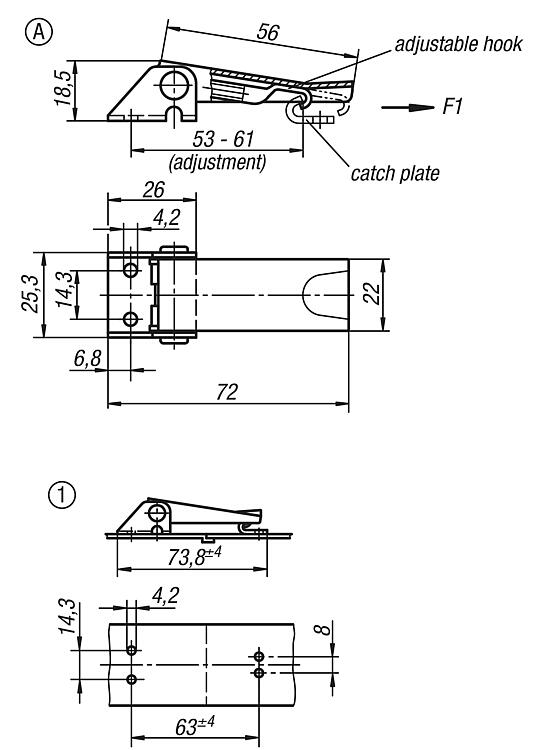

The retaining force F1 applies to the latch, not the catch plate.Accessory:Catch plate 05540.Drawing reference:Form A standard
Form B with safety catch

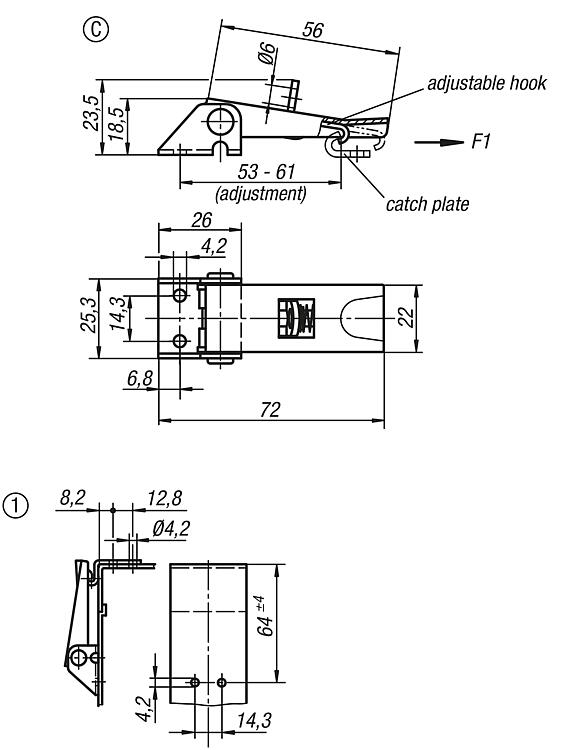

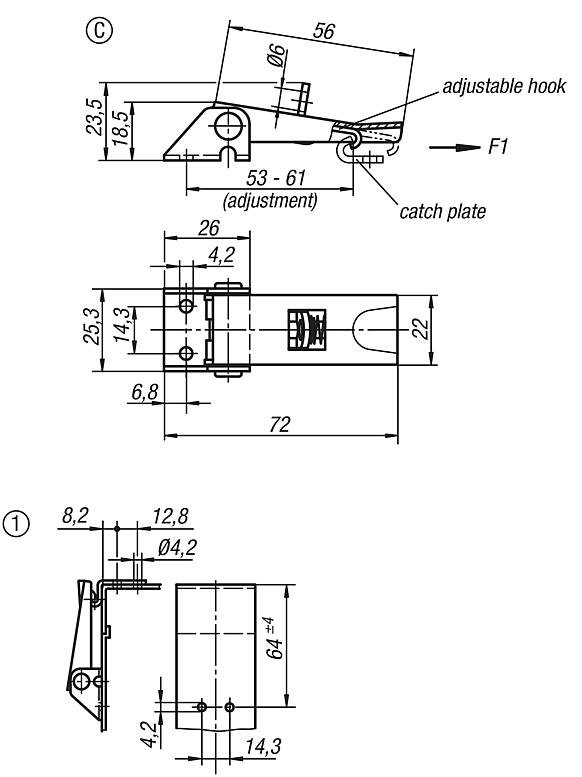

Form C with padlock bracket
1) Hole arrangements for assembly with catch plate DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

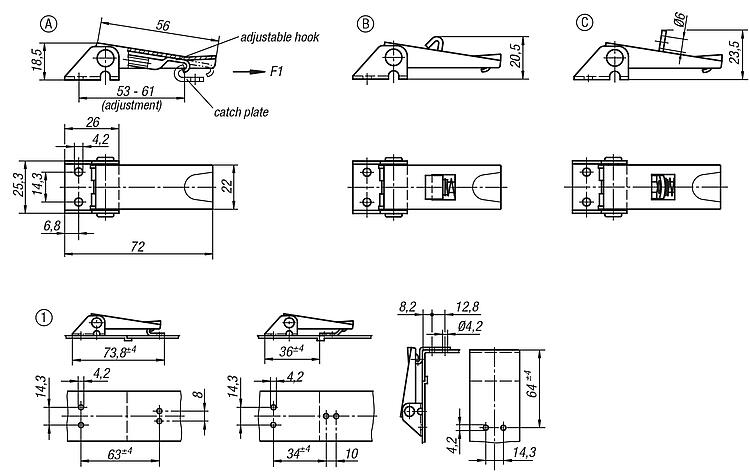

Drawings (total overview) |
Latches, steel or stainless steel, with adjustable metal plate hooks for up to 1000N, fastening holes visible, short version, Form A, standard |
More information |
| Order No. | Main
material | Form | Retaining
force
F1 N | CAD | Acc. | Price | Order |
|---|
| 05540-1420721 | steel | A | 1000 |  | | 0.00 € | | | 05540-1420722 | stainless steel | A | 1000 | | | 0.00 € | |
|
Latches, steel or stainless steel, with metal plate hooks for up to 1000N, fastening holes visible, short version, Form B, with lock |
More information |
| Order No. | Main
material | Form | Retaining
force
F1 N | CAD | Acc. | Price | Order |
|---|
| 05540-2420721 | steel | B | 1000 | | | 0.00 € | | | 05540-2420722 | stainless steel | B | 1000 | | | 0.00 € | |
|
Latches, steel or stainless steel, with adjustable metal plate hooks for up to 1000N, fastening holes visible, short version, Form C, with padlock bracket |
More information |
| Order No. | Main
material | Form | Retaining
force
F1 N | CAD | Acc. | Price | Order |
|---|
| 05540-3420721 | steel | C | 1000 | | | 0.00 € | | | 05540-3420722 | stainless steel | C | 1000 | | | 0.00 € | |
|
