        Profile half-cylinder lock for swivel grips

Item description/product images

DescriptionMaterial:Profile half-cylinder lock brass, zinc or plastic.Version:Nickel-plated zinc.Note:The profile half-cylinder lock can be used in combination with the swivel grip. The profile half-cylinder lock is mounted into the swivel grip and used to lock e.g. switch boxes. This cylinder lock is a half-cylinder lock, which means that it can only be locked and unlocked from one side (outside).

Form A: The Form A profile half-cylinder locks are supplied with two keys. These locks are individual-keyed, i.e. each lock can only be locked or unlocked using the two keys supplied.

Form B: The Form B profile half-cylinder locks are supplied with two keys. These locks have a single key system, i.e. they can all be opened using the same key (cylinder lock 1333).

Form C: Profile half-cylinder locks with 3 mm double lug actuation.

Form D: Profile half-cylinder locks with 5 mm double lug actuation.

Form E: Profile half-cylinder locks with 6 mm square actuation.

Form F: Profile half-cylinder locks with 7 mm square actuation.

Form G: Profile half-cylinder locks with 8 mm square actuation.

Form H: Profile half-cylinder locks with 6 mm triangular actuation.

Form I: Profile half-cylinder locks with 10 mm triangular actuation.

Form J: Profile half-cylinder locks with 7 mm triangular actuation.

Form K: Profile half-cylinder locks with 8 mm triangular actuation.

Form L: Profile half-cylinder locks with slot.

Form M: Moulded insert.

Form N: Moulded insert, self-engaging.Accessory:05600-01 Plastic swivel grip for profile cylinder lock.
05600-02 Plastic swivel grip.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05601 Profile half-cylinder lock for swivel grips

Technical information for Swivel Grips

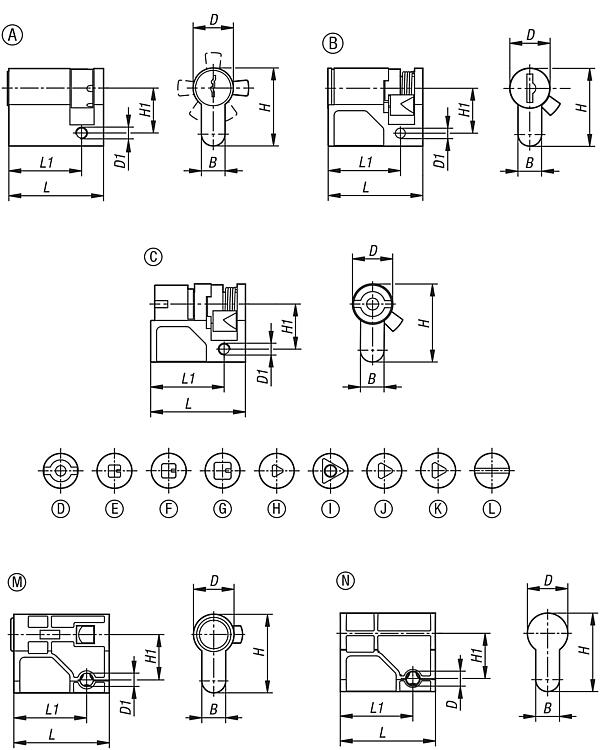

Drawings (total overview)

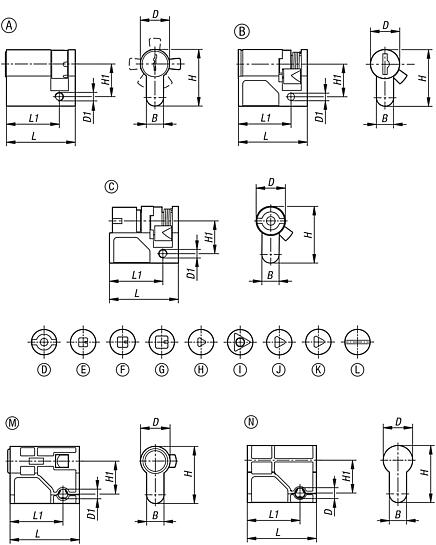

Profile half-cylinder locks for swivel grips, Form A

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order
05601-00	Profile half-cylinder lock	individual keys	A	brass	key	10	17	M5	33	19	40	31			0.00 €

Profile half-cylinder locks Form B for swivel grip

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order

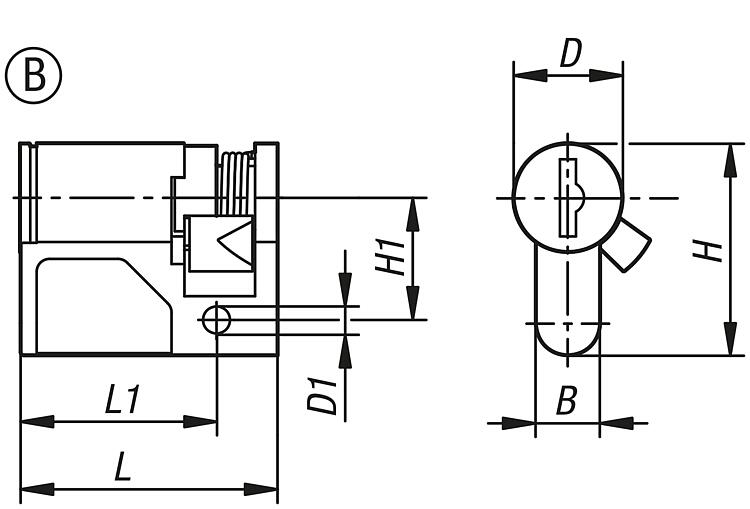

05601-01	Profile half-cylinder lock	single-key system	B	zinc	key	10	17	M5	33	19	40	30,5			0.00 €

Profile half-cylinder locks Form C for swivel grip

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order

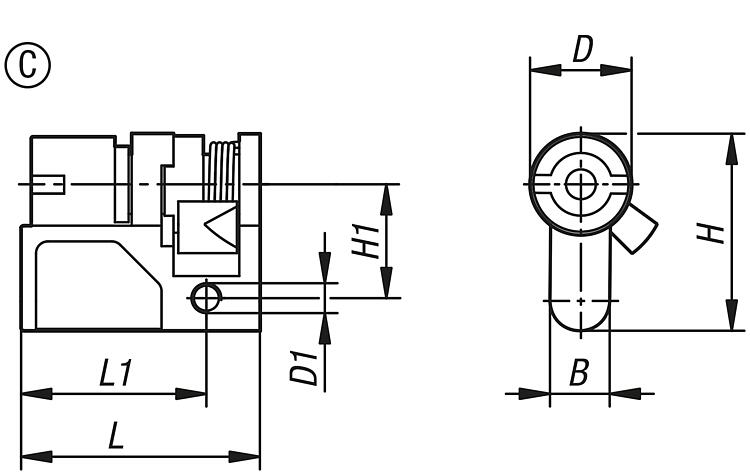

05601-02	Profile half-cylinder lock	Moulded insert lock	C	zinc	double lug 3 mm	10	17	M5	33	19	40	31			0.00 €

Profile half-cylinder locks for swivel grips, Form D

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order
05601-03	Profile half-cylinder lock	Moulded insert lock	D	zinc	double lug 5 mm	10	17	M5	33	19	40	31			0.00 €

Profile half-cylinder locks for swivel grips, Form E

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order
05601-04	Profile half-cylinder lock	Moulded insert lock	E	zinc	square 6 mm	10	17	M5	33	19	40	31			0.00 €

Profile half-cylinder lock Form F for swivel grip

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order
05601-05	Profile half-cylinder lock	Moulded insert lock	F	zinc	square 7 mm	10	17	M5	33	19	40	31			0.00 €

Profile half-cylinder locks for swivel grips, Form G

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order

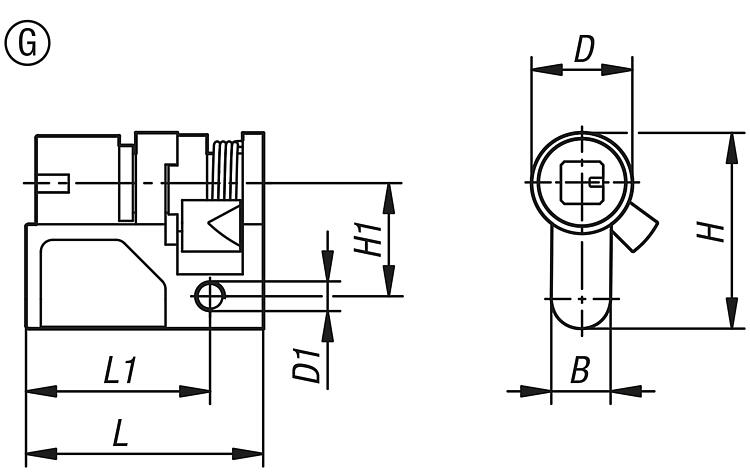

05601-06	Profile half-cylinder lock	Moulded insert lock	G	zinc	square 8 mm	10	17	M5	33	19	40	31			0.00 €

Profile half-cylinder locks for swivel grips, Form H

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order
05601-07	Profile half-cylinder lock	Moulded insert lock	H	zinc	Triangle 6 mm	10	17	M5	33	19	40	31			0.00 €

Profile half-cylinder locks Form I for swivel grip

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order

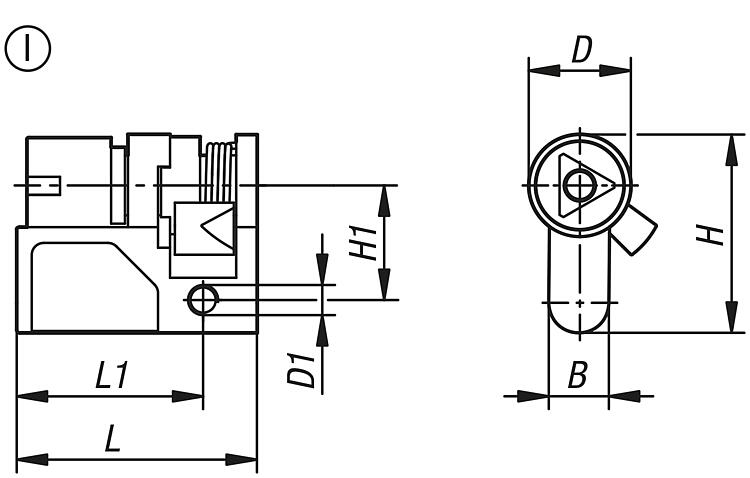

05601-08	Profile half-cylinder lock	Moulded insert lock	I	zinc	-	10	17	M5	33	19	40	31			0.00 €

Profile half-cylinder locks for swivel grips, Form J

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order
05601-09	Profile half-cylinder lock	Moulded insert lock	J	zinc	Triangle 7 mm	10	17	M5	33	19	40	31			0.00 €

Profile half-cylinder locks for swivel grips, Form K

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order

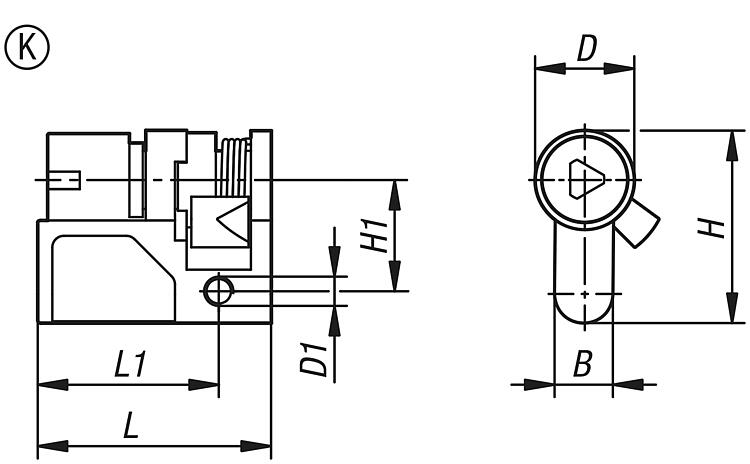

05601-10	Profile half-cylinder lock	Moulded insert lock	K	zinc	triangle 8 mm	10	17	M5	33	19	40	31			0.00 €

Profile half-cylinder locks Form L for swivel grip

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Form	Main material	Actuation	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order
05601-11	Profile half-cylinder lock	Moulded insert lock	L	zinc	slot	10	17	M5	33	19	40	31			0.00 €

Profile half-cylinder locks Form M for swivel grip

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Main material	Form	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order

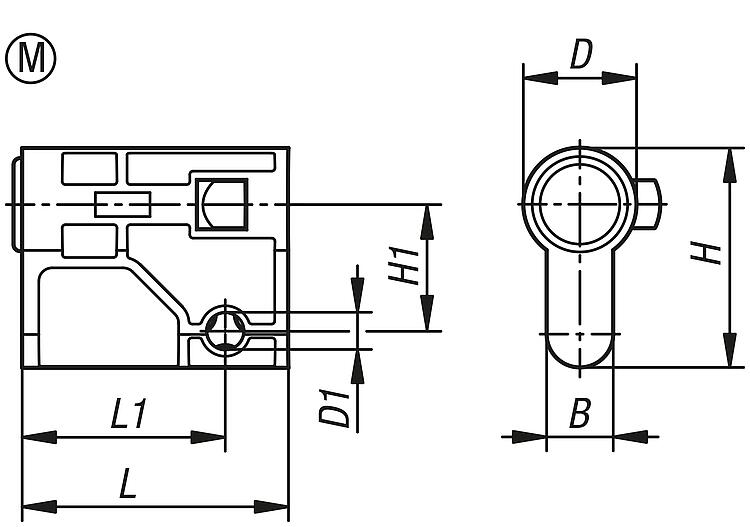

05601-12	Moulded insert.	Blind plugs	GF30	M	10	17	5,5	33	19	40	30,5			0.00 €

Profile half-cylinder locks Form N for swivel grip

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Main material	Form	B	D	D1	H	H1	L	L1	CAD	Acc.	Price	Order

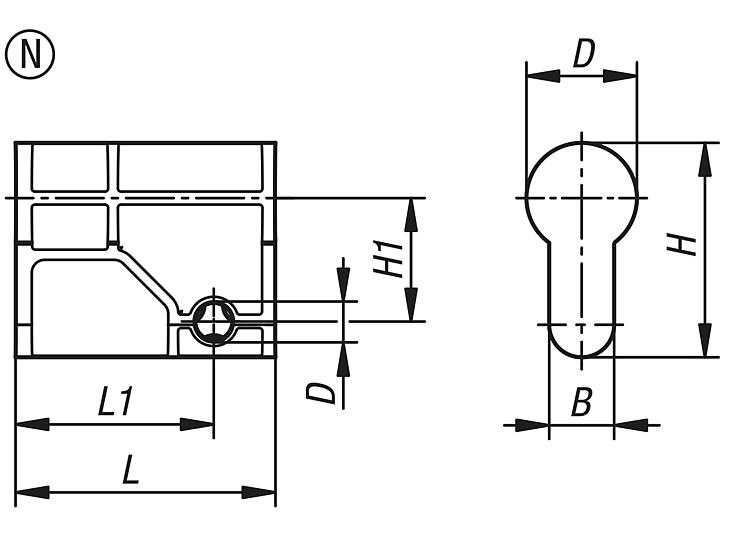

05601-13	Moulded insert.	Blind plugs	GF30	N	10	17	5,5	33	19	40	30,5			0.00 €

Other items in this category

Adapter, steel, stainless steel or zinc for rods

05601-05

Adapter, steel, stainless steel or zinc for rods

Adapter plastic or zinc for tongues

05601-10

Adapter plastic or zinc for tongues

Bushes for tongues, zinc

05601-11

Bushes for tongues, zinc
