        Round rods, steel for swivel grips
        Round rods, steel for swivel grip, Form F

Item description/product images

DescriptionMaterial:Round rods steel.Version:Steel electro zinc-plated.Note:These steel round rods are used in conjunction with swivel grips (05600-01 or 05600-02) to secure a switch cabinet. The rods can be used in a 2 or 3 point locking system.Accessory:05601-05 Steel, stainless steel or zinc adapter for rods
05601-20 Zinc attachment for round rods.
05601-13 Plastic guide for round rods.
05601-14 Plastic stop for round rods.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05601-12_F Round rods, steel for swivel grip, Form F

74,4 kB

Technical information about swivel grips

360 kB

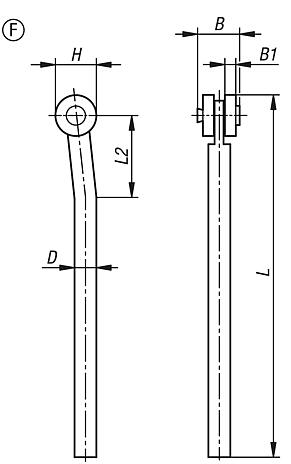

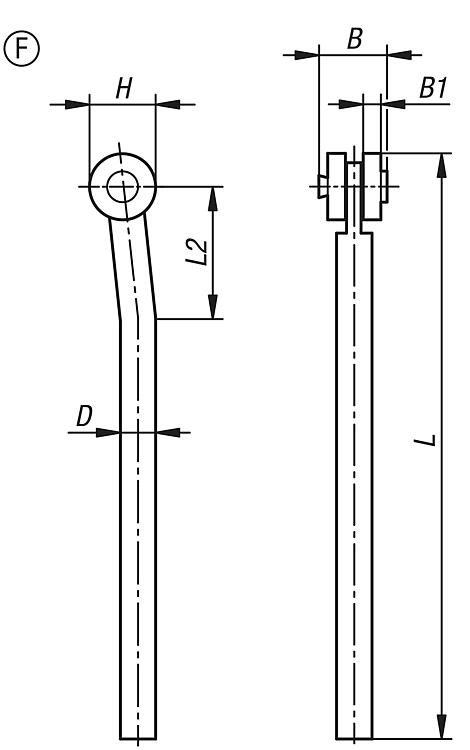

Drawings

Item selection/filter

Order No.	Form	Version 1	Form definition	B	D	L
05601-12-120400	F	without eyelet	with feed roller	16	8	400
05601-12-120500	F	without eyelet	with feed roller	16	8	500
05601-12-120600	F	without eyelet	with feed roller	16	8	600
05601-12-120700	F	without eyelet	with feed roller	16	8	700
05601-12-120800	F	without eyelet	with feed roller	16	8	800
05601-12-120900	F	without eyelet	with feed roller	16	8	900
05601-12-121000	F	without eyelet	with feed roller	16	8	1000
05601-12-121100	F	without eyelet	with feed roller	16	8	1100
05601-12-121200	F	without eyelet	with feed roller	16	8	1200
