        Round rods, steel for swivel grips
        Round rods, steel for swivel grips. Form E

Item description/product images

DescriptionMaterial:Round rods steel.Version:Steel electro zinc-plated.Note:These steel round rods are used in conjunction with swivel grips (05600-01 or 05600-02) to secure a switch cabinet. The rods can be used in a 2 or 3 point locking system.Accessory:05601-05 Steel, stainless steel or zinc adapter for rods
05601-20 Zinc attachment for round rods.
05601-13 Plastic guide for round rods.
05601-14 Plastic stop for round rods.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05601-12_E Round rods, steel for swivel grips. Form E

59 kB

Technical information for Swivel Grips

359 kB

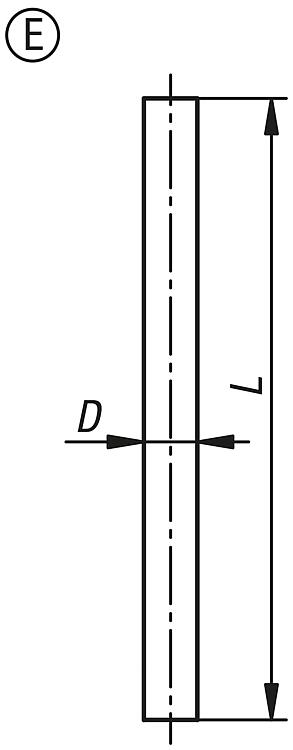

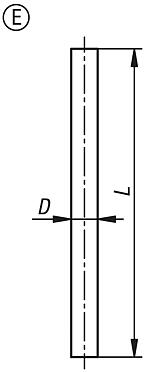

Drawings

Item selection/filter

Order No.	Form	Form definition	Version 1	B	D	L
05601-12-110400	E	with flat end	without eyelet	16	8	400
05601-12-110500	E	with flat end	without eyelet	16	8	500
05601-12-110600	E	with flat end	without eyelet	16	8	600
05601-12-110700	E	with flat end	without eyelet	16	8	700
05601-12-110800	E	with flat end	without eyelet	16	8	800
05601-12-110900	E	with flat end	without eyelet	16	8	900
05601-12-111000	E	with flat end	without eyelet	16	8	1000
05601-12-111100	E	with flat end	without eyelet	16	8	1100
05601-12-111200	E	with flat end	without eyelet	16	8	1200
