        Round rods, steel for swivel grips
        Round rods, steel for swivel grips. Form B

Item description/product images

DescriptionMaterial:Round rods steel.Version:Steel electro zinc-plated.Note:These steel round rods are used in conjunction with swivel grips (05600-01 or 05600-02) to secure a switch cabinet. The rods can be used in a 2 or 3 point locking system.Accessory:05601-05 Steel, stainless steel or zinc adapter for rods
05601-20 Zinc attachment for round rods.
05601-13 Plastic guide for round rods.
05601-14 Plastic stop for round rods.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05601-12_B Round rods, steel for swivel grips. Form B

63,9 kB

Technical information for Swivel Grips

359 kB

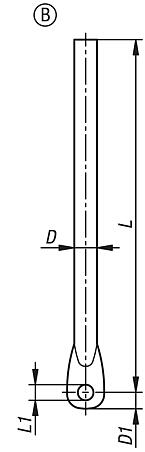

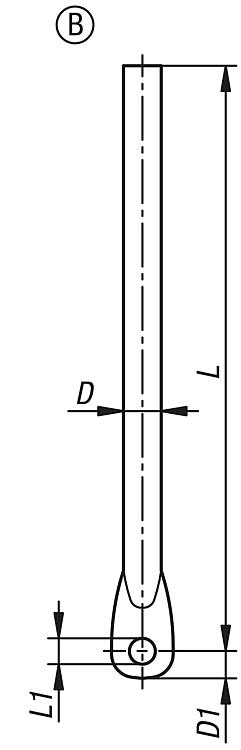

Drawings

Item selection/filter

Order No.	Form	Version 1	Form definition	B	D	D1	H1	L	L1
05601-12-010400	B	with eyelet	with flat end	16	8	6,5	4	400	6
05601-12-010500	B	with eyelet	with flat end	16	8	6,5	4	500	6
05601-12-010600	B	with eyelet	with flat end	16	8	6,5	4	600	6
05601-12-010700	B	with eyelet	with flat end	16	8	6,5	4	700	6
05601-12-010800	B	with eyelet	with flat end	16	8	6,5	4	800	6
05601-12-010900	B	with eyelet	with flat end	16	8	6,5	4	900	6
05601-12-011000	B	with eyelet	with flat end	16	8	6,5	4	1000	6
05601-12-011100	B	with eyelet	with flat end	16	8	6,5	4	1100	6
05601-12-011200	B	with eyelet	with flat end	16	8	6,5	4	1200	6
