Round rods, steel for swivel grips
 05601-12

Round rods, steel for swivel grips

 go back

Item description/product images
DescriptionMaterial:Round rods steel.Version:Steel electro zinc-plated.Note:These steel round rods are used in conjunction with swivel grips (05600-01 or 05600-02) to secure a switch cabinet. The rods can be used in a 2 or 3 point locking system.Accessory:05601-05 Steel, stainless steel or zinc adapter for rods
05601-20 Zinc attachment for round rods.
05601-13 Plastic guide for round rods.
05601-14 Plastic stop for round rods.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 05601-12 Round rods, steel for swivel grips 116 kB
Technical information for Swivel Grips 359 kB

Drawings (total overview)

Round rods, steel for swivel grips

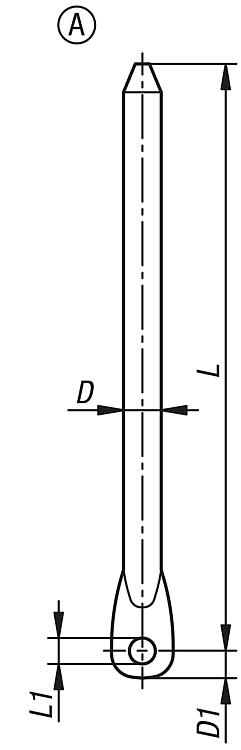

Round rods, steel for swivel grip, Form A

 More information

Drawings
Round rods, steel for swivel grip, Form A

Item selection/filter
Order No.FormVersion 1Form definitionB

DD1H1LL1CADAcc.PriceOrder
05601-12-000400Awith eyeletwith point1686,544006 0.00 €
05601-12-000500Awith eyeletwith point1686,545006 0.00 €
05601-12-000600Awith eyeletwith point1686,546006 0.00 €
05601-12-000700Awith eyeletwith point1686,547006 0.00 €
05601-12-000800Awith eyeletwith point1686,548006 0.00 €
05601-12-000900Awith eyeletwith point1686,549006 0.00 €
05601-12-001000Awith eyeletwith point1686,5410006 0.00 €
05601-12-001100Awith eyeletwith point1686,5411006 0.00 €
05601-12-001200Awith eyeletwith point1686,5412006 0.00 €

Round rods, steel for swivel grips. Form B

 More information

Drawings
Round rods, steel for swivel grips. Form B

Item selection/filter
Order No.FormVersion 1Form definitionB

DD1H1LL1CADAcc.PriceOrder
05601-12-010400Bwith eyeletwith flat end1686,544006 0.00 €
05601-12-010500Bwith eyeletwith flat end1686,545006 0.00 €
05601-12-010600Bwith eyeletwith flat end1686,546006 0.00 €
05601-12-010700Bwith eyeletwith flat end1686,547006 0.00 €
05601-12-010800Bwith eyeletwith flat end1686,548006 0.00 €
05601-12-010900Bwith eyeletwith flat end1686,549006 0.00 €
05601-12-011000Bwith eyeletwith flat end1686,5410006 0.00 €
05601-12-011100Bwith eyeletwith flat end1686,5411006 0.00 €
05601-12-011200Bwith eyeletwith flat end1686,5412006 0.00 €

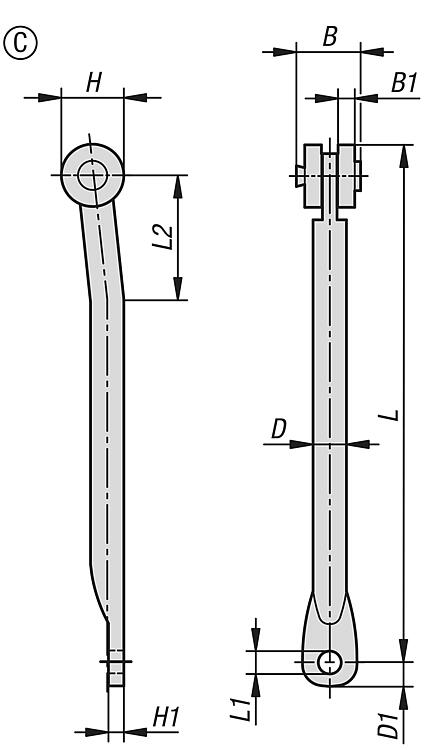

Round rods, steel for swivel grips. Form C

 More information

Drawings
Round rods, steel for swivel grips. Form C

Item selection/filter
Order No.FormVersion 1Form definitionB

DD1H1LL1CADAcc.PriceOrder
05601-12-020400Cwith eyeletwith feed roller1686,544006 0.00 €
05601-12-020500Cwith eyeletwith feed roller1686,545006 0.00 €
05601-12-020600Cwith eyeletwith feed roller1686,546006 0.00 €
05601-12-020700Cwith eyeletwith feed roller1686,547006 0.00 €
05601-12-020800Cwith eyeletwith feed roller1686,548006 0.00 €
05601-12-020900Cwith eyeletwith feed roller1686,549006 0.00 €
05601-12-021000Cwith eyeletwith feed roller1686,5410006 0.00 €
05601-12-021100Cwith eyeletwith feed roller1686,5411006 0.00 €
05601-12-021200Cwith eyeletwith feed roller1686,5412006 0.00 €

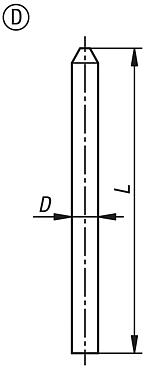

Round rods, steel for swivel grips. Form D

 More information

Drawings
Round rods, steel for swivel grips. Form D

Item selection/filter
Order No.FormVersion 1Form definitionB

DLCADAcc.PriceOrder
05601-12-100400Dwithout eyeletwith point168400 0.00 €
05601-12-100500Dwithout eyeletwith point168500 0.00 €
05601-12-100600Dwithout eyeletwith point168600 0.00 €
05601-12-100700Dwithout eyeletwith point168700 0.00 €
05601-12-100800Dwithout eyeletwith point168800 0.00 €
05601-12-100900Dwithout eyeletwith point168900 0.00 €
05601-12-101000Dwithout eyeletwith point1681000 0.00 €
05601-12-101100Dwithout eyeletwith point1681100 0.00 €
05601-12-101200Dwithout eyeletwith point1681200 0.00 €

Round rods, steel for swivel grips. Form E

 More information

Drawings
Round rods, steel for swivel grips. Form E

Item selection/filter
Order No.FormForm definitionVersion 1B

DLCADAcc.PriceOrder
05601-12-110400Ewith flat endwithout eyelet168400 0.00 €
05601-12-110500Ewith flat endwithout eyelet168500 0.00 €
05601-12-110600Ewith flat endwithout eyelet168600 0.00 €
05601-12-110700Ewith flat endwithout eyelet168700 0.00 €
05601-12-110800Ewith flat endwithout eyelet168800 0.00 €
05601-12-110900Ewith flat endwithout eyelet168900 0.00 €
05601-12-111000Ewith flat endwithout eyelet1681000 0.00 €
05601-12-111100Ewith flat endwithout eyelet1681100 0.00 €
05601-12-111200Ewith flat endwithout eyelet1681200 0.00 €

Round rods, steel for swivel grip, Form F

 More information

Drawings
Round rods, steel for swivel grip, Form F

Item selection/filter
Order No.FormVersion 1Form definitionB

DLCADAcc.PriceOrder
05601-12-120400Fwithout eyeletwith feed roller168400 0.00 €
05601-12-120500Fwithout eyeletwith feed roller168500 0.00 €
05601-12-120600Fwithout eyeletwith feed roller168600 0.00 €
05601-12-120700Fwithout eyeletwith feed roller168700 0.00 €
05601-12-120800Fwithout eyeletwith feed roller168800 0.00 €
05601-12-120900Fwithout eyeletwith feed roller168900 0.00 €
05601-12-121000Fwithout eyeletwith feed roller1681000 0.00 €
05601-12-121100Fwithout eyeletwith feed roller1681100 0.00 €
05601-12-121200Fwithout eyeletwith feed roller1681200 0.00 €
