05601-11Bushes for tongues, zinc |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Bushes zinc.Note:The bushes for tongues are used to connect swivel grips to tongues. With the aid of the bushes and in combination with the adapter for quarter-turn lock tongues 05601-10, the adapter for round rods 05601-05 or the bar lock for flat rods, a 1 or 3 point locking system can be created to secure e.g. switch cabinets.Accessory:05569 Steel tongue for quarter-turn locks.
05570 Steel tongue for quarter-turn locks.
05601-10 Plastic or zinc adapter for tongues.
05601-22 Plastic or zinc bar lock for flat bars.
05601-05 Steel, stainless steel or zinc adapter for rodsSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

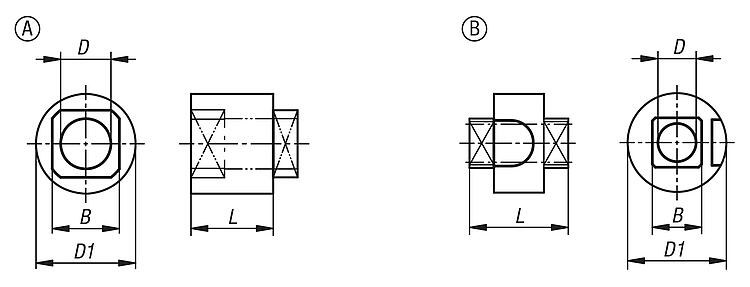

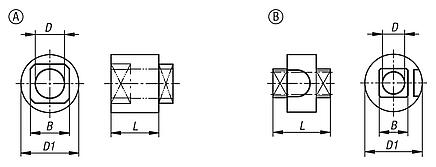

Drawings (total overview) |

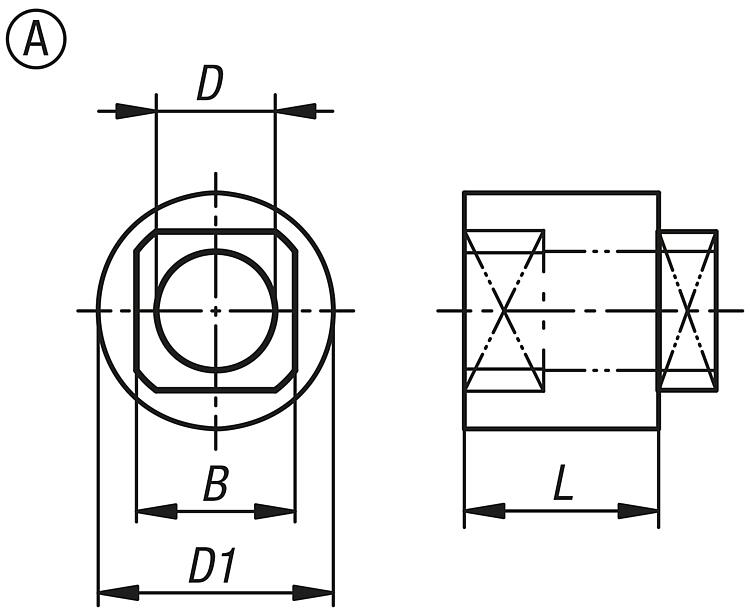

| Order No. | Form | B
| D | D1 | L | CAD | Acc. | Price | Order |
|---|
| 05601-11-0612 | A | 8 | 6 | 11,8 | 11 |  | | 0.00 € | | | 05601-11-0611 | A | 8 | 6 | 11,8 | 12,6 | | | 0.00 € | |
|

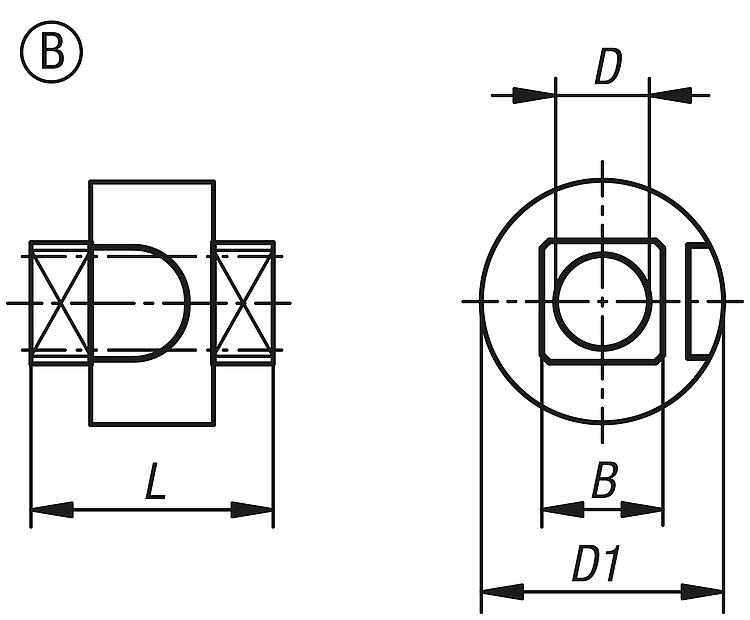

| Order No. | Form | B
| D | D1 | L | CAD | Acc. | Price | Order |
|---|
| 05601-11-0615 | B | 7,9 | 6,1 | 16 | 15 | | | 0.00 € | |
|
