05601-05Adapter, steel, stainless steel or zinc for rods |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Adapter, steel, stainless steel or zinc.Note:The adapters for rods are used to connect round and flat rods to swivel grip. The adapters and the combination of swivel grips and rods can be used to create a 2 or 3 point locking system that can be used to secure e.g. switch cabinets.Accessory:05569 Steel tongue for quarter-turn locks.
05570 Steel tongue for quarter-turn locks.
05601-05 Adapter for round rods, steel, stainless steel or zinc.
05601-12 Steel round rods for swivel grip.
05601-21 Steel flat bars for swivel grip.
05601-22 Plastic or zinc bar lock for flat bars. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

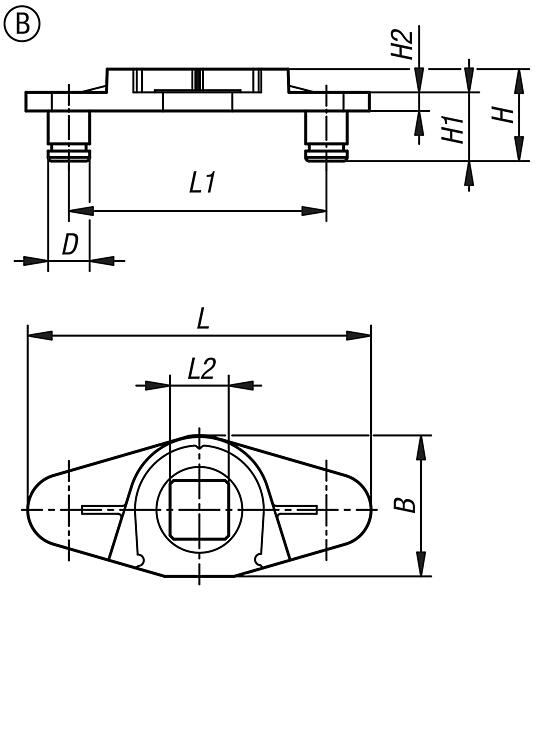

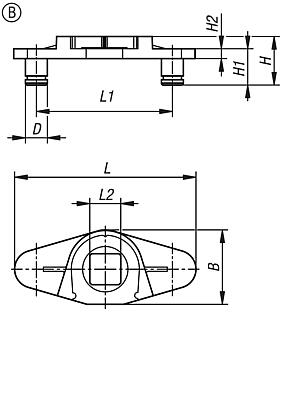

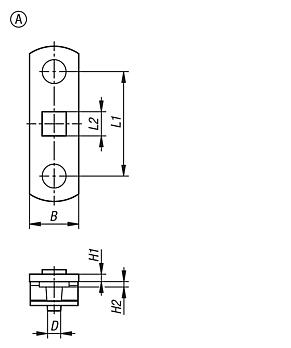

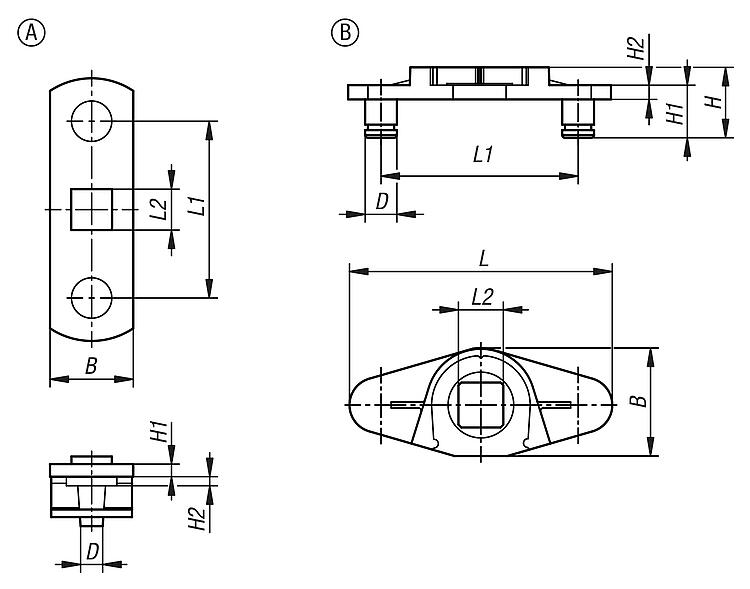

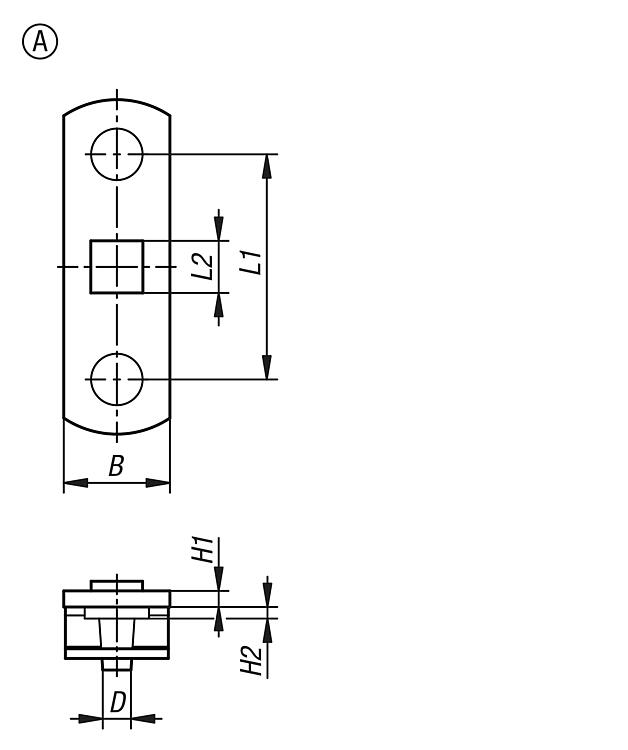

Drawings (total overview) |
| Order No. | Form | Main
material | Form definition | B
| D | H | H1 | H2 | L | L1 | L2 | CAD | Acc. | Price | Order |
|---|
| 05601-05-038 | A | steel | for 2-point system | 16,5 | 5 | - | 2,5 | 1,8 | - | 38 | 8,1 |  | | 0.00 € | | | 05601-05-035 | A | steel | for 2-point system | 16,5 | 5 | - | 2,5 | 1,8 | - | 35 | 8,1 | | | 0.00 € | | | 05601-05-135 | A | stainless steel | for 2-point system | 16,5 | 5 | - | 2,5 | 1,8 | - | 35 | 8,1 | | | 0.00 € | | | 05601-05-138 | A | stainless steel | for 2-point system | 16,5 | 5 | - | 2,5 | 1,8 | - | 38 | 8,1 | | | 0.00 € | |
|
| Order No. | Form | Main
material | Form definition | B
| D | H | H1 | H2 | L | L1 | L2 | CAD | Acc. | Price | Order |
|---|
| 05601-05-236 | B | zinc | for 3-point system | 20 | 5,8 | 13 | 2,6 | 10 | 48 | 36 | 8,2 | | | 0.00 € | |
|
