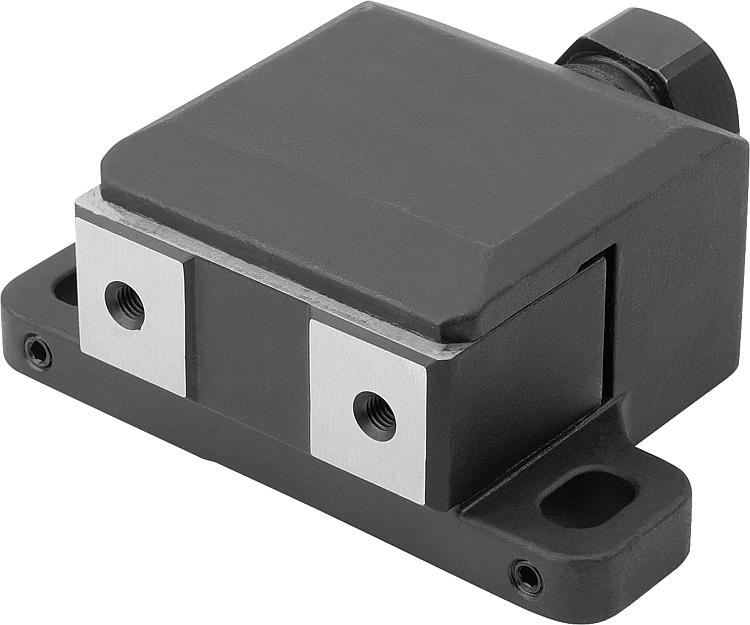

Side clamps, Form A

 go back

Item description/product images
DescriptionMaterial:Body QT steel.
Tension lever QT steel.
Version:Body black oxidised.
Clamping face ground.
Note:Tighten the setscrew to prevent the side clamp sliding back during the clamping process. (Form A)Advantages:- High clamping force
- Ground clamping face
- Pull-down force prevents the workpiece liftingDrawing reference:
1) Setscrew
2) Cap screw
3) Grub screw
4) Loosened position
5) Clamping travel
6 )Clamping start position
7) Clamped position
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 04579_A Side clamps, Form A 214 kB

Drawings

Side clamps, Form A

Item selection/filter
Order No.FormBB1B2B3B4D

D1D2HH1H2H3H4H5CADAcc.PriceOrder
04579-1400A10080602040M58,6M5x8403322222210 0.00 €
04579-0900A7560451530M46,6M4x632271818188 0.00 €
Order No.FormLL1L2L3L4L5SWSW1TTravel
S		Clamping
force
kN		Tightening
torque
max. Nm		CADAcc.PriceOrder
04579-1400A691363261942410841450 0.00 €
04579-0900A5210482014319863925 0.00 €
