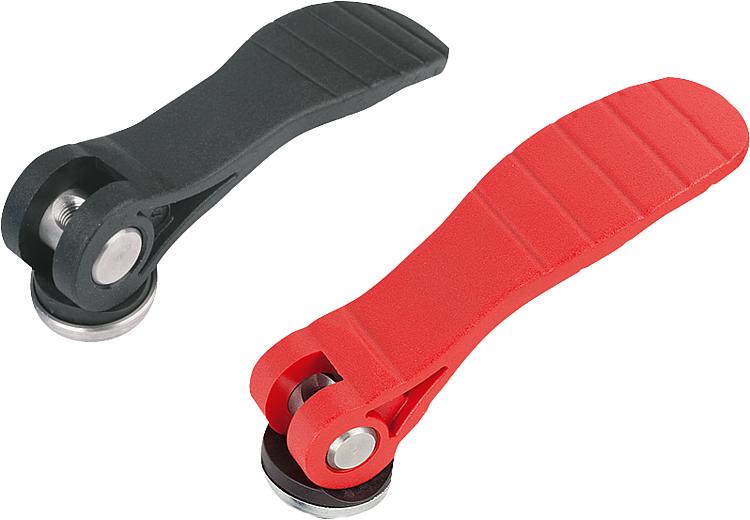

Item description/product images

DescriptionMaterial:

Handles and thrust washer plastic PA 66 fibreglass reinforced.
Hinge pin stainless steel 1.4305.
Washer steel grade 5.8, or stainless steel 1.4305.

Version:Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud and washer trivalent blue-passivated or bright stainless steel.
Note:Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 04232_IG Cam levers, plastic with internal thread, plastic thrust washer 160 kB

Drawings

Cam levers, plastic with internal thread, plastic thrust washer

Item selection/filter

Order No.Component
material
Main
colour
DD1D2BB1HH1AA1Travel
S
Clamping
force
F (kN)
Hand
force
FH N
CADAcc.PriceOrder
04232-1521105steelblackM518,1922161423,471,579,61,152,5125 5.62 €
04232-1521106steelblackM618,1922161423,471,579,61,152,5125 5.62 €
04232-2521108steelblackM827,1113324,216,227,71001101,55170 6.59 €
04232-1531105stainless steelblackM518,1922161423,471,579,61,152,5125 8.50 €
04232-1531106stainless steelblackM618,1922161423,471,579,61,152,5125 8.50 €
04232-2531108stainless steelblackM827,1113324,216,227,71001101,55170 9.88 €
04232-15218405steelred RAL 3020M518,1922161423,471,579,61,152,5125 5.62 €
04232-15218406steelred RAL 3020M618,1922161423,471,579,61,152,5125 5.62 €
04232-25218408steelred RAL 3020M827,1113324,216,227,71001101,55170 6.59 €
04232-15318405stainless steelred RAL 3020M518,1922161423,471,579,61,152,5125 8.50 €
04232-15318406stainless steelred RAL 3020M618,1922161423,471,579,61,152,5125 8.50 €
04232-25318408stainless steelred RAL 3020M827,1113324,216,227,71001101,55170 9.88 €
