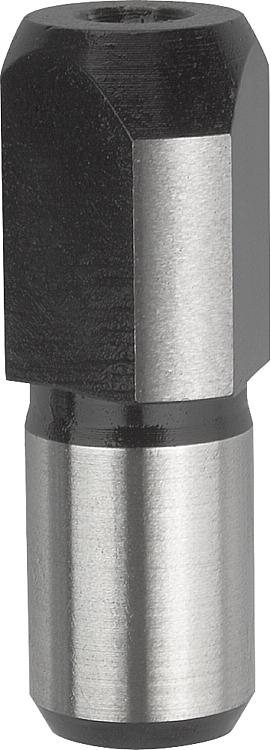

Locating pins, removable, Form D
 03106_D

Locating pins, removable, Form D

 go back

Item description/product images
DescriptionMaterial:Tool steel.Version:Hardened and ground (HRC 55-60).Note:Locating pins can be easily removed with an extractor.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 03106_D Locating pins, removable, Form D 135 kB

Drawings

Locating pins, removable, Form D

Overview of items (compressed)

 Item selection/filter
Order No.FormDD1D3L1L2L4BCADAcc.PriceOrder
03106-102D107M3111133 0.00 €
03106-122D128M5131243,5 0.00 €
03106-162D1612M518144,55 0.00 €
03106-202D2014M5221556 0.00 €
03106-222D2216M5221757 0.00 €
03106-252D2518M5251758 0.00 €
