        Self-aligning pads self-righting

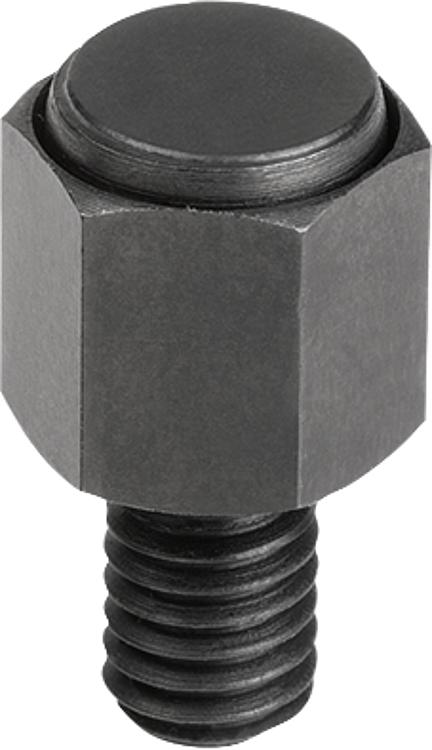

        Self-aligning pads, self-righting, Form C, with external thread, flattened ball, smooth

Item description/product images

DescriptionMaterial:Ball steel, ball seat high-carbon steel.Version:Ball hardened, ball seat phosphated.Note:The self-aligning pads serve as stops, rests and thrust pads in fixture construction.
The seating face returns to the start position when the load is removed.

Ball secured against rotation.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02081_C Self-aligning pads, self-righting, Form C, with external thread, flattened ball, smooth

131 kB

Drawings

Item selection/filter

Order No.	Form	B	D2	D3	H	E	SW1	Ball-Ø	Load rating max. kN (static load only)
02081-106	C	9	M6	7	13	11,5	10	9	8
02081-108	C	12	M8	9,5	18	15	13	12	16
02081-110	C	15	M10	14	25	21,9	19	17	32
02081-112	C	18	M12	20	36	31,2	27	25	64
02081-116	C	24	M16	22	40	34,6	30	28	90
