Item description/product images

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.
Contact faces case-hardened.
Note:These positioning feet are used as supports for rough and machined parts. They can also be used as stops and thrust pads in fixtures and toolmaking.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 02041_D Positioning feet, Form D serrated face tempered 149 kB

Drawings

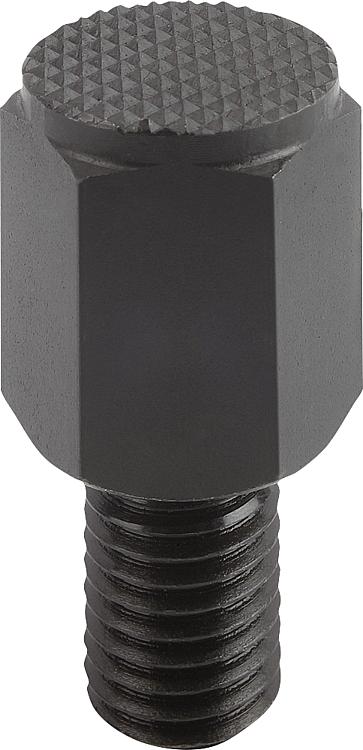

Positioning feet, Form D serrated face tempered

Item selection/filter

Order No.FormBDGHSWCADAcc.PriceOrder
02041-406010D1110M61010 0.00 €
02041-406020D1110M62010 0.00 €
02041-408015D1313M81513 0.00 €
02041-408030D1313M83013 0.00 €
02041-410020D1617M102017 0.00 €
02041-410040D1617M104017 0.00 €
02041-412025D2019M122519 0.00 €
02041-412050D2019M125019 0.00 €
02041-416030D2427M163027 0.00 €
02041-416060D2427M166027 0.00 €
02041-420040D2932M204032 0.00 €
02041-420080D2932M208032 0.00 €
